3. A mass oscillates on a spring with simple harmonic motion. The plot below shows its...

Question

Question

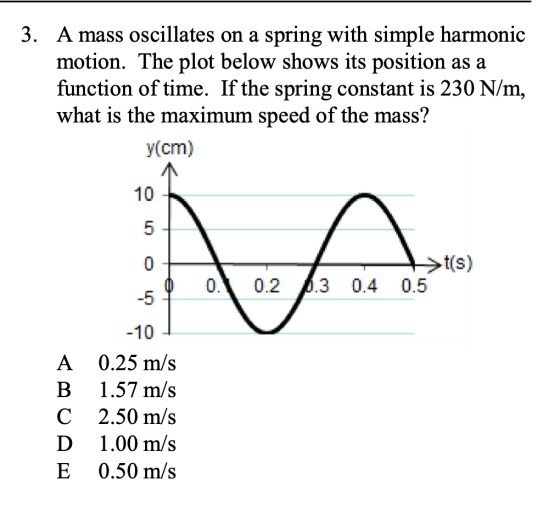

3. A mass oscillates on a spring with simple harmonic motion. The plot below shows its position as a function of time. If the

science physics

Answer 1

Answer #1

maximom Velec.ty Az Time pemod o.4 Sec TJ we 2T ts. Toredte GptmB

Answer 2

Similar Homework Help Questions

A 0.50 kg mass oscillates in simple harmonic motion on a spring with a spring constant...

A 0.50 kg mass oscillates in simple harmonic motion on a spring with a spring constant of 210 N/m . Part A What is the period of the oscillation? Part B What is the frequency of the oscillation?
Energy in simple harmonic motion A 2.90 kg object oscillates with simple harmonic motion on a...

Energy in simple harmonic motion A 2.90 kg object oscillates with simple harmonic motion on a spring of force constant 600 N/m. The maximum speed is 0.800 m/s. A) What is the total energy of the object and the spring? B) What is the maximum amplitude of the oscillation?
During simple harmonic motion, the position, x, in meters, of the mass in a spring-mass system,...

During simple harmonic motion, the position, x, in meters, of the mass in a spring-mass system, changes according to the equation: x = (0.25) cos (0.523 t). a) Find the period. T_s of this motion. b) Calculate the time when the position of the mass is +0.2 m from equilibrium.

Exercise 11: Simple Harmonic Motion 1. A spring-mass system oscillates with a frequency of 10 Hz...

Exercise 11: Simple Harmonic Motion 1. A spring-mass system oscillates with a frequency of 10 Hz when the mass is equal to 0.50 kg. What is the stiffness of the spring? With the same spring, what would the mass need to be to double the frequency? 2. A pendulum swings with a period of 1.50 seconds when the acceleration due to gravity is equal to 9.80 m/s? What is the length of the pendulum? How would this period change if...
A 55 kg block oscillates in simple harmonic motion on the end of a spring with...

A 55 kg block oscillates in simple harmonic motion on the end of a spring with a spring constant of 1500N/m according to xmcos (ωt+ φ). What is the shortest time it takes the block to move from position +0.800 xm to a position: +0.600 xm?
An object with mass 3.0 kg is executing simple harmonic motion, attached to a spring with...

An object with mass 3.0 kg is executing simple harmonic motion, attached to a spring with spring constant 290 N/m . When the object is 0.016 m from its equilibrium position, it is moving with a speed of 0.50 m/s . a) Calculate the amplitude of the motion. Express your answer to two significant figures and include the appropriate units. b) Calculate the maximum speed attained by the object. Express your answer to two significant figures and include the appropriate...

A system consisting of a block and a horizontally-mounted spring oscillates with simple harmonic motion. The...

A system consisting of a block and a horizontally-mounted spring oscillates with simple harmonic motion. The position of the block relative to its equilibrium varies according to the following equation: x open parentheses t close parentheses equals 2 sin open parentheses pi over 2 t plus pi over 4 close parentheses At what time (in s) after t = 0 s is the potential energy of the system first at a maximum?
An object on a spring with spring constant k = 5 N/m oscillates in simple harmonic...

An object on a spring with spring constant k = 5 N/m oscillates in simple harmonic motion with amplitude 0.4 m. What is the total energy in this system?
An object with mass 3.9 kg is executing simple harmonic motoon, attached to a spring with...

An object with mass 3.9 kg is executing simple harmonic motoon, attached to a spring with spring constant 250 N/m. When the object is 0.018 m from its equilibrium position, it is moving with a speed of 0.50 m/s. A) Calculate the amplitude of the motion B) Calculate the maximum speed attained by the object Thank you! An object with mass 3.9 kg is executing simple harmonic motion, attached to a spring with spring constant 250 N/m. When the object...

An object with mass 2.3 kg is executing simple harmonic motion, attached to a spring with...

An object with mass 2.3 kg is executing simple harmonic motion, attached to a spring with spring constant 270 N/m . When the object is 0.015 mfrom its equilibrium position, it is moving with a speed of 0.65 m/s . A) Calculate the amplitude of the motion. B) Calculate the maximum speed attained by the object.
