| Draw a circuit diagram for the circuit of (Figure 1).

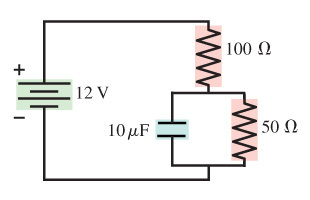

You may want to review (Page 728) . Figure1 of 1A circuit is shown in the figure. A 12-volt battery is connected by wires to two resistors and a capacitor. The positive terminal of the battery is connected to a 50-ohm resistor, and the negative terminal of the battery is connected to one terminal of a 10-microfarad capacitor. Two wires are connected to the other terminal of a 50-ohm resistor, one of which is connected to other terminal of the capacitor and the other one is connected to a 100-ohm resistor. A 100-ohm resistor is connected to the junction between the negative terminal of the battery and the capacitor.
|
Part A Choose the correct diagram. Choose the correct diagram.
SubmitRequest Answer Provide FeedbackNext |


Please rate
if any mistake in this answer please comment i will clarify your
doubt . thank you
Draw a circuit diagram for the circuit of (Figure 1). You may want to review (Page...
Draw a circuit diagram for the circuit of (Figure 1).
Figure
1 of 1A circuit is shown in the figure. A 9-volt battery is
connected by wires to different resistors. The positive terminal of
the battery is connected to a 50-ohm resistor by one wire and to a
75-ohm resistor by another wire. A 50-ohm resistor is connected
directly to the 100-ohm resistor, which is connected directly to
the negative terminal of the battery. A 75-ohm resistor is
connected by...
1. Two 50 Ω resistors are in series in a circuit with a 10 V battery. The change in voltage, in the direction of the current, across either resistor is ___ V. 2. A 40 μF capacitor and a 80 μF capacitor are in series in a circuit with a 10 V battery. The voltage drop, in the direction of the current, across the 40 μF capacitor is ___ V. 3. A 40 μF capacitor and a 100 Ω resistor...
1. Two 50 Ω resistors are in series in a circuit with a 10 V battery. The change in voltage, in the direction of the current, across either resistor is ___ V. Hint: Can you see why the voltage drop in the direction of the current is negative? 2. A 40 μF capacitor and a 80 μF capacitor are in series in a circuit with a 10 V battery. The voltage drop, in the direction of the current, across the...
Find the Thévenin equivalent with respect to the terminals a,b for the circuit in (Figure 1) if v = 360 V, i = 4 A. Figure 1 of 1The figure shows a rectangular circuit. A vertical cross wire connects the top and bottom wires. An 8-ohm resistor is located on this cross wire. A 40-ohm and a 10-ohm resistors are located on the top wire to the left and right from the cross wire, respectively. Independent voltage source v, with...
Base your answer to the question on the information and diagram below. A 20.-ohm resistor and a 30.-ohm resistor are connected in parallel to a 12- volt battery as shown. An ammeter is connected as shown. 12V >20.2 30. What is the equivalent resistance of the circuit? 10. 2. 1202 252 + 50.
The circuit of (Figure 1) is a square 20 cm on a side. The magnetic field increases steadily from 0 T to 0.80 T in 11 ms . Figure1 of 1The figure shows a circuit in the magnetic field directed out of the page. The circuit is a square with a 20-ohm resistor in the upper side and the 9.0-volt battery in the left side. The battery has positive terminal at the top and negative terminal at the bottom. Part...
If an 80 mH inductor is in series with a 220 Ω resistor in a circuit with a source frequency of 1000 Hz, what will be the phase angle (rounded) of the current with respect to the voltage? A. 48° B. 66° C. 50° D. 70° A 10 mH inductor and a 100 Ω resistor are connected in parallel. The circuit is supplied with 24 VAC at 2000 Hz. What is the total circuit current (rounded)? A. 0.29 A B....
In the circuit shown in the following figure(Figure 1) the
capacitor has capacitance 24 μF and is initially uncharged. The
resistor R0 has resistance 11 Ω . An emf of 86.0 V is added in
series with the capacitor and the resistor. The emf is placed
between the capacitor and the switch, with the positive terminal of
the emf adjacent to the capacitor. The small circuit is not
connected in any way to the large one. The wire of the...
Consider a series RC circuit as in the figure below for
which R = 2.40 MΩ, C = 6.80 μF, and
= 32.0 V.
The circuit is a rectangular loop. The bottom side of the loop
has a battery labeled emf ℰ, oriented with the positive
terminal to the right of the negative terminal. The right side has
a resistor R. The top side contains an open switch S. The
left side has a capacitor C.
(a) Find the time...
For the following questions, draw the circuit and solve for the unknown quantity requested. It is suggested that you include a small solid circle to identify each point where you can specify the local voltage. voltage. 1. A circuit consists of a 3.0 V battery and two resistors connected in series with it. The first resistor has a resistance of 10 Ohms, and the second has a resistance of 15 Ohms. Find the current in the circuit. A: 0.12 A...
