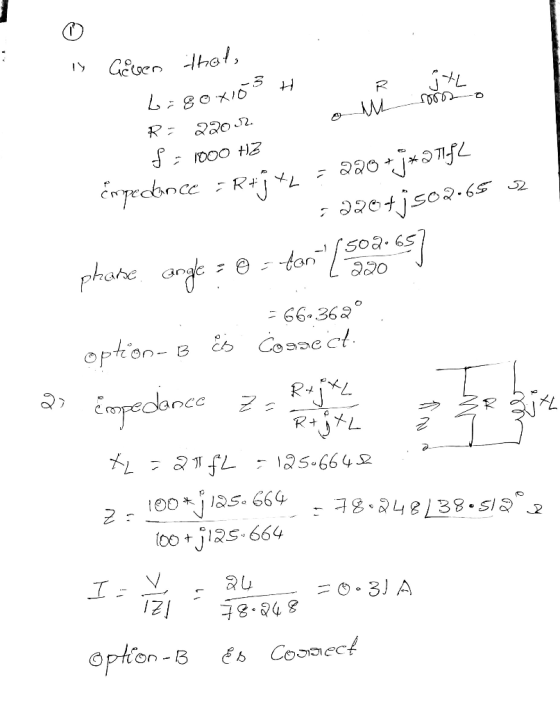

If an 80 mH inductor is in series with a 220 Ω resistor in a circuit...
Homework Answers
Add Answer to:
If an 80 mH inductor is in series with a 220 Ω resistor in a
circuit...
A series RLC circuit consists of a 57.0 Ω resistor, a 5.10 mH inductor, and a...
A series RLC circuit consists of a 57.0 Ω resistor, a 5.10 mH inductor, and a 310 nF capacitor. It is connected to an oscillator with a peak voltage of 4.50 V . Part A Determine the impedance at frequency 3000 Hz. Part B Determine the peak current at frequency 3000 Hz. Part C Determine phase angle at frequency 3000 Hz.
A series RLC circuit consists of a 52.0 Ω resistor, a 2.60 mH inductor, and a...
A series RLC circuit consists of a 52.0 Ω resistor, a 2.60 mH inductor, and a 610 nF capacitor. It is connected to an oscillator with a peak voltage of 4.60 V . a. Determine the impedance at frequency 3000 Hz. b. Determine the peak current at frequency 3000 Hz. c. Determine the impedance at frequency 4000 Hz. d. Determine the peak current at frequency 4000 Hz. e. Determine phase angle at frequency 4000 Hz.
What is the inductive reactance of a 0.5 H inductor connected with a 1000 Ω resistor...
What is the inductive reactance of a 0.5 H inductor connected with a 1000 Ω resistor in an AC circuit supplied with 48 VAC at 100 Hz? A. 150.72 Ω B. 500 Ω C. 314 Ω D. 0.31 Ω Which of the following denotes inductive reactance? A. R B. H C. X L D. Z A 10 mH inductor and a 100 Ω resistor are connected in parallel. The circuit is supplied with 24 VAC at 2000 Hz. What is...
What is the inductive reactance of a 2 mH inductor at a frequency of 1000 Hz?...
What is the inductive reactance of a 2 mH inductor at a frequency of 1000 Hz? A. 68.3 Ω B. 12.56 Ω C. 204.4 Ω D. 20.25 Ω What is the inductive reactance of a 2 H inductor in a 60 Hz, AC circuit? A. 0.08 Ω B. 753.60 Ω C. 948 Ω D. 120 Ω A circuit contains a 60 mH and a 40 mH inductor connected in parallel. The circuit has a source voltage of 100 VAC and...

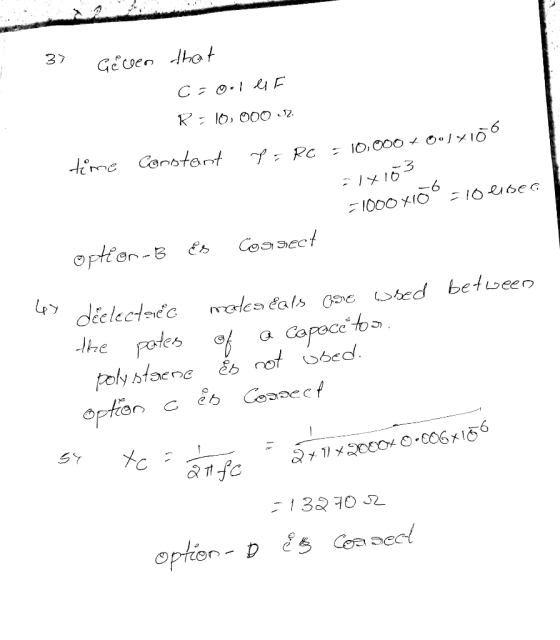

5.A series RC circuit contains a 0.01 microfarad capacitor and a 2,000 ohm resistor, and has...
5.A series RC circuit contains a 0.01 microfarad capacitor and a 2,000 ohm resistor, and has a frequency of 500 HZ. What is the impedance of the circuit? A. 90,285 ohms B. 52,285 ohms C. 42,164 ohms D. 31,910 ohms 1. A series RC circuit has a source voltage of 24 VAC and an impedance of 252 ohms. What is the circuit current? A. 95 A B. 0.095 A C. 9.5 A D. 0.95 A 2. A 0.015 micro arad...
A series AC circuit contains a resistor, an inductor of 200 mH, a capacitor of 4.30...
A series AC circuit contains a resistor, an inductor of 200 mH, a capacitor of 4.30 µF, and a source with ΔVmax = 240 V operating at 50.0 Hz. The maximum current in the circuit is 180 mA. (a) Calculate the inductive reactance. Ω (b) Calculate the capacitive reactance. Ω (c) Calculate the impedance. kΩ (d) Calculate the resistance in the circuit. kΩ (e) Calculate the phase angle between the current and the source voltage. °
A series AC circuit contains a resistor, an inductor of 220 mH, a capacitor of 4.20...
A series AC circuit contains a resistor, an inductor of 220 mH, a capacitor of 4.20 ur, and a source with ΔⅤmax-240 V operating at 50.0 Hz. The maximum current in the circuit is 170 mA. (a) Calculate the inductive reactance 69.11 (b) Calculate the capacitive reactance 757.88 (c) Calculate the impedance 141 (d) Calculate the resistance in the circuit. 6.887 The impedance is a function of the resistance and the impedances of the inductor and capacitor. kΩ (e) Calculate...
A series AC circuit contains a resistor, an Inductor of 220 mH, a capacitor of 4.80...
A series AC circuit contains a resistor, an Inductor of 220 mH, a capacitor of 4.80 f, and a generator with Av max - 240 V operating at 50.0 Hz. The maximum current in the circuit is 130 mA (a) Calculate the inductive reactance (b) Calculate the capacitive reactance (c) Calculate the impedance kn (d) Calculate the resistance in the circuit kn (e) Calculate the phase angle between the current and the generator voltage
A series RCL circuit contains a 25.8-Ω resistor, a 1.02-μF capacitor, and a 2.72-mH inductor. When...
A series RCL circuit contains a 25.8-Ω resistor, a 1.02-μF capacitor, and a 2.72-mH inductor. When the frequency is 2800 Hz, what is the power factor of the circuit?
An RLC series circuit has a 190 Ω resistor and a 25.0 mH inductor. At 7900...
An RLC series circuit has a 190 Ω resistor and a 25.0 mH inductor. At 7900 Hz, the phase angle is 45.0°. (a) What is the impedance (in ohms)? Ω (b) Find the minimum possible capacitance (in nanofarads) of the circuit. nF (c) If Vrms = 408 V is applied, what is the average power (in watts) supplied? W
A series AC circuit contains a resistor, an inductor of 220 mH, a capacitor of 4.20 ur, and a source with ΔⅤmax-240 V operating at 50.0 Hz. The maximum current in the circuit is 170 mA. (a) Calculate the inductive reactance 69.11 (b) Calculate the capacitive reactance 757.88 (c) Calculate the impedance 141 (d) Calculate the resistance in the circuit. 6.887 The impedance is a function of the resistance and the impedances of the inductor and capacitor. kΩ (e) Calculate...
A series AC circuit contains a resistor, an Inductor of 220 mH, a capacitor of 4.80 f, and a generator with Av max - 240 V operating at 50.0 Hz. The maximum current in the circuit is 130 mA (a) Calculate the inductive reactance (b) Calculate the capacitive reactance (c) Calculate the impedance kn (d) Calculate the resistance in the circuit kn (e) Calculate the phase angle between the current and the generator voltage
