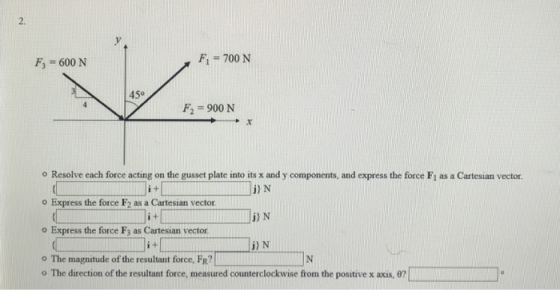

Show all workout please. 2. v . F3 600 N F, 700 N 450 F2 -900...

Question

Question

Show all workout please.

science physics

Answer 1

Answer #1

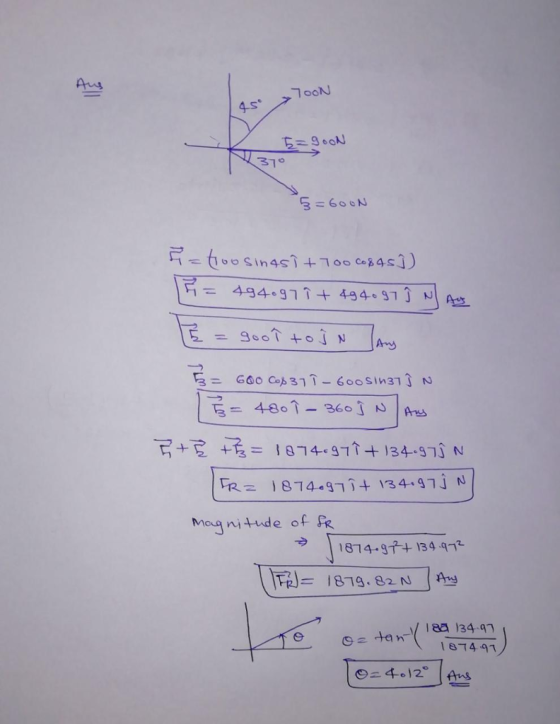

31 3= 600N p1 = 434-3714 434-31 Jyt mag nitude of | 1874-3구+1344구 412 Ans

Answer 2

Similar Homework Help Questions

Show all workout please. F,-260 N 45° F2 100 N o x direction component of Fi,...

Show all workout please. F,-260 N 45° F2 100 N o x direction component of Fi, Fix? y direction component of Fi. Fi,y? o x direction component of F2, Fx y direction component of F2. F2y? o The magnitude of the resultant force, FR o The direction of the resultant force, measured counterclockwise from the positive x axis,
Suppose that F1 = 400 N. Part A Determine the magnitude of the resultant F'=F1 + F2.

Suppose that F1 = 400 N.Part A Determine the magnitude of the resultant F'=F1 + F2. Part B Determine the direction of the resultant force F'=F1 + F2, measured counterclockwise from the positive x axis. Part C Determine the magnitude of the resultant force FR = F1 + F2 + F3. Part D Determine the direction of the resultant force FR = F1 + F2 + F3. measured counterclockwise from the positive x axis.
Problem 8 (will be used as a homework) Determine the resultant force R of the three...

Problem 8 (will be used as a homework) Determine the resultant force R of the three concurrent forces. Express the resultant as a Cartesian vector (i.e., R Rxi+ Ry j), indicate its magnitude IR, and the direction angle 0 measured counterclockwise from the F-300N F2 450 N F3 600N 45° r positive x-axisS.

Number 7 only please Three forces act on the anchor bolt connection shown below. The forces...

Number 7 only please Three forces act on the anchor bolt connection shown below. The forces are concurrent at point A.Express all answers to three significant figures with the appropriate units. F2 35 kN FI F3 = 10 kN Express force F1 in rectangular vector form. Take F: = 20 kN and 6, = 50.. Problem #2 Express force F2 in rectangular vector form. Problem#3 Express force F, in rectangular vector form. Problem#4 Determine the resultant force FR in rectangular...
Replace the loading on the frame by a single resultant force. Suppose that F1 = 450 N, F2 = 550 N, F3 = 950 N, and F4 = 500 N.

Replace the loading on the frame by a single resultant force. Suppose that F1 = 450 N, F2 = 550 N, F3 = 950 N, and F4 = 500 N.Part ADetermine the magnitude (Figure 1) the resultant force Part B Determine the angle between the resultant force and the x axis.Part C Specify where the line of action of the resultant force intersects a horizontal line along member CB, measured from end C.
Force # m (g) Magnitude of the force F (N) Direction in o 1 50...

Force # m (g) Magnitude of the force F (N) Direction in o 1 50 .49 135 2 150 1.47 65 3 250 2.45 330 Resultant Force FR 450 4.41 10 Finding the Resultant force FR=F1+ F2+ F3 -Experimental -Analytical or algebraic (analyze to components) -Graphical

Part A If F1 = 16 kN, F2 = 22 kN, F3 = 16 kN, determine...

Part A If F1 = 16 kN, F2 = 22 kN, F3 = 16 kN, determine the magnitude of the resultant force. (Figure 1) Express your answer to three significant figures and include the appropriate units. O O ? "! HA Fr = 41.2 kN Submit Previous Answers Request Answer X Incorrect; Try Again; 4 attempts remaining Figure C 1 of 1 Part B Determine the direction of the resultant force measured counterclockwise from the positive c axis. Express your...
Problem 2 Determine the magnitude and direction, measured counterclockwise from the x* ax the resultant force...

Problem 2 Determine the magnitude and direction, measured counterclockwise from the x* ax the resultant force of the three forces acting on the bracket. Given: F/ = 300 N F2 450 NN F3 200 N α 45 deg β-30 deg θ 20 deg
three forces act on a bracket as shown two forces acting on a bracket 7. Three...

three forces act on a bracket as shown two forces acting on a bracket 7. Three forces act on the bracket as shown. The resultant of these vectors acts along the u axis with a magnitude of 600 N. Determine the magnitude and direction of F1. F2 650 N Fi 45° F3 500 N 2. Two forces are acting on the bracket. The magnitude and direction of the vector F is 450 N and 60°, respectively. Find the magnitude of...

Solve all parts thanks <Extra Credit 2 Force Vector Directed along a Line Three-dimensional Cartesian force...

Solve all parts thanks <Extra Credit 2 Force Vector Directed along a Line Three-dimensional Cartesian force vectors are used throughout engineering mechanics. The generic force vector is represented as follows: F= F,i+Fyj + F kwhere F is the force vector and Fr, Fy, and F, are the vector's i, j, and k components, respectively. The force vector has a magnitude F F2 +F3 + F2. The vector's I 1 Figure < 1 of 2 > C 13/12 5 F =...
