Homework Answers
there is no friction between 50 kg and 10kg block's contact surface because there is no relative motion between them (since they both will stay on the wedge)
T is tension in the string
N1 is normal reaction b/w 5 and 50kg blocks, similarly for all other cases
and f1 is friction b/w 5 and 50 kg blocks and similarly for othe cases and g is acceleration due to gravity
Add Answer to:

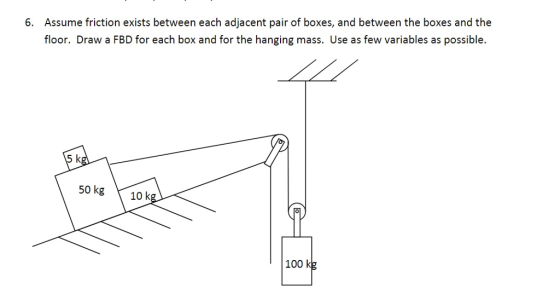

Assume friction exists between each adjacent pair of boxes, and between the boxes and the floor....
