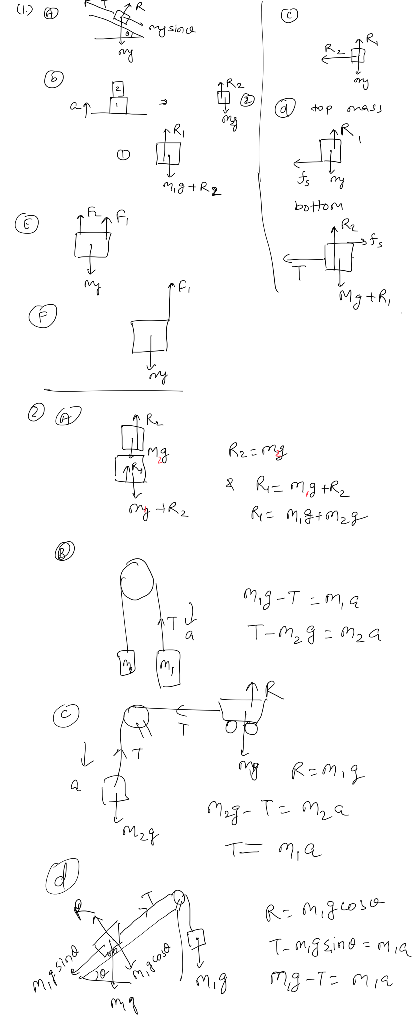

I ) Draw a FBD for each of the following :
A) Mass on a ramp with a string pulling it up the ramp
B) 2 unequal masses stacked in a moving elevator : Draw 2 FBD
c) A person on the UFO ride @ a themepark that is stuck to a wall w/o touching their feet to the floor
D) Two masses stacked (unequal masses) with the bottom mass being pulled by a tension force . The top mass is staying with the bottom mass by friction
E) A square sign hangs from two cables that are perpendicular to the ceiling
F) the same square sign that is now hanging from cables at an angle 0 from the vertical I
write equations for the Sum of Forces
A) A box stationary on the floor w/ another box on top of it
B) A simple pulley system consisting of two unequal masses
c) A pulley system w/ a cart on a flat track and a hanging mass
D) A cart on an angled ramp w/ a hanging mass attached to a pulley system
Homework Answers
Add Answer to:
Honorsphysic.sc#
I ) Draw a FBD for
each of the following :
A) Mass on a...
only do questions 1-3 please rt I: Measured Acceleration Mass of the cart: Mcart d scale...
only do questions 1-3 please
rt I: Measured Acceleration Mass of the cart: Mcart d scale to measure the mass of the cart (leave the scale where it is 2. Load the w Mass of the big bars placed on top of the cart Mban DATA TABLE 850 kg 0.501 te cart with 2 big bars. The mass of each bar is marked, read the value and record 8" 1000 Mass Net Foce Measured AccelerationCalculated Theoretical Acceleration (m/s' hanging %...
16. A force of magnitude 25.0 N is applied to a box of mass m2 =...
16. A force of magnitude 25.0 N is applied to a box of mass m2 = 2.0 kg. The force is directed up a plane tilted at an angle of 60.0. The box is connected by a cord to another box of mass m1 = 2.5 kg. The floor and pulley are frictionless, the ramp has a coefficient of friction of μ,-0.15, and the masses of the pulley and cord are neglible. a. Draw the free-body diagrams for the two...
Two homogeneous identical square blocks are stacked atop each other on a horizontal surface. Friction between...
Two homogeneous identical square blocks are stacked atop each other on a horizontal surface. Friction between the top block (block A) and the bottom block (block B) is described by and but there is no friction between the bottom block (block B) and the horizontal surface. Starting at rest, the top block is pulled to the right with a force which is applied at the midheight. Let , 4 inches, and . Assume neither blocks tips, and remember that Below the figure to the...
The UPS guy is delivering two rectangular boxes to the 4th floor. The boxes are stacked...
The UPS guy is delivering two rectangular boxes to the 4th floor. The boxes are stacked vertically in the elevator. The one on the bottom has a mass of 5.00 kg and the one on the top has a mass of 2.00 kg. The elevator, the UPS guy, and both boxes are accelerating upward at 2.50 m/s2. What is the magnitude of the normal force between the two boxes? For the physical representation (part 2a), draw and label an appropriate...
Two boxes, each of mass 2.0 kg. are connected by a rope. acceleration= 5 m/s^2 A.)...
Two boxes, each of mass 2.0 kg. are connected by a
rope. acceleration= 5 m/s^2
A.) draw a free body diagram for each box
B.) considering the ropes are lightweight...
B1.)what is the tension in the top rope?
B2.) what is the tension of the rope connecting the two boxes?
C.)considering the ropes are steel cables with a mass
of 1.0 kg...
C1.) what would be the force of the steel cable on the top
box?
C2.) what would be...
Monash College MCD 4270 Engineering Design Informal Assessment 10: (Sem1 2016) Name ID Number: As shown in igure 6 below, a block of mass 3 kg sits on a ramp that is inclined at an angle of S0 deg...
Monash College MCD 4270 Engineering Design Informal Assessment 10: (Sem1 2016) Name ID Number: As shown in igure 6 below, a block of mass 3 kg sits on a ramp that is inclined at an angle of S0 degrees to the horizontal. On top of this block rests another block of mass 2 kg. The two blocks are connected by a cord that passes over a frictionless pulley. The coefficient of static friction between all surfaces (i.e., between the two...
In each of the following problems, please show each of the following steps. - draw the...
In each of the following problems, please show each of the
following steps.
- draw the picture, specify the coordinate system, indicate your
generalized coordinates
- write the KE as a function of your generalized velocities and
coordinate system.
- write the PE as a function of your generalized coordinates and
coordinate system.
- write the Lagrangian
- derive the equations of motion, one each for each generalized
coordinate
1) Shown is a simple pendulum bob of mass m attached...
3. A very thin circular hoop of mass m and radius r is made to roll,...
3. A very thin circular hoop of mass m and radius r is made to roll, without slipping, down a ramp with an angle of inclination (with respect to the horizontal), as shown in the figure below. See Figure 3. Note: The moment of inertia of the thin circular hoop is given by: I houp = mra Consider a system consisting of a ladder with a painter climbing said ladder. The ladder has a length 1 = 5,00 meters and...
Forces and Newton's LAWS WU PHYS 1107 - General Physics I ) An 9.0 kg mass...
Forces and Newton's LAWS WU PHYS 1107 - General Physics I ) An 9.0 kg mass (M) is placed on a horizontal surface. A massless rope runs over a frictionless massless pulley which connects the mass M to a 6.5 kg mass (m) that hangs vertically. a) What is the acceleration of the vertical mass if the horizontal surface is frictionless? b) What is the tension in the rope if the horizontal surface is frictionless? Now assume that the horizontal...
Any assistance to get me started with (b), (C), (d) , and (e) would be appreciated....
Any assistance to get me started with (b), (C), (d) , and (e)
would be appreciated. Thank you!
A system consisting of two pulleys, a spring, and four masses connected by strings is shown in the diagram below. Masses 1 and 2 rest on the side of a frictionless ramp at an angle θ from horizontal. mass 3 is suspended by a pulley, and mass 4 is hanging from a spring of spring constant k displaced a distance d from...
only do questions 1-3 please
rt I: Measured Acceleration Mass of the cart: Mcart d scale to measure the mass of the cart (leave the scale where it is 2. Load the w Mass of the big bars placed on top of the cart Mban DATA TABLE 850 kg 0.501 te cart with 2 big bars. The mass of each bar is marked, read the value and record 8" 1000 Mass Net Foce Measured AccelerationCalculated Theoretical Acceleration (m/s' hanging %...
16. A force of magnitude 25.0 N is applied to a box of mass m2 = 2.0 kg. The force is directed up a plane tilted at an angle of 60.0. The box is connected by a cord to another box of mass m1 = 2.5 kg. The floor and pulley are frictionless, the ramp has a coefficient of friction of μ,-0.15, and the masses of the pulley and cord are neglible. a. Draw the free-body diagrams for the two...
Two boxes, each of mass 2.0 kg. are connected by a
rope. acceleration= 5 m/s^2
A.) draw a free body diagram for each box
B.) considering the ropes are lightweight...
B1.)what is the tension in the top rope?
B2.) what is the tension of the rope connecting the two boxes?
C.)considering the ropes are steel cables with a mass
of 1.0 kg...
C1.) what would be the force of the steel cable on the top
box?
C2.) what would be...
Monash College MCD 4270 Engineering Design Informal Assessment 10: (Sem1 2016) Name ID Number: As shown in igure 6 below, a block of mass 3 kg sits on a ramp that is inclined at an angle of S0 degrees to the horizontal. On top of this block rests another block of mass 2 kg. The two blocks are connected by a cord that passes over a frictionless pulley. The coefficient of static friction between all surfaces (i.e., between the two...
In each of the following problems, please show each of the
following steps.
- draw the picture, specify the coordinate system, indicate your
generalized coordinates
- write the KE as a function of your generalized velocities and
coordinate system.
- write the PE as a function of your generalized coordinates and
coordinate system.
- write the Lagrangian
- derive the equations of motion, one each for each generalized
coordinate
1) Shown is a simple pendulum bob of mass m attached...
3. A very thin circular hoop of mass m and radius r is made to roll, without slipping, down a ramp with an angle of inclination (with respect to the horizontal), as shown in the figure below. See Figure 3. Note: The moment of inertia of the thin circular hoop is given by: I houp = mra Consider a system consisting of a ladder with a painter climbing said ladder. The ladder has a length 1 = 5,00 meters and...
Forces and Newton's LAWS WU PHYS 1107 - General Physics I ) An 9.0 kg mass (M) is placed on a horizontal surface. A massless rope runs over a frictionless massless pulley which connects the mass M to a 6.5 kg mass (m) that hangs vertically. a) What is the acceleration of the vertical mass if the horizontal surface is frictionless? b) What is the tension in the rope if the horizontal surface is frictionless? Now assume that the horizontal...
Any assistance to get me started with (b), (C), (d) , and (e)
would be appreciated. Thank you!
A system consisting of two pulleys, a spring, and four masses connected by strings is shown in the diagram below. Masses 1 and 2 rest on the side of a frictionless ramp at an angle θ from horizontal. mass 3 is suspended by a pulley, and mass 4 is hanging from a spring of spring constant k displaced a distance d from...
