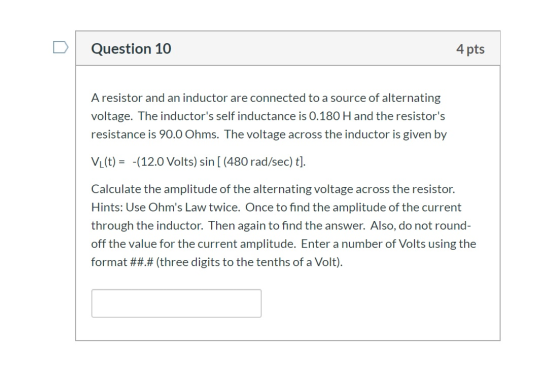

Question 10 4 pts A resistor and an inductor are connected to a source of alternating...
Exercise 31.13 - Enhanced - with Feedback You have a resistor of resistance 1902, an inductor...
Exercise 31.13 - Enhanced - with Feedback You have a resistor of resistance 1902, an inductor of inductance 0.450 H, a capacitor of capacitance 6.40 pF and a voltage source that has a voltage amplitude of 26.0 V and an angular frequency of 300 rad/s. The resistor, inductor, capacitor, and voltage source are connected to form an L-R-C series circuit. Part A What is the impedance of the circuit? Express your answer in ohms. VOI ΑΣΦ FR ? Z= 12...
You have a 190-Ω resistor and a 0.420-H inductor. Suppose you take the resistor and inductor...
You have a 190-Ω resistor and a 0.420-H inductor. Suppose you take the resistor and inductor and make a series circuit with a voltage source that has a voltage amplitude of 31.0 V and an angular frequency of 210 rad/s . 1) What is the impedance of the circuit in ohms? 2) What is the current amplitude? 3) What is the voltage amplitude across the resistor? 4) What is the voltage amplitudes across the inductor?
All missing parts please. (7%) Problem 6: A 16-Ω resistor, 45-uF capacitor, and 3.5-mH inductor are...
All missing parts please.
(7%) Problem 6: A 16-Ω resistor, 45-uF capacitor, and 3.5-mH inductor are connected in series with an AC source of amplitude 13 V and frequency 135 Hz. 8% Part (a) What is the impedance of the circuit, in ohms? 8% Part (b) What is the amplitude of the current in the circuit, in amperes? 8% Part (c) What is the phase constant of the current, in degrees? 8% Part (d) With a source voltage of Vsourc,-Vocos(2π...
A 0.160 H inductor is connected in series with a 91.0 Ω resistor and an ac...
A 0.160 H inductor is connected in series with a 91.0 Ω resistor and an ac source. The voltage across the inductor is vL=−(11.0V)sin[(472rad/s)t]. a. Derive an expression for the voltage vR across the resistor. 1).Express your answer in terms of the variables L, R, VL (amplitude of the voltage across the inductor), ω, and t .2).What is vR at 1.85 ms ? Express your answer with the appropriate units.
. A 250-ohm resistor, a 0.450 H inductor, and a 6.45 F capacitor are connected in...
. A 250-ohm resistor, a 0.450 H inductor, and a 6.45 F capacitor are connected in series across an emf with a 36.0 volt amplitude and an angular frequency of 260 rad/s. a. What is the impedance? b. What is the current amplitude? c. What is the phase angle between the voltage and current? Does the voltage lag or lead? d. What are the voltage amplitudes across the resistor, inductor and capacitor individually? e. What is the power? f. What...
(a) In an RLC circuit, can the amplitude of the volt- age across an inductor be...
(a) In an RLC circuit, can the amplitude of the volt- age across an inductor be greater than the amplitude of the generator emf? (b) Consider an RLC circuit with emf amplitude =15.6 V, resistance R=10 ohms, inductance L=1.0 H, and capacitance C=1.0 mF. Find the amplitude of the voltage across the inductor in volts. (5 sig fig)
#3. A 250-ohm resistor, a 0.450 H inductor, and a 6.45 uF capacitor are connected in...
#3. A 250-ohm resistor, a 0.450 H inductor, and a 6.45 uF capacitor are connected in series across an emf with a 36.0 volt amplitude and an angular frequency of 260 rad/s. a. What is the impedance? b. What is the current amplitude? c. What is the phase angle between the voltage and current? Does the voltage lag or lead? d. What are the voltage amplitudes across the resistor, inductor and capacitor individually? e. What is the power? f. What...
Please do question 524 the power in watts dissipated by the resistor. Hamad Alrobayan ans:4 ource, resistor, 524) Given a series circuit consisting of a DC voltage capacitor, inductor, and switch...
Please do question 524
the power in watts dissipated by the resistor. Hamad Alrobayan ans:4 ource, resistor, 524) Given a series circuit consisting of a DC voltage capacitor, inductor, and switch which closes at t-o. All elements are initially uncharged. If v-1 volts, R-4 Ohms, C-1/10 Farads, and L-2 Henries. DO NOT determine current. Determine voltage across the INDUCTOR (VL(t)). Any inverse LT requires Stanley met Express any angle in radians. ans:4 Hamad Alrobayan 765 Given th vstem in Fig...
A circuit has an ac voltage source and a resistor and capacitor connected in series. There is no inductor.
A circuit has an ac voltage source and a resistor and capacitor connected in series. There is no inductor. The ac voltage source has voltage amplitude 0.900 kV and angular frequency w = 20.0 rad/s. The voltage amplitude across the capacitor is 0.500 kV. The resistor has resistance R= 0.300 kΩ. Part A What is the voltage amplitude across the resistor? Part B What is the capacitance C of the capacitor? Part C Does the source voltage lag or lead the current? Part D What is the average...
A 200 Ω resistor, a 0.850 H inductor, and a 5.75 μF capacitor are connected in...
A 200 Ω resistor, a 0.850 H inductor, and a 5.75 μF capacitor are connected in series across a voltage source that has voltage amplitude 30.5 V and an angular frequency of 240 rad/s . a)What is v at t= 20.0 ms ? b)What is vR at t= 20.0 ms ? c)What is vL at t= 20.0 ms ? d)What is vC at t= 20.0 ms ? e)What is VR? f)What is VC? g)What is VL? k)Compare V and VL+VC+VR: 1-VL+VR+VC>V...
Exercise 31.13 - Enhanced - with Feedback You have a resistor of resistance 1902, an inductor of inductance 0.450 H, a capacitor of capacitance 6.40 pF and a voltage source that has a voltage amplitude of 26.0 V and an angular frequency of 300 rad/s. The resistor, inductor, capacitor, and voltage source are connected to form an L-R-C series circuit. Part A What is the impedance of the circuit? Express your answer in ohms. VOI ΑΣΦ FR ? Z= 12...
All missing parts please.
(7%) Problem 6: A 16-Ω resistor, 45-uF capacitor, and 3.5-mH inductor are connected in series with an AC source of amplitude 13 V and frequency 135 Hz. 8% Part (a) What is the impedance of the circuit, in ohms? 8% Part (b) What is the amplitude of the current in the circuit, in amperes? 8% Part (c) What is the phase constant of the current, in degrees? 8% Part (d) With a source voltage of Vsourc,-Vocos(2π...
Please do question 524
the power in watts dissipated by the resistor. Hamad Alrobayan ans:4 ource, resistor, 524) Given a series circuit consisting of a DC voltage capacitor, inductor, and switch which closes at t-o. All elements are initially uncharged. If v-1 volts, R-4 Ohms, C-1/10 Farads, and L-2 Henries. DO NOT determine current. Determine voltage across the INDUCTOR (VL(t)). Any inverse LT requires Stanley met Express any angle in radians. ans:4 Hamad Alrobayan 765 Given th vstem in Fig...
