Please do question 524 the power in watts dissipated by the resistor. Hamad Alrobayan ans:4 ource, resistor, 524) Given a series circuit consisting of a DC voltage capacitor, inductor, and switch...

Question

Question

Please do question 524

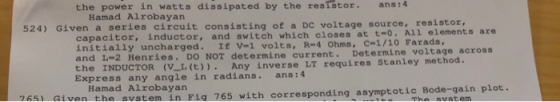

the power in watts dissipated by the resistor. Hamad Alrobayan ans:4 ource, resistor, 524) Given a series circuit consisting

engineering Electrical-Engineering

Answer 1

Answer #1

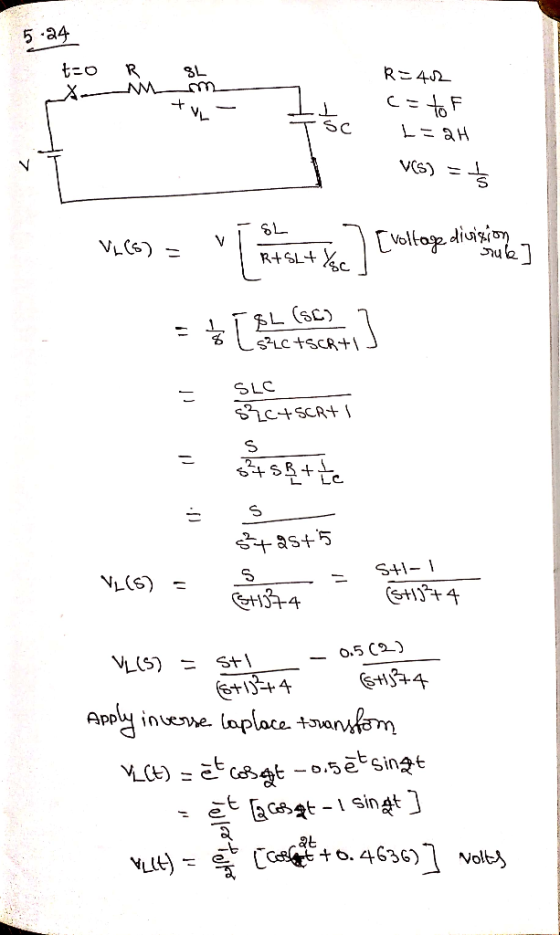

R SL に SC SLC L LC 0.5 C2-)

Answer 2

Similar Homework Help Questions

4) An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an A...

4) An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an AC voltage source with an RMS voltage of 59 volts. At half the resonant frequency, the phase angle is -35 degrees and the inductive reactance is 46 Ohms. What is the average dissipated power at twice the resonant frequency in Watts?
A series circuit has a DC voltage source (42 volts), a resistor (70 ohms), a capacitor...

A series circuit has a DC voltage source (42 volts), a resistor (70 ohms), a capacitor (25 farads), and a switch. The capacitor is initially uncharged and the switch closes at t=0. Sketch the exponential current and capacitor voltage: i(t)=Aexp(-t/tau) +B, and Vc(t)=Dexp(-t/tau) +F. Find: A,B,D,F,tau,i(t=tau),i(t=4tau),Vc(t=tau),and Vc(t=3tau).
A series circuit has a DC voltage source (73 volts), a resistor (95 ohms), a capacitor...

A series circuit has a DC voltage source (73 volts), a resistor (95 ohms), a capacitor (91 farads), and a switch. The capacitor is initially uncharged and the switch closes at t=0. Sketch the exponential current and capacitor voltage: i(t)=Aexp(-t/tau) +B, and Vc(t)=Dexp(-t/tau) +F. Find: A,B,D,F,tau,i(t=tau),i(t=4tau),Vc(t=tau),and Vc(t=3tau).

Question 4 4) An RLC circuit consists of a resistor, a inductor, and a capacitor connected in ser...

Question 4 4) An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an AC voltage source with an RMS voltage of 95 volts. At half the resonant frequency, the phase angle is -33 degrees and the inductive reactance is 50 Ohms. What is the average dissipated power at twice the resonant frequency in Watts?
Check my work please: 4) An RLC circuit consists of a resistor, a inductor, and a...

Check my work please: 4) An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an AC voltage source with an RMS voltage of 51 volts. At half the resonant frequency, the phase angle is 24 degrees and the inductive reactance is 46 Ohms. What is the average dissipated power at twice the resonant frequency in Watts? 그mt : 2902. 83-t 81212723.3c -2イイ·m)
