A series circuit has a DC voltage source (73 volts), a resistor (95 ohms), a capacitor...

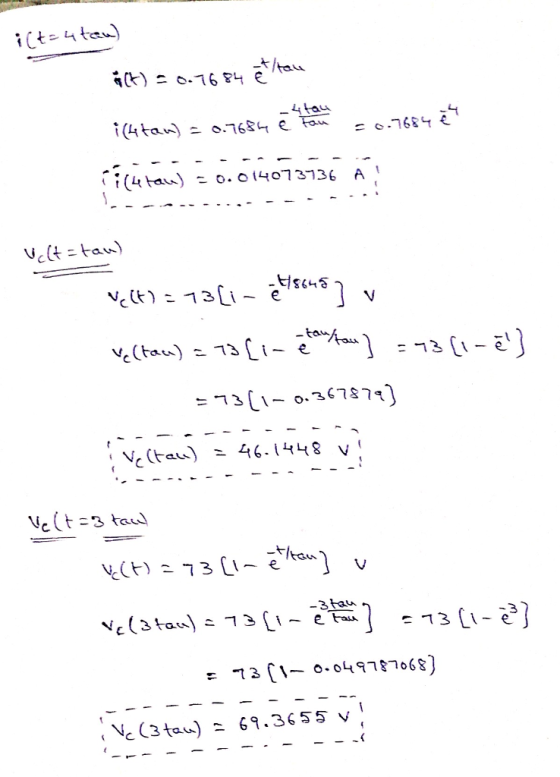

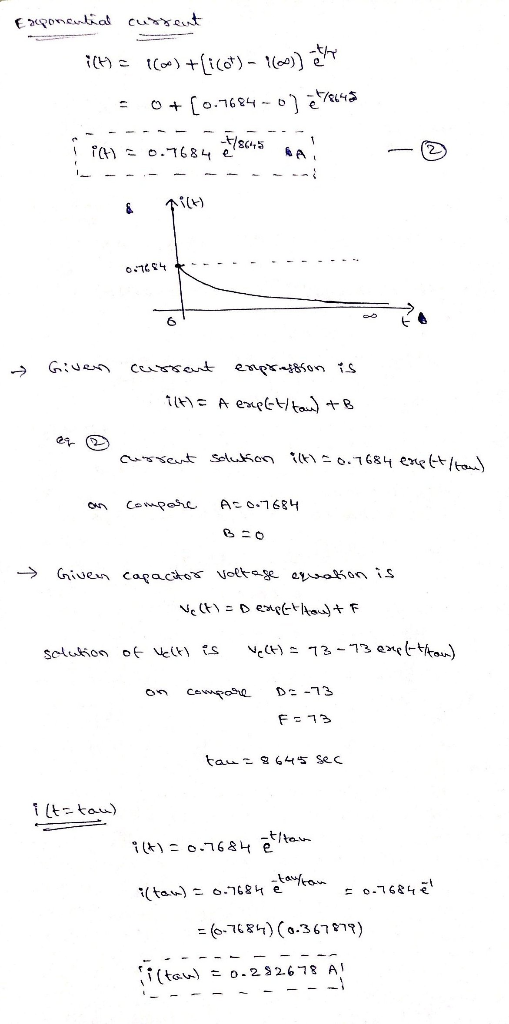

A series circuit has a DC voltage source (73 volts), a resistor (95 ohms), a capacitor (91 farads), and a switch. The capacitor is initially uncharged and the switch closes at t=0. Sketch the exponential current and capacitor voltage: i(t)=Aexp(-t/tau) +B, and Vc(t)=Dexp(-t/tau) +F. Find: A,B,D,F,tau,i(t=tau),i(t=4tau),Vc(t=tau),and Vc(t=3tau).
Homework Answers
Add Answer to:
A series circuit has a DC voltage source (73 volts), a
resistor (95 ohms), a capacitor...
A series circuit has a DC voltage source (42 volts), a resistor (70 ohms), a capacitor...
A series circuit has a DC voltage source (42 volts), a resistor (70 ohms), a capacitor (25 farads), and a switch. The capacitor is initially uncharged and the switch closes at t=0. Sketch the exponential current and capacitor voltage: i(t)=Aexp(-t/tau) +B, and Vc(t)=Dexp(-t/tau) +F. Find: A,B,D,F,tau,i(t=tau),i(t=4tau),Vc(t=tau),and Vc(t=3tau).
Please do question 524 the power in watts dissipated by the resistor. Hamad Alrobayan ans:4 ource, resistor, 524) Given a series circuit consisting of a DC voltage capacitor, inductor, and switch...
Please do question 524
the power in watts dissipated by the resistor. Hamad Alrobayan ans:4 ource, resistor, 524) Given a series circuit consisting of a DC voltage capacitor, inductor, and switch which closes at t-o. All elements are initially uncharged. If v-1 volts, R-4 Ohms, C-1/10 Farads, and L-2 Henries. DO NOT determine current. Determine voltage across the INDUCTOR (VL(t)). Any inverse LT requires Stanley met Express any angle in radians. ans:4 Hamad Alrobayan 765 Given th vstem in Fig...
A resistor and capacitor are connected in series to a power supply of 50 Volts. The...
A resistor and capacitor are connected in series to a power supply of 50 Volts. The resistor has a value of 30000 ohms and the Capacitor is initially uncharged. After a time of 16.0 seconds, the capacitor is charged 72% fully charged. a) What is the capacitance of capacitor in this circuit? b) What is the time constant of this system? c) What is the current through the resistor at t= 20.0 seconds? d) What is the potential difference across...
A series RC circuit with C=40uF and R=6.0 Ohms has a 24 V source in it....
A series RC circuit with C=40uF and R=6.0 Ohms has a 24 V source in it. With the capacitor initially uncharged, an open switch in the circuit is closed. At what time will the voltage across the capacitor be 18V?
a) In SERIES circuit containing a voltage source, resistor and capacitor where the output is taken...
a) In SERIES circuit containing a voltage source, resistor and capacitor where the output is taken off the resistor after 3 tau the out voltage will equal 95% of the applied voltage source. Is this true or false? b) the -3dB point represents the operational frequency where the power delivered ti the output is .5 total power delivered in the circuit by the power supply. true or false
1255) See Fig. 1255. L-1 nodsWebCHARLIE at Buffalo State ColLege Henry, R-0.70 Ohms, C-l1/49 Farads, VB-20 VoLts Determine the voltage across the capacitor after the All voltages and current...
1255) See Fig. 1255. L-1 nodsWebCHARLIE at Buffalo State ColLege Henry, R-0.70 Ohms, C-l1/49 Farads, VB-20 VoLts Determine the voltage across the capacitor after the All voltages and current are zero initially. The change across the capacitor is zero. Graph the response for about one time constant. Determine G, f, W, H, and K, ans5 switch closes. initial rate of voltage The final capacitor voltage is VB. C kft) Figure 1255 coK
1255) See Fig. 1255. L-1 nodsWebCHARLIE at Buffalo...
3 Capacitor Discharging Current The capacitor voltage versus time in a discharging series RC circuit, as...
3 Capacitor Discharging Current The capacitor voltage versus time in a discharging series RC circuit, as shown in the Background Information Figure 2, is Vo(t) = V, expl-Roc), +20 (3) where V, is the source voltage in Volts, exp(x) is the exponential functione, Rp is the discharging resistance in Ohms (N), C is the capacitance in Farads. To = Rp is the discharging time constant in seconds. Derive an expression for the capacitor discharging current versus time, .(t), in terms...
S2* (8 pts) In the circuit to the right, the DC source, V = 2 volts...
S2* (8 pts) In the circuit to the right, the DC source, V = 2 volts for all time. The switch has been open a long time. Also, the capacitor is charged to 1 volt, so ve(0-) =1. At t = 0, the switch closes. Assume: C = "4 F, = 1 H, R = 10 ohms. a) Find the current through the resistor for t> 0. (hint: at t= 0+, di/dt = .04 amps per second. *) Plot your...
In a series resistance-capacitance DC circuit, the instantaneous charge Q on the capacitor as a... In...
In a series resistance-capacitance DC circuit, the instantaneous charge Q on the capacitor as a... In a series resistance-capacitance DC circuit, the instantaneous charge Q on the capacitor as a function of time (where t=0 is the moment the circuit is energized by closing a switch) is given by the equation Q(t)=CV(1-e-t/(RC), where C, V, and R are constants. Further, the instantaneous charging current Ic is the rate of change of charge on the capacitor, or Ic=dQ/dt a. Find the...
In the RC circuit shown, the capacitor is initially charged to 10 volts, and the switch...
In the RC circuit shown, the capacitor is initially charged to 10 volts, and the switch closes at time t=0. The voltage across the capacitor can be described by the equation Vc(t) given below for time t>=0 (greater than, or equal to, O). Determine V_1 and V_2 for this equation. R=100KR C=o.lMF I capacitor initially I charged to 10 volts V(t) = V₂ + (VZ-V4) e ERC for tzo
Please do question 524
the power in watts dissipated by the resistor. Hamad Alrobayan ans:4 ource, resistor, 524) Given a series circuit consisting of a DC voltage capacitor, inductor, and switch which closes at t-o. All elements are initially uncharged. If v-1 volts, R-4 Ohms, C-1/10 Farads, and L-2 Henries. DO NOT determine current. Determine voltage across the INDUCTOR (VL(t)). Any inverse LT requires Stanley met Express any angle in radians. ans:4 Hamad Alrobayan 765 Given th vstem in Fig...
1255) See Fig. 1255. L-1 nodsWebCHARLIE at Buffalo State ColLege Henry, R-0.70 Ohms, C-l1/49 Farads, VB-20 VoLts Determine the voltage across the capacitor after the All voltages and current are zero initially. The change across the capacitor is zero. Graph the response for about one time constant. Determine G, f, W, H, and K, ans5 switch closes. initial rate of voltage The final capacitor voltage is VB. C kft) Figure 1255 coK
1255) See Fig. 1255. L-1 nodsWebCHARLIE at Buffalo...
3 Capacitor Discharging Current The capacitor voltage versus time in a discharging series RC circuit, as shown in the Background Information Figure 2, is Vo(t) = V, expl-Roc), +20 (3) where V, is the source voltage in Volts, exp(x) is the exponential functione, Rp is the discharging resistance in Ohms (N), C is the capacitance in Farads. To = Rp is the discharging time constant in seconds. Derive an expression for the capacitor discharging current versus time, .(t), in terms...
S2* (8 pts) In the circuit to the right, the DC source, V = 2 volts for all time. The switch has been open a long time. Also, the capacitor is charged to 1 volt, so ve(0-) =1. At t = 0, the switch closes. Assume: C = "4 F, = 1 H, R = 10 ohms. a) Find the current through the resistor for t> 0. (hint: at t= 0+, di/dt = .04 amps per second. *) Plot your...
In the RC circuit shown, the capacitor is initially charged to 10 volts, and the switch closes at time t=0. The voltage across the capacitor can be described by the equation Vc(t) given below for time t>=0 (greater than, or equal to, O). Determine V_1 and V_2 for this equation. R=100KR C=o.lMF I capacitor initially I charged to 10 volts V(t) = V₂ + (VZ-V4) e ERC for tzo
