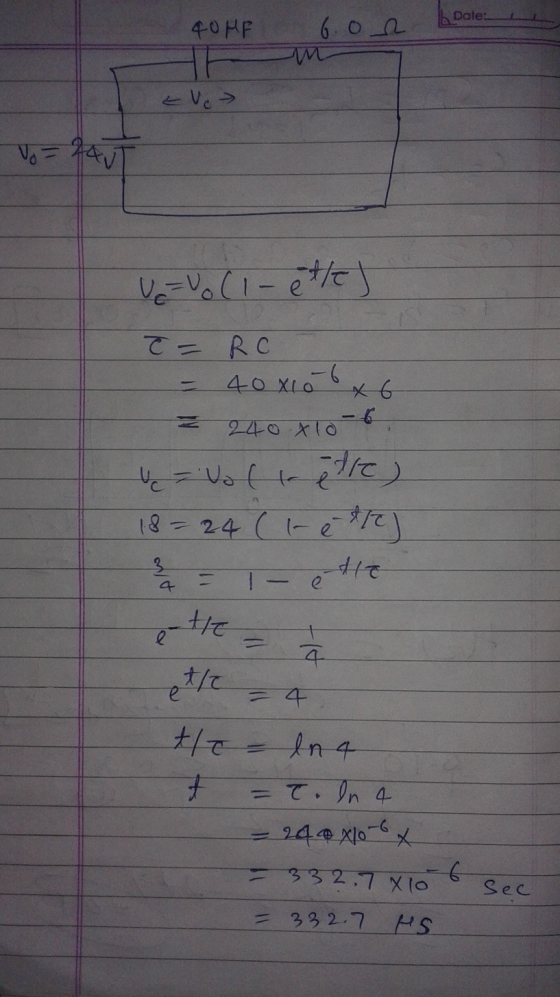

A series RC circuit with C=40uF and R=6.0 Ohms has a 24 V source in it....
Homework Answers
Add Answer to:
A series RC circuit with C=40uF and R=6.0 Ohms has a 24 V
source in it....
The figures show a simple RC circuit consisting of a 120.0 V battery in series with...
The figures show a simple RC circuit consisting of a 120.0 V battery in series with a 15.0 μF capacitor and a resistor. Initially, the switch S is open and the capacitor is uncharged. Two seconds after the switch is closed, the voltage across the resistor is 50 V. Q: How much charge is on the capacitor 2.0s after the switch is closed?
Question 9 5 pts An RC circuit consisting of an uncharged capacitor (C = 1.0 uF)...
Question 9 5 pts An RC circuit consisting of an uncharged capacitor (C = 1.0 uF) in series with a resistor (R = 2800 ), a battery (ε = 6.0 V) and an open switch. What is the time needed after the switch is closed for the voltage across the capacitor to reach 4.1 V? 4.8 ms 3.0 ms O 1.2 ms 2.8 ms
An RC circuit consists of a 24 V battery, a 15 mF capacitor, and a 35...
An RC circuit consists of a 24 V battery, a 15 mF capacitor, and a 35 M-ohm resistor, all in series with a switch. The switch is initially open and the capacitor is initially uncharged. What is the charge on the capacitor when the current is 2.0 e-7?
3. In the RC circuit shown in the figure below the capacitor is initially uncharged R-100?...
3. In the RC circuit shown in the figure below the capacitor is initially uncharged R-100? R2 3002, C-250 uF (a) At what time after the switch is connected to A will the voltage across the capacitor be 5.6 V? (b) What is the current through Ri when the voltage across the capacitor equal 5.6 V? (c) When the voltage across C is 5.6V the switch is quickly thrown to position B. At what time after the switch is thrown...
Consider a series circuit containing a resistor of resistance R and a capacitor of capacitance C connected to a source of EMF ε with negligible internal resistance.
Consider a series circuit containing a resistor of resistance R and a capacitor of capacitance C connected to a source of EMF ε with negligible internal resistance. The wires are also assumed to have zero resistance. Initially, the switch is open and the capacitor discharged. (Figure 1)Immediately after the switch is closed, what is the voltage
across the resistor?Immediately after the switch is closed, what is the direction of
the current in the circuit?
1. A circuit is composed of a capacitor connected in series to an inductor (L=2E-3 H)...
1. A circuit is composed of a capacitor connected in series to an inductor (L=2E-3 H) and resistor (R=100 Ohms). The capacitor is initially uncharged. What is the instantaneous current flowing through the circuit at time t = 0.34 s. 2. An LR circuit contains an ideal 50-V battery, a 42-H inductor having no resistance, a 21-Ω resistor, and a switch S, all in series. Initially, the switch is open and has been open for a very long time. At...
Learning Goal: To understand the dynamics of a series R-C circuit. Consider a series circuit containing...
Learning Goal: To understand the dynamics of a series R-C circuit. Consider a series circuit containing a resistor of resistance R and a capacitor of capacitance C connected to a source of EMF ε with negligible internal resistance. The wires are also assumed to have zero resistance. Initially, the switch is open and the capacitor discharged. (Figure 1)Let us try to understand the processes that take place after the switch is closed. The charge of the capacitor, the current in...
2. (10 pts) Calculate the current through the 4 ohm resistor in the circuit if points...
2. (10 pts) Calculate the current through the 4 ohm resistor in the circuit if points (a) and (b) connect to a 12 Volt battery 24 3. (10 pts) Same setup as number 2. Caleulate the voltage across the 24 ohm resistor. 4. (10 pts) We have a series RC circuit. (Rİ 200 ohan, cis 50microfrads. The capacitor is initially uncharged when the switch is closed connecting a 12 Volt battery. Caleulate the voltage across the capacitor after 20 milliseconds....
Consider a series circuit containing a resistor of resistance R and a capacitor of capacitance C connected to a source of EMF E with negligible internal resistance.
Consider a series circuit containing a resistor of resistance R and a capacitor of capacitance C connected to a source of EMF E with negligible internal resistance. The wires are also assumed to have zero resistance. Initially, the switch is open and the capacitor discharged. (Figure 1)A Immediately after the switch is closed, what is the voltage across the capacitor?B Complete previous part(s) C Immediately after the switch is closed, what is the direction of the current in the circuit? E Eventually,...
an RC circuit has capacitor C=1, Resistor R=0.5, and voltage source x(t) all in series. With...
an RC circuit has capacitor C=1, Resistor R=0.5, and voltage source x(t) all in series. With zero initial condition, and x(t)=u(t), what is voltage across capacitor, y(t)?
Question 9 5 pts An RC circuit consisting of an uncharged capacitor (C = 1.0 uF) in series with a resistor (R = 2800 ), a battery (ε = 6.0 V) and an open switch. What is the time needed after the switch is closed for the voltage across the capacitor to reach 4.1 V? 4.8 ms 3.0 ms O 1.2 ms 2.8 ms
3. In the RC circuit shown in the figure below the capacitor is initially uncharged R-100? R2 3002, C-250 uF (a) At what time after the switch is connected to A will the voltage across the capacitor be 5.6 V? (b) What is the current through Ri when the voltage across the capacitor equal 5.6 V? (c) When the voltage across C is 5.6V the switch is quickly thrown to position B. At what time after the switch is thrown...
2. (10 pts) Calculate the current through the 4 ohm resistor in the circuit if points (a) and (b) connect to a 12 Volt battery 24 3. (10 pts) Same setup as number 2. Caleulate the voltage across the 24 ohm resistor. 4. (10 pts) We have a series RC circuit. (Rİ 200 ohan, cis 50microfrads. The capacitor is initially uncharged when the switch is closed connecting a 12 Volt battery. Caleulate the voltage across the capacitor after 20 milliseconds....
