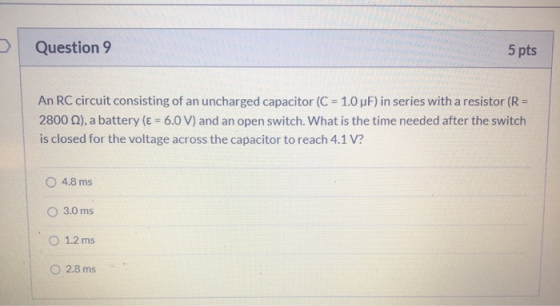

Question 9 5 pts An RC circuit consisting of an uncharged capacitor (C = 1.0 uF)...

Question

Question

science physics

Answer 1

Answer #1

va volere he 4.1-6 (1-e [X106 x 2800) --357.14€ 0.683 = 1-e e 82.0 = 0.317 oo - 357.14 t = -1. 1988 -357.1rt t = 101488 357.1

Answer 2
