1. A 450 nF capacitor is initially uncharged. The capacitor is connected in series with a...

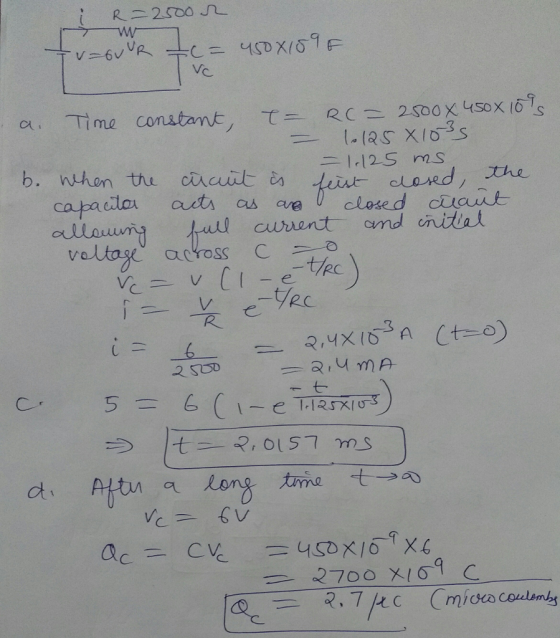

1. A 450 nF capacitor is initially uncharged. The capacitor is connected in series with a 2,500 resistor and a 6.00 V ideal battery. The circuit is “closed” allowing current to flow and the capacitor to start charging. a. What is the time constant of this RC circuit? b. What is the current through the resistor when the circuit is first “closed”? c. How much time is required for the voltage across the capacitor to reach 5.00 V? d. What is the charge on the capacitor after a very long time?
Homework Answers
Add Answer to:
1. A 450 nF capacitor is initially uncharged. The capacitor is connected in series with a...
A 5.00 μF capacitor that is initially uncharged is connected in series with a 6.40 kΩ...
A 5.00 μF capacitor that is initially uncharged is connected in series with a 6.40 kΩ resistor and an emf source with E= 140 V negligible internal resistance. Just after the circuit is completed, what is the voltage drop across the capacitor? Just after the circuit is completed, what is the voltage drop across the resistor? Just after the circuit is completed, what is the charge on the capacitor? Just after the circuit is completed, what is the current through...
EX-5 An uncharged capacitor and a resistor are connected in series to a battery, as in...
EX-5 An uncharged capacitor and a resistor are connected in series to a battery, as in the Figure. If ε = 12.0 V, C = 5.00 pF, and R = 8.00 x 1050 a) Find the time constant of the circuit, b) Find the maximum charge on the capacitor, c) Find the charge on the capacitor after 6.00 s, d) Find the potential difference across the resistor after 6.00 s. e) Find the current in the resistor at that time....
A 6.40 μF capacitor that is initially uncharged is connected in series with a 4400 Ω...
A 6.40 μF capacitor that is initially uncharged is connected in series with a 4400 Ω resistor and a 502 V emf source with negligible internal resistance. a. Just after the circuit is completed, what is the voltage drop across the capacitor? b. Just after the circuit is completed, what is the voltage drop across the resistor? c. Just after the circuit is completed, what is the charge on the capacitor? d. Just after the circuit is completed, what is...
A 1.2 µF capacitor, initially uncharged, is connected in series to a 12 V ideal battery...
A 1.2 µF capacitor, initially uncharged, is connected in series to a 12 V ideal battery and a 5 kΩ resistor. (a) What is the charge on the capacitor after a very long time? ( b) Derive expressions describing the evolution of the electric charge and of the current in time (Q(t) and I(t)). (c) How long does it take the capacitor to reach 95% of its final charge?
A capacitor of capacitance C= 2.5 μF is initially uncharged. It is connected in series with a switch of negligible resistance
A capacitor of capacitance C= 2.5 μF is initially uncharged. It is connected in series with a switch of negligible resistance, a resistor of resistance R= 14.5 kΩ, and a battery which provides a potential difference of VB = 160 V.Part (a) Immediately after the switch is closed, what is the voltage drop Vc, in volt across the capacitor?Part (b) Immediately after the switch is closed, what is the voltage drop VR, in volt: across the resistor?Part (c) Immediately after...
A 6.0 V battery, a 220 W resistor, a 680 µF capacitor (initially uncharged), and a...
A 6.0 V battery, a 220 W resistor, a 680 µF capacitor (initially uncharged), and a switch (initially open) are all connected in series, forming a loop. At t = 0 the switch is closed. (a) Find the initial current in the loop. (b) Find the charge on the capacitor at t = 0.100 s. (c) At what point in time will the voltage across the resistor equal 5.0 V? (d) What will be the maximum energy stored in the...
A 6.00 μFcapacitor that is initially uncharged is connected in series with a 4400 Ωresistor and...
A 6.00 μFcapacitor that is initially uncharged is connected in series with a 4400 Ωresistor and a 503 Vemf source with negligible internal resistance. Part A: Just after the circuit is completed, what is the voltage drop across the capacitor? Part B: Just after the circuit is completed, what is the voltage drop across the resistor? Part C: Just after the circuit is completed, what is the charge on the capacitor? Part D: Just after the circuit is completed, what...
A capacitor that is initially uncharged is connected in series with a resistor and an emf...
A capacitor that is initially uncharged is connected in series with a resistor and an emf of source epsilon = 100 V and negligible internal resistance. Just after the circuit is completed, the current through the resistor is 7.1 x 10^-3 A. the time constant for the circuit is 6.0 s. What is the resistance of the resistor? _____ Ohm What is the capacitance of the capacitor __________ MuF
A 1.42 mF capacitor is initially uncharged. It is connected in series with a 4.968 kΩ resistor. The combination is then connected to a 14.5 V ideal battery. How much energy will be stored in the capac...
A 1.42 mF capacitor is initially uncharged. It is connected in series with a 4.968 kΩ resistor. The combination is then connected to a 14.5 V ideal battery. How much energy will be stored in the capacitor at the moment when the current through the circuit is 0.68588969404187 mA?
A 4.60-mu F capacitor that is initially uncharged is connected in series with a 7.50-k ohm...
A 4.60-mu F capacitor that is initially uncharged is connected in series with a 7.50-k ohm resistor and an emf source with epsilon = 245 V and negligible internal resistance. Just after the circuit is completed, what arc (a) the voltage drop across the capacitor; (b) the voltage drop across the resistor; (c) the charge on the capacitor; (d) the current through the resistor? (c) A long time after the circuit is completed (after many time constants) what are the...
EX-5 An uncharged capacitor and a resistor are connected in series to a battery, as in the Figure. If ε = 12.0 V, C = 5.00 pF, and R = 8.00 x 1050 a) Find the time constant of the circuit, b) Find the maximum charge on the capacitor, c) Find the charge on the capacitor after 6.00 s, d) Find the potential difference across the resistor after 6.00 s. e) Find the current in the resistor at that time....
A capacitor that is initially uncharged is connected in series with a resistor and an emf of source epsilon = 100 V and negligible internal resistance. Just after the circuit is completed, the current through the resistor is 7.1 x 10^-3 A. the time constant for the circuit is 6.0 s. What is the resistance of the resistor? _____ Ohm What is the capacitance of the capacitor __________ MuF
A 4.60-mu F capacitor that is initially uncharged is connected in series with a 7.50-k ohm resistor and an emf source with epsilon = 245 V and negligible internal resistance. Just after the circuit is completed, what arc (a) the voltage drop across the capacitor; (b) the voltage drop across the resistor; (c) the charge on the capacitor; (d) the current through the resistor? (c) A long time after the circuit is completed (after many time constants) what are the...
