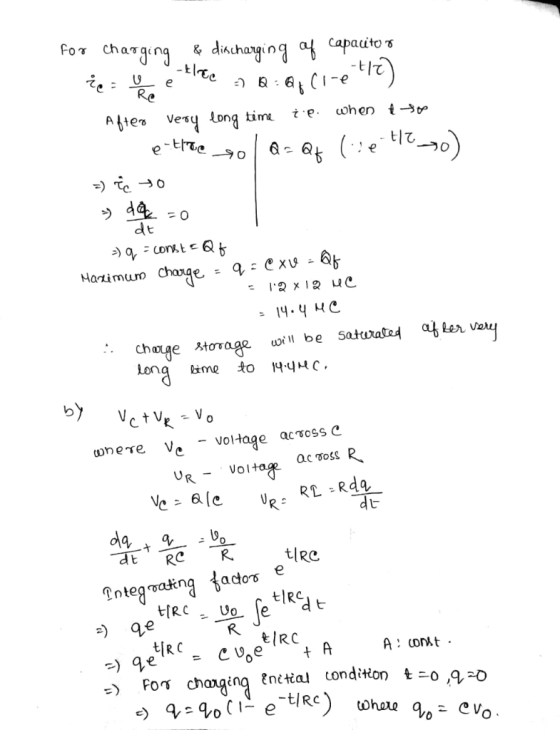

A 1.2 µF capacitor, initially uncharged, is connected in series to a 12 V ideal battery...
A 1.2 µF capacitor, initially uncharged, is connected in series to a 12 V ideal battery and a 5 kΩ resistor.
(a) What is the charge on the capacitor after a very long time? (
b) Derive expressions describing the evolution of the electric charge and of the current in time (Q(t) and I(t)).

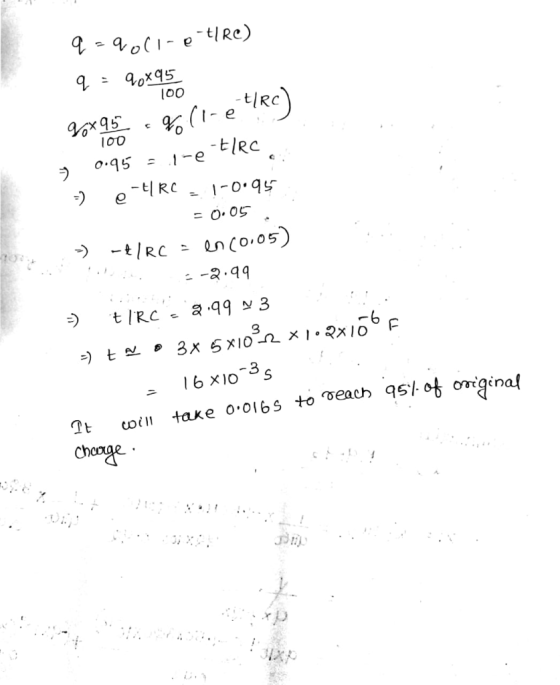

(c) How long does it take the capacitor to reach 95% of its final charge?
Homework Answers
Add Answer to:
A 1.2 µF capacitor, initially uncharged, is connected in series
to a 12 V ideal battery...
1. A 450 nF capacitor is initially uncharged. The capacitor is connected in series with a...
1. A 450 nF capacitor is initially uncharged. The capacitor is connected in series with a 2,500 resistor and a 6.00 V ideal battery. The circuit is “closed” allowing current to flow and the capacitor to start charging. a. What is the time constant of this RC circuit? b. What is the current through the resistor when the circuit is first “closed”? c. How much time is required for the voltage across the capacitor to reach 5.00 V? d....
A 6.0 V battery, a 220 W resistor, a 680 µF capacitor (initially uncharged), and a...
A 6.0 V battery, a 220 W resistor, a 680 µF capacitor (initially uncharged), and a switch (initially open) are all connected in series, forming a loop. At t = 0 the switch is closed. (a) Find the initial current in the loop. (b) Find the charge on the capacitor at t = 0.100 s. (c) At what point in time will the voltage across the resistor equal 5.0 V? (d) What will be the maximum energy stored in the...
A 1.42 mF capacitor is initially uncharged. It is connected in series with a 4.968 kΩ resistor. The combination is then connected to a 14.5 V ideal battery. How much energy will be stored in the capac...
A 1.42 mF capacitor is initially uncharged. It is connected in series with a 4.968 kΩ resistor. The combination is then connected to a 14.5 V ideal battery. How much energy will be stored in the capacitor at the moment when the current through the circuit is 0.68588969404187 mA?
a 50 μF capacitor initially uncharged is connected through a 300 resistor to a 12V battery....
a 50 μF capacitor initially uncharged is connected through a
300 resistor to a
12V battery. FInd the final charge on the capacitor. How long does
it take the capacitor to reach half its final charge?
An uncharged 1.0-μF capacitor is connected in series with a 23-kΩ resistor, an ideal 7.0-V battery,...
An uncharged 1.0-μF capacitor is connected in series with a 23-kΩ resistor, an ideal 7.0-V battery, and an open switch. What is the voltage across the capacitor 11ms after closing the switch? A) 2.6V B) 2.7V C) 1.6V D) 0.62V
A capacitor of 4 μF initially uncharged is connected with a battery of 12 V and...
A capacitor of 4 μF initially uncharged is connected with a battery of 12 V and a 10 MW resistor. a) The maximum charge on the capacitor is? b) The maximum current is? c) The capacitive time constant is?
A 1 000-V battery, a 3 000-Ω resistor, and a 0.50-µF capacitor are connected in series...
A 1 000-V battery, a 3 000-Ω resistor, and a 0.50-µF capacitor are connected in series with a switch. The capacitor is initially uncharged. What is the value of the current the moment after the switch is closed?
A 1 000-V battery, a 3 000-Ω resistor, and a 0.50-µF capacitor are connected in series...
A 1 000-V battery, a 3 000-Ω resistor, and a 0.50-µF capacitor are connected in series with a switch. The capacitor is initially uncharged. What is the value of the current the moment after the switch is closed?
An uncharged capacitor and a resistor are connected in series to a source of emf. If...
An uncharged capacitor and a resistor are connected in series to a source of emf. If e m f = 6.00 V, C = 18.0 µF, and R = 100 Ω, find the following. (a) the time constant of the circuit ms (b) the maximum charge on the capacitor µC (c) the charge on the capacitor at a time equal to one time constant after the battery is connected µC
A battery, a resistor of resistance R, and an initially uncharged capacitor of capacitance C are...
A battery, a resistor of resistance R, and an initially uncharged capacitor of capacitance C are connected in series. At what time does the capacitor voltage reach 90% of the battery voltage? Assume that the battery has no internal resistance.
a 50 μF capacitor initially uncharged is connected through a
300 resistor to a
12V battery. FInd the final charge on the capacitor. How long does
it take the capacitor to reach half its final charge?
