A 6.0 V battery, a 220 W resistor, a 680 µF capacitor (initially uncharged), and a...

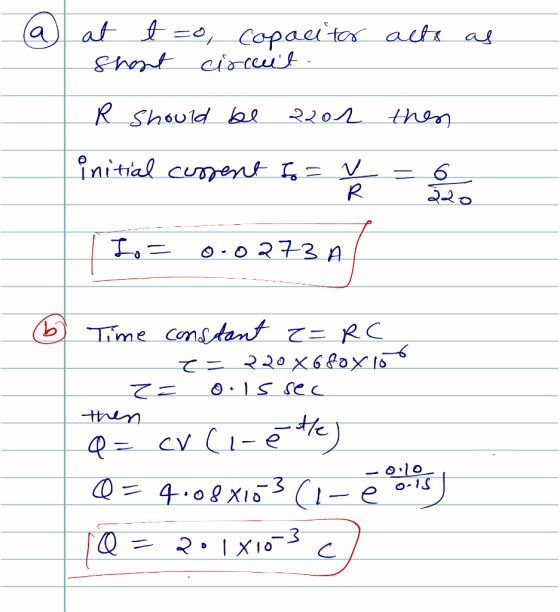

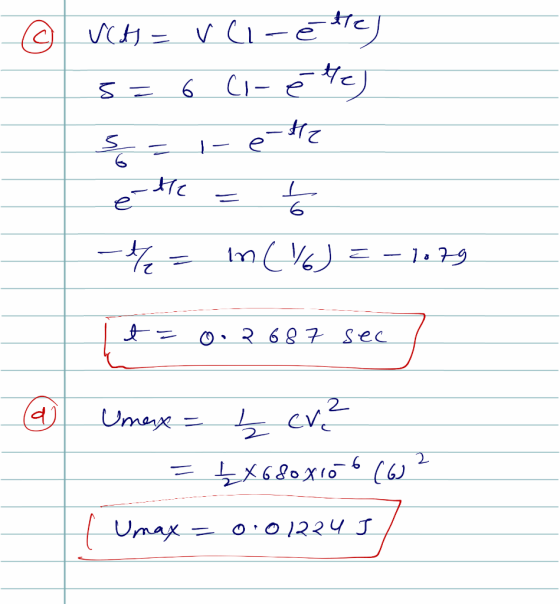

A 6.0 V battery, a 220 W resistor, a 680 µF capacitor (initially uncharged), and a switch (initially open) are all connected in series, forming a loop. At t = 0 the switch is closed. (a) Find the initial current in the loop. (b) Find the charge on the capacitor at t = 0.100 s. (c) At what point in time will the voltage across the resistor equal 5.0 V? (d) What will be the maximum energy stored in the capacitor if the switch remains closed?
9. In the circuit described above the battery is removed after several minutes have passed. Then the loop is completed without the battery so that the capacitor is connected to the resistor. (a) How much time is required to discharge the capacitor by 99% (i.e. it retains only 1% of its original charge)? (b) What is the current at that point?
Homework Answers
The charging and discharging rc circuit
