using a complex number approach analyze the mechanism shown
Homework Answers
Request Answer!
We need at least 10 more requests to produce the answer.
0 / 10 have requested this problem solution
The more requests, the faster the answer.
8. Using the complex number approach, analyze the mechanism shown. a. Determine the series of scalar...
8. Using the complex number approach, analyze the mechanism shown. a. Determine the series of scalar equations which must be used to solve for the follower (Link 3) velocity and acceleration assuming the distance AB, the offset D, the angular position 0, angular velocity o, and angular acceleration a of link 2 is known b. If AB 0.6 n., D = 0.25 in., 0 25, and Link 2 is known to be rotating clockwise at a constant rate of 40...
u's 8. Using the complex number approach, analyze the mechanism shown. a. Determine the series of...
u's 8. Using the complex number approach, analyze the mechanism shown. a. Determine the series of scalar equations which must be used to solve for the follower (Link 3) velocity and acceleration assuming the distance AB, the offset D, the angular position 0, angular velocity o, and angular acceleration a of link 2 is known. b. If AB = 0.6 in., D= 0.25 in., 0= 25', and Link 2 is known to be rotating clockwise at a constant rate of...

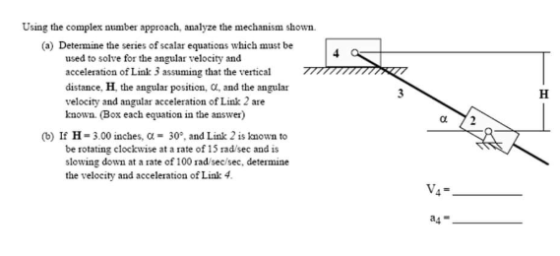

Using the complex number approach, analyze the mechanism shown. (a) Determine the series of scalar equations which must be used to solve for the angular velocity and acceler distance. H. the angular position velocity and angular acceleration of Link 2 ane
Problem # 4 ( CLO 3) (25 Pts). Using Complex Numbers Methed. In the mechanism shown,...
Problem # 4 ( CLO 3) (25 Pts). Using Complex Numbers Methed. In the mechanism shown, AB-8 em. CB BD-4 cm 1 fik 4 is traanslating riahtward with constant velocity of 5 m/sec.. At an instant when 6,-45, determine: Distance AC and the angular position of link 2 b) The angular velocities of links 2 and 3. Velocity of point D. c) B 03
Problem # 4 ( CLO 3) (25 Pts). Using Complex Numbers Methed. In the mechanism shown,...
Problem # 4 ( CLO 3) (25 Pts). Using Complex Numbers Methed. In the mechanism shown,...
Problem # 4 ( CLO 3) (25 Pts). Using Complex Numbers Methed. In the mechanism shown, AB-8 em. CB BD-4 cm 1 fik 4 is traanslating riahtward with constant velocity of 5 m/sec.. At an instant when 6,-45, determine: Distance AC and the angular position of link 2 b) The angular velocities of links 2 and 3. Velocity of point D. c) B 03
Problem # 4 ( CLO 3) (25 Pts). Using Complex Numbers Methed. In the mechanism shown,...
kinematic Problem #4 [CLO 3] [25 Pts). Using Complex Numbers Method, In the mechanism shown, AB...
kinematic
Problem #4 [CLO 3] [25 Pts). Using Complex Numbers Method, In the mechanism shown, AB = 8 cm, CB BD 4 em. If link 4 is translating rightward with constant velocity of 5 m/sec. At an instant when 0= 45, determine: a) Distance AC and the angular position of link 2 b) The angular velocities of links 2 and 3. w c) Velocity of point D. D 3 A 03
