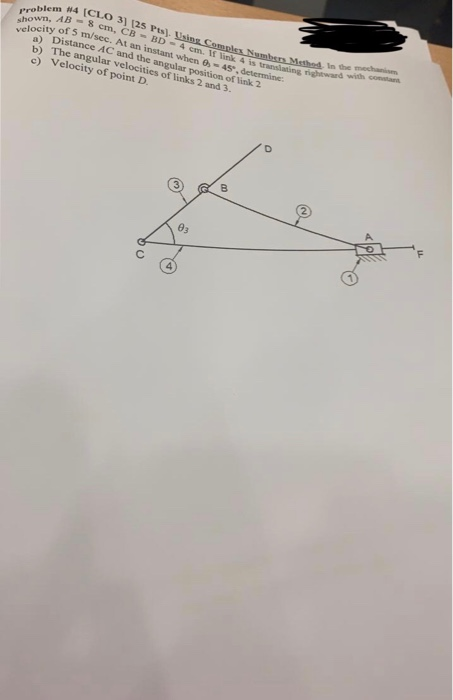

Problem # 4 ( CLO 3) (25 Pts). Using Complex Numbers Methed. In the mechanism shown,...
Problem # 4 ( CLO 3) (25 Pts). Using Complex Numbers Methed. In the mechanism shown, AB-8 em. CB BD-4 cm 1 fik 4 is traanslating riahtward with constant velocity of 5 m/sec.. At an instant when 6,-45, determine: Distance AC and the angular position of link 2 b) The angular velocities of links 2 and 3. Velocity of point D. c) B 03
Problem # 4 ( CLO 3) (25 Pts). Using Complex Numbers Methed. In the mechanism shown,...
kinematic

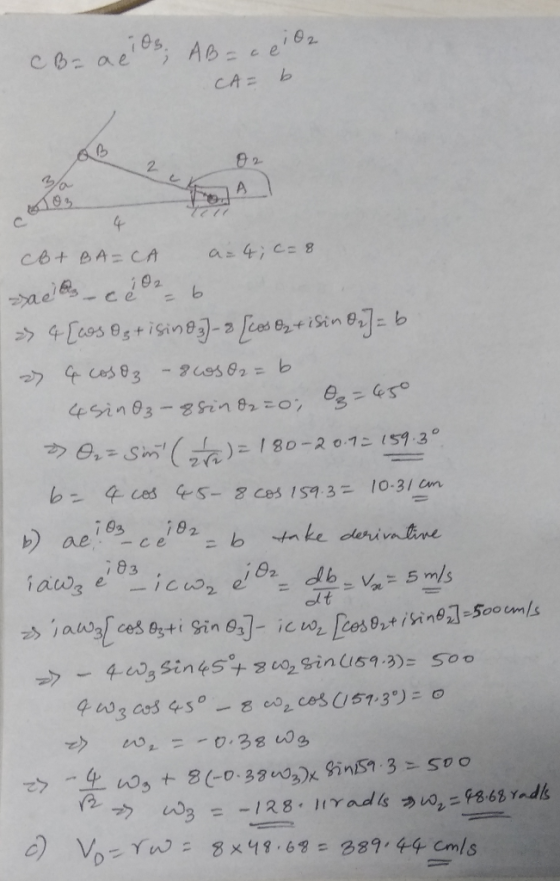

Problem #4 [CLO 3] [25 Pts). Using Complex Numbers Method, In the mechanism shown, AB = 8 cm, CB BD 4 em. If link 4 is translating rightward with constant velocity of 5 m/sec. At an instant when 0= 45, determine: a) Distance AC and the angular position of link 2 b) The angular velocities of links 2 and 3. w c) Velocity of point D. D 3 A 03
Problem #4 [CLO 3] [25 Pts). Using Complex Numbers...
u's 8. Using the complex number approach, analyze the mechanism shown. a. Determine the series of scalar equations which must be used to solve for the follower (Link 3) velocity and acceleration assuming the distance AB, the offset D, the angular position 0, angular velocity o, and angular acceleration a of link 2 is known. b. If AB = 0.6 in., D= 0.25 in., 0= 25', and Link 2 is known to be rotating clockwise at a constant rate of...
8. Using the complex number approach, analyze the mechanism shown. a. Determine the series of scalar equations which must be used to solve for the follower (Link 3) velocity and acceleration assuming the distance AB, the offset D, the angular position 0, angular velocity o, and angular acceleration a of link 2 is known b. If AB 0.6 n., D = 0.25 in., 0 25, and Link 2 is known to be rotating clockwise at a constant rate of 40...
3. Question 1. According to the question
Exam duration is 120 minutes and questlons u Return mechanism is shown with dimensions. At the given instant crank AB is on. For a graphical position analysis, draw the mechanism to scale and B and C, and angle θ4 . Then, write down the loop equation of he vector loop shown below and separate the loop equation into en by solving the component equations, calculate L and 04. Do the results 1) In...
Problem (3) The velocity of the collar C is vc 2.45 m/s at the instant shown (Link CB is horizontal at this instant) Find the angular velocity of link CB and the angular velocity of link AB at the instant shown using: 350 mm Ve 2.45 m/s a) the relative velocity equation b) the instantaneous center (IC) 45° 60°
QUESTION 1 The slider block C moves at 8 m/s down the inclined groove. Determine the angular velocities of links AB and BC.at the instant shown QUESTION 3 At the instant shown. θ-: 60p. and rod AB is subjected to a deceleration of 16 m/s when the velocity is 10 m s. Determine the angular velocity and angular acceleration of link CD at this instant QUESTION 2 The shaper mechanism is designed to give a slow cutting stroke and a...
problem 3
the piston
1 1 Prob. 3 If the piston in Prob. 3 weighs 4 lbs, an and determine the total mechanical energy of the system at th d each link weighs 2 lbs, select a datum e instant shown Prob. 4 Consider a slender unifo homoann Prob. 2 Determine the angular velocities and accelerations for the links AB and BP in the position shown at an instant when the piston P has a velocity of 2 fps to...
Important Note: • It is required to solve each problem in separate sheet. • You are requested to solve problems 1, 3, and 5 using AutoCAD. Problem (1) In the mechanism shown, link 2 is rotating CW at the constant rate of 4 rad/s. In the position shown, is 53. Determine: vc, 03, 04. Link Lengths: AB = 100 mm, BC = 160 mm, CD = 200 mm 160 mm 220 mm DO Problem (2) In the mechanism shown, link...
1. The offset slider-crank mechanism illustrated in Figure is driven by slider 4 at a velocity Ve-101 m/s at the position shown. Determine the instantaneous velocity of point D and the angular velocities of links 2 and 3. Show details of your work to get full marks (20 points) 50 140 2 45. A(G 20 50 1 of
1. The offset slider-crank mechanism illustrated in Figure is driven by slider 4 at a velocity Ve-101 m/s at the position shown....
