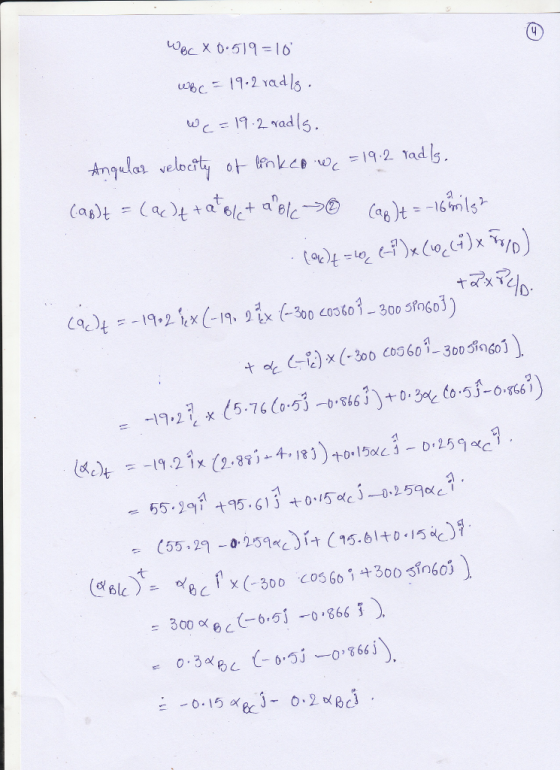

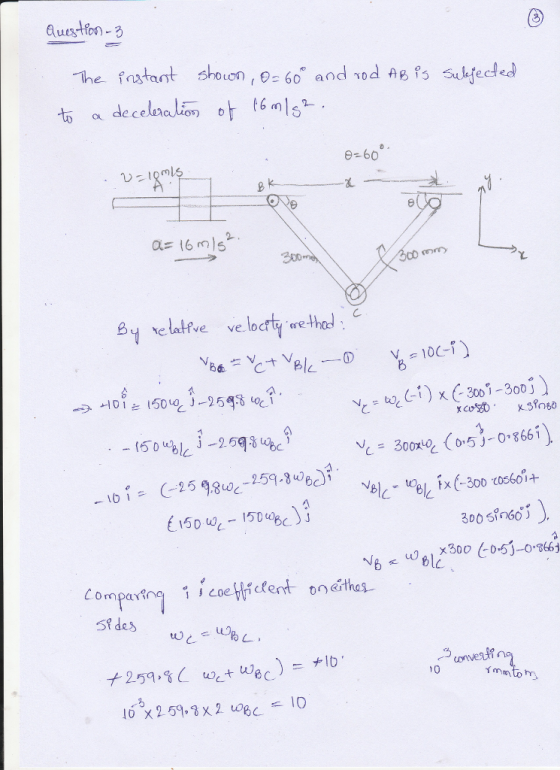

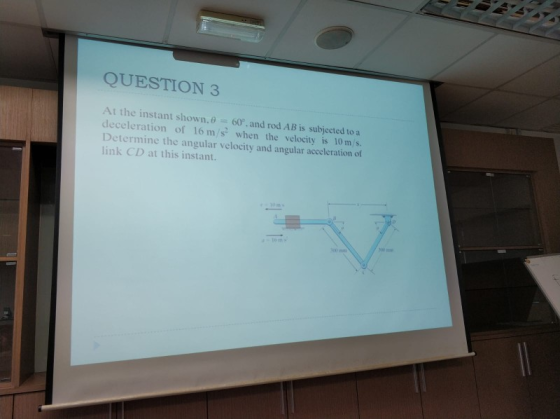

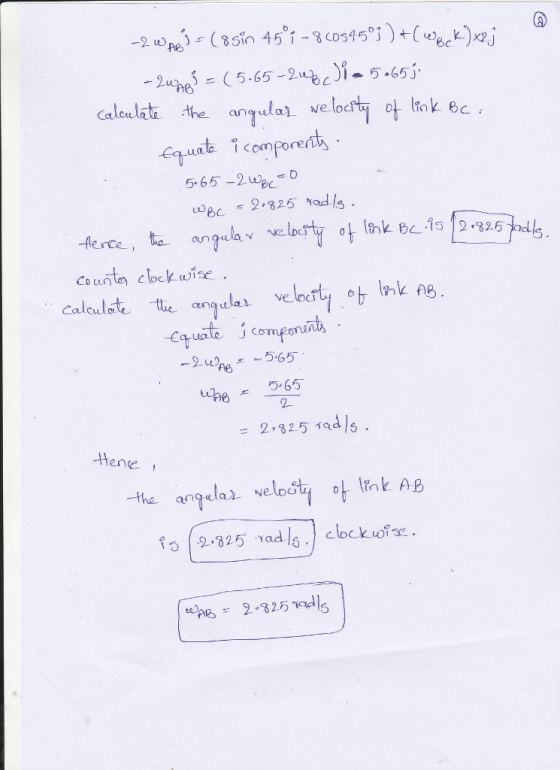

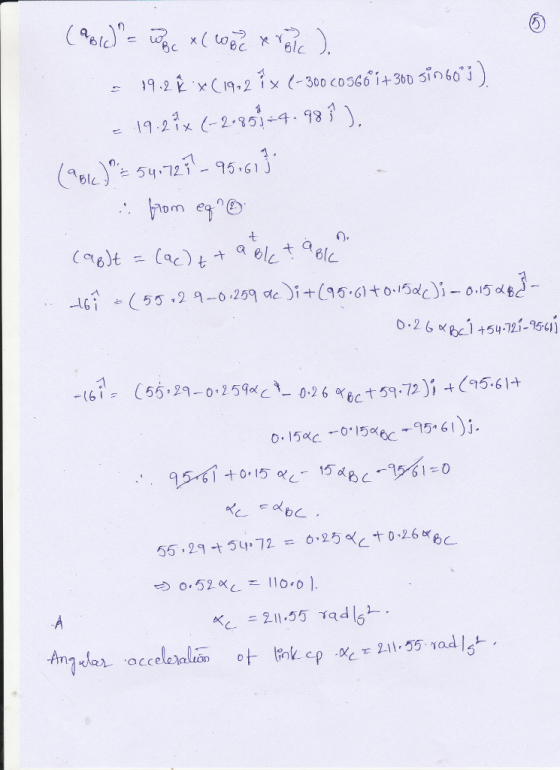

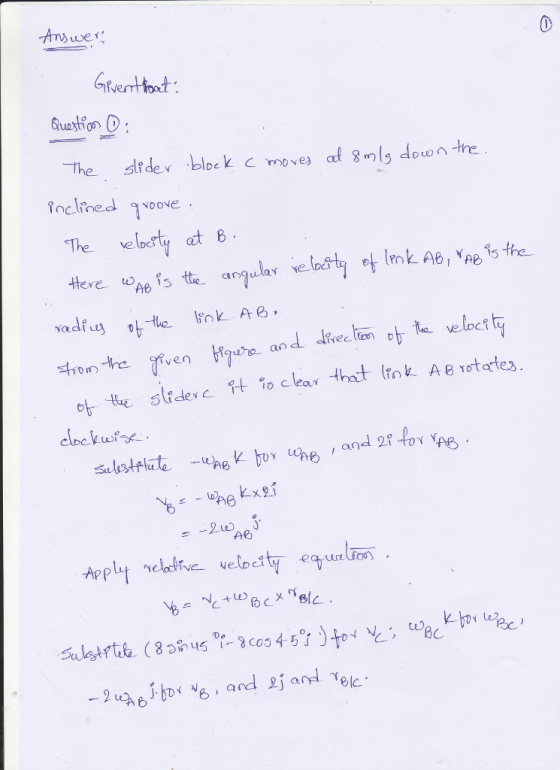

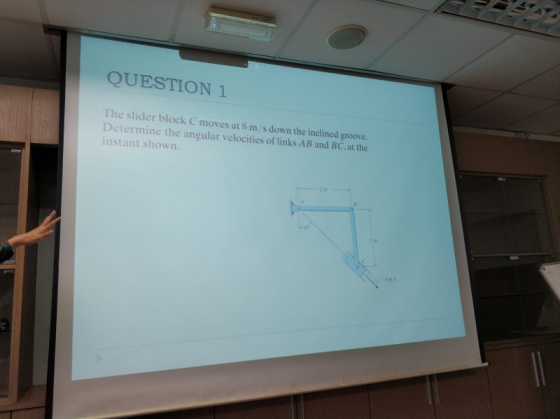

QUESTION 1 The slider block C moves at 8 m/s down the inclined groove. Determine the...

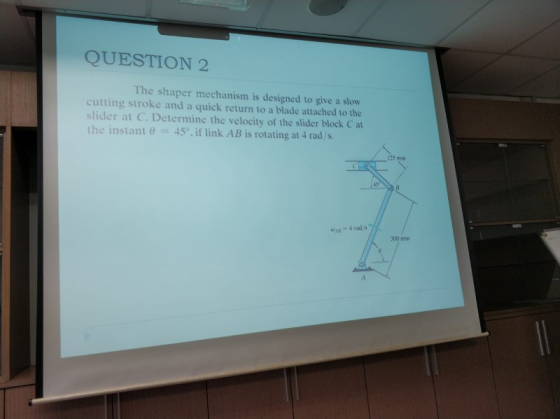

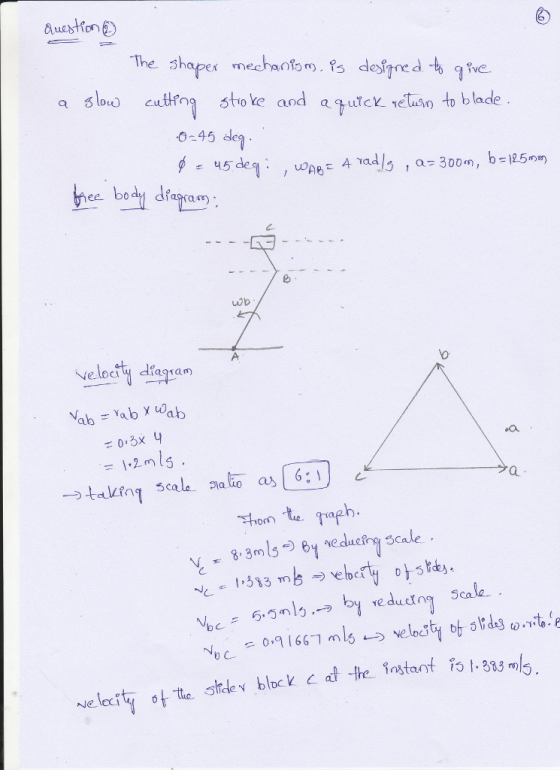

The shaper mechanism is designed to give a slow cutting stroke and a quick return to a blade attached to the slider at C. (Figure 1). Part A Determine the angular velocity of the link CB at the instant shown measured clockwise, if the link AB is rotating at 4.6 rad/s.
BONUS QUESTIONThe shaper mechanism is designed to give a slow cutting stroke and a quick return to a blade attached to a slider at C. What angular velocity of AB (in RPM and in radians/sec) is needed if the piston is required to move to the right at 1.2 m/sec at the instant shown?
The velocity of Block C is Vc = 5m/s constant with the direction
shown in the figure Q1, determine the angular velocity and angular
acceleration of the link AB and link BC of the instant shown
vc 6 m/s 300 450 800 cm 60이 500 cm Figure Q1 the velocity of block C is vc 5 m/s constant with the direction shown in the Figure , determine the angular velocity and angular acceleration of the link AB and link BC...
If bar AB has an angular velocity of 6 rad/s,determine the velocity of the .slider block C at the instant shown 30° 200 mm B 150 mm WAB = 6 rad/s 60° 0.2 m/s O 1.5 m/s 12.4 m/s 28 m/s 0 36.4 m/s o
The "quick-return" mechanism consists of a crank AB, slider block B, and slotted link CD. If the crank has the angular motion shown, determine the angular motionof the slotted link at this instant. (Answer Wcd = 0.866rad/s, Acd = 3.23 rad/s2)Wab= 3 rad/sαab= 9 rad/s2θ = 30o
The slider block A is moving downward at
vA = 5.5 m/s . (Figure 1)
Determine the x and y components of the
velocity of the block B at the instant shown.
Determine the x and y components of the
velocity of the block C at the instant shown.
The slider block A is moving downward at vA 5.5 m/s. (Figure 1) Part A Determine the z and y components of the velocity of the block B at the instant...
Please help with the following dynamic problem and show all
work. Thank you
40 mm Problem 2: Slipping If the slider block C 's center is fixed to the disk with a pin joint, that has a constant counterclockwise angular velocity of 4 rad/s, determine the angular velocity and angular acceleration of the slotted arm AB at the instant shown. Do this using the relative motion analysis and the contact condition 60 mm 180 mm 60°
40 mm Problem 2:...
Bar AB has an angular velocity ω AB = 6 rad/s
Part A
Determine the velocity of the slider block C at the
instant shown.
Express your answer to three significant figures and include the
appropriate units. Enter positive value if the velocity is directed
to the left and negative value if the velocity is directed to the
right.
200 mm 500 mm θ = 45° 30°
200 mm 500 mm θ = 45° 30°
3. Link 2 (AB) of the slider crank inversion shown in Figure 3 is rotating at a constant 2 11.00k(rad/s). Determine the angular velocity of link 4 (DC) at the instant shown in the figure. Hints: The angle between links 3 and 4 is fized so they have the same angular velocity. Consider Cs as point on Link 3 sliding through the bearing on link 4. (100 points) C3 90° A = (0,0). Figure 3: Slider crank inversion. (110.09,0) cm....
homework help. please show steps with answer! Thank you
Slider block A moves at 20 m/s inside a 45-degree slot as shown. Calculate the velocity (magnitude and direction) of slider block D and the angular velocity of link CD. 150 mm 45 300 mm 45° = 20 m/s 200 mm 60° 30° 45%
