homework help. please show steps with answer! Thank you

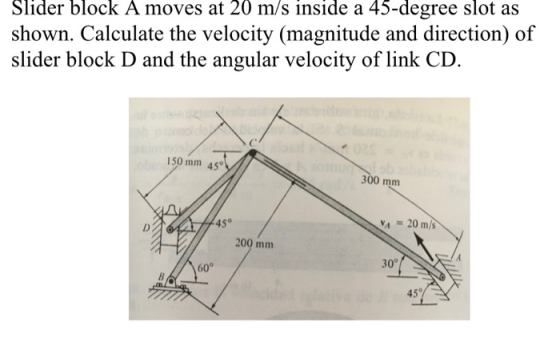

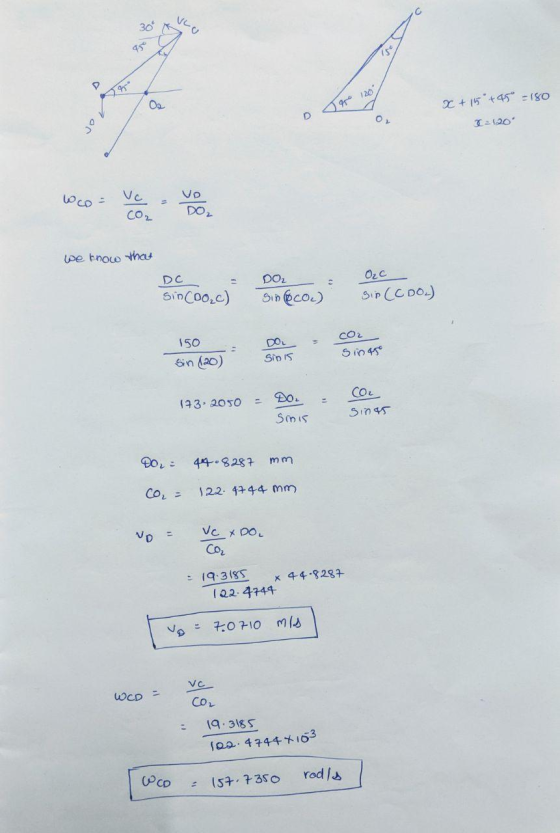

Slider block A moves at 20 m/s...
QUESTION 1 The slider block C moves at 8 m/s down the inclined groove. Determine the...
QUESTION 1 The slider block C moves at 8 m/s down the inclined groove. Determine the angular velocities of links AB and BC.at the instant shown QUESTION 3 At the instant shown. θ-: 60p. and rod AB is subjected to a deceleration of 16 m/s when the velocity is 10 m s. Determine the angular velocity and angular acceleration of link CD at this instant QUESTION 2 The shaper mechanism is designed to give a slow cutting stroke and a...
If bar AB has an angular velocity of 6 rad/s,determine the velocity of the .slider block...
If bar AB has an angular velocity of 6 rad/s,determine the velocity of the .slider block C at the instant shown 30° 200 mm B 150 mm WAB = 6 rad/s 60° 0.2 m/s O 1.5 m/s 12.4 m/s 28 m/s 0 36.4 m/s o
Homework 24.1: Two rotating bars are connected by a slider block P. The configuration at the...
Homework 24.1: Two rotating bars are connected by a slider block P. The configuration at the instant of interest is: a = 20°, B = 50°, and b = 10 in. The bar rotating about B moves at constant clockwise angular velocity of 5 rad/s. Find the angular velocity of the bar rotating about A and the relative velocity of the slider block P with respect to the bar on which it slides. B 11
40 mm Problem 2: Slipping If the slider block C 's center is fixed to the disk with a pin joint, ...
Please help with the following dynamic problem and show all
work. Thank you
40 mm Problem 2: Slipping If the slider block C 's center is fixed to the disk with a pin joint, that has a constant counterclockwise angular velocity of 4 rad/s, determine the angular velocity and angular acceleration of the slotted arm AB at the instant shown. Do this using the relative motion analysis and the contact condition 60 mm 180 mm 60°
40 mm Problem 2:...
Slider D is moving down the vertical slot with the constant velocity vp 2 m/s. For...
Slider D is moving down the vertical slot with the constant velocity vp 2 m/s. For the position shown in the figure below, determine the angular acceleration of bar AB and the angular acceleration of bar BD. VDF 300 mm /V 180 mm
The slider block A is moving downward at vA = 5.5 m/s . (Figure 1) Determine...
The slider block A is moving downward at
vA = 5.5 m/s . (Figure 1)
Determine the x and y components of the
velocity of the block B at the instant shown.
Determine the x and y components of the
velocity of the block C at the instant shown.
The slider block A is moving downward at vA 5.5 m/s. (Figure 1) Part A Determine the z and y components of the velocity of the block B at the instant...
There is a typing mistake take AB = 300 mm 1. Block B of the mechanism...
There is a typing mistake take AB = 300 mm
1. Block B of the mechanism is pin connected to the link BC while free to move within the slot of member AD. If link BC is rotating at a constant rate of Wac = 4 rad/s, determine the angular velocity and the Coriolis acceleration of member AD at the instant shown. BC= 200 mm, and AB = 300 m. (30 point) -60
Bar AB has an angular velocity ω AB = 6 rad/s Part A Determine the velocity of the slider block C at the instant shown. Express your answer to three significant figures and include the appropriate un...
Bar AB has an angular velocity ω AB = 6 rad/s
Part A
Determine the velocity of the slider block C at the
instant shown.
Express your answer to three significant figures and include the
appropriate units. Enter positive value if the velocity is directed
to the left and negative value if the velocity is directed to the
right.
200 mm 500 mm θ = 45° 30°
200 mm 500 mm θ = 45° 30°
The velocity of Block C is Vc = 5m/s constant with the direction shown in the figure Q1, determine the angular velocity...
The velocity of Block C is Vc = 5m/s constant with the direction
shown in the figure Q1, determine the angular velocity and angular
acceleration of the link AB and link BC of the instant shown
vc 6 m/s 300 450 800 cm 60이 500 cm Figure Q1 the velocity of block C is vc 5 m/s constant with the direction shown in the Figure , determine the angular velocity and angular acceleration of the link AB and link BC...
Block B of the mechanism is pin connected to the link BC while free to move...
Block B of the mechanism is pin connected to the link BC while free to move within the slot of member AD. If link BC is rotating at a constant rate of WBC = 4 rad/s, determine the angular velocity and the Coriolis acceleration of member AD at the instant shown. BC= 200 mm, and AB = 300 m. (30 point) D с ---600--0A
QUESTION 1 The slider block C moves at 8 m/s down the inclined groove. Determine the angular velocities of links AB and BC.at the instant shown QUESTION 3 At the instant shown. θ-: 60p. and rod AB is subjected to a deceleration of 16 m/s when the velocity is 10 m s. Determine the angular velocity and angular acceleration of link CD at this instant QUESTION 2 The shaper mechanism is designed to give a slow cutting stroke and a...
If bar AB has an angular velocity of 6 rad/s,determine the velocity of the .slider block C at the instant shown 30° 200 mm B 150 mm WAB = 6 rad/s 60° 0.2 m/s O 1.5 m/s 12.4 m/s 28 m/s 0 36.4 m/s o
Homework 24.1: Two rotating bars are connected by a slider block P. The configuration at the instant of interest is: a = 20°, B = 50°, and b = 10 in. The bar rotating about B moves at constant clockwise angular velocity of 5 rad/s. Find the angular velocity of the bar rotating about A and the relative velocity of the slider block P with respect to the bar on which it slides. B 11
Please help with the following dynamic problem and show all
work. Thank you
40 mm Problem 2: Slipping If the slider block C 's center is fixed to the disk with a pin joint, that has a constant counterclockwise angular velocity of 4 rad/s, determine the angular velocity and angular acceleration of the slotted arm AB at the instant shown. Do this using the relative motion analysis and the contact condition 60 mm 180 mm 60°
40 mm Problem 2:...
Slider D is moving down the vertical slot with the constant velocity vp 2 m/s. For the position shown in the figure below, determine the angular acceleration of bar AB and the angular acceleration of bar BD. VDF 300 mm /V 180 mm
The slider block A is moving downward at
vA = 5.5 m/s . (Figure 1)
Determine the x and y components of the
velocity of the block B at the instant shown.
Determine the x and y components of the
velocity of the block C at the instant shown.
The slider block A is moving downward at vA 5.5 m/s. (Figure 1) Part A Determine the z and y components of the velocity of the block B at the instant...
There is a typing mistake take AB = 300 mm
1. Block B of the mechanism is pin connected to the link BC while free to move within the slot of member AD. If link BC is rotating at a constant rate of Wac = 4 rad/s, determine the angular velocity and the Coriolis acceleration of member AD at the instant shown. BC= 200 mm, and AB = 300 m. (30 point) -60
Bar AB has an angular velocity ω AB = 6 rad/s
Part A
Determine the velocity of the slider block C at the
instant shown.
Express your answer to three significant figures and include the
appropriate units. Enter positive value if the velocity is directed
to the left and negative value if the velocity is directed to the
right.
200 mm 500 mm θ = 45° 30°
200 mm 500 mm θ = 45° 30°
The velocity of Block C is Vc = 5m/s constant with the direction
shown in the figure Q1, determine the angular velocity and angular
acceleration of the link AB and link BC of the instant shown
vc 6 m/s 300 450 800 cm 60이 500 cm Figure Q1 the velocity of block C is vc 5 m/s constant with the direction shown in the Figure , determine the angular velocity and angular acceleration of the link AB and link BC...
Block B of the mechanism is pin connected to the link BC while free to move within the slot of member AD. If link BC is rotating at a constant rate of WBC = 4 rad/s, determine the angular velocity and the Coriolis acceleration of member AD at the instant shown. BC= 200 mm, and AB = 300 m. (30 point) D с ---600--0A
