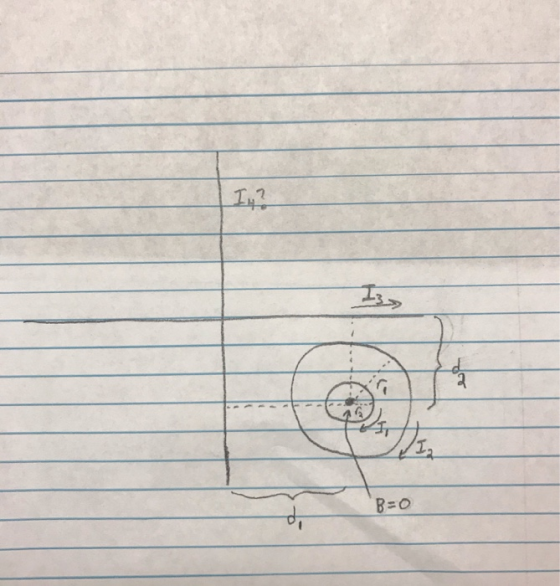

There are two crossed wires and two wire loops, the given currents are inner loop = I1, outer loop=I2, and horizontal wire is I3. the radius of the large loop=r1 and the radius of the small loop=r2. the distance between the center of the concentric loops and the horizontal wire is d2 and the distance from the center of the loops to the vertical wire is d1. The magnetic field (B) at the center of the concentric loops is 0. the directions of the I1,I2 and I3 are shown with arrows. what is the magnitude and direction of I4 in terms of the symbols given?
B=0
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

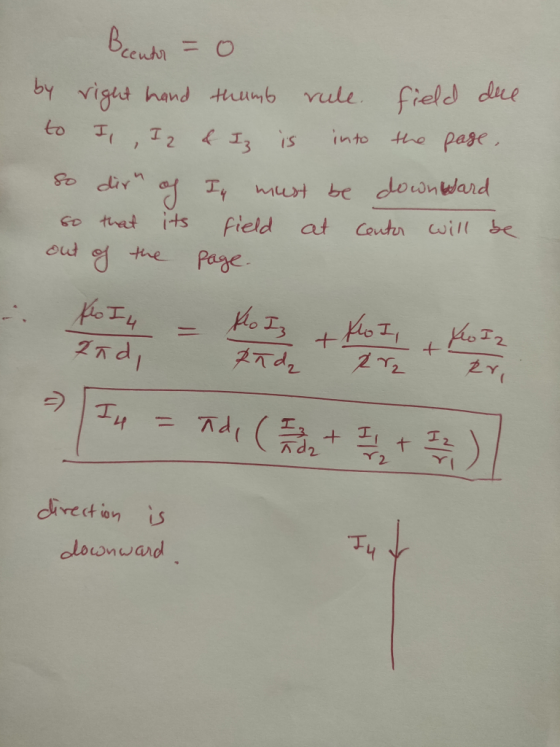

Beendr = 0 by right hand thumb rule field due to I , Iz & Iz is into the pase, So dir of I must be downward so that its fiel

0 0
