Three parallel current-carrying wires are shown in the figure below. The currents in each wire are...

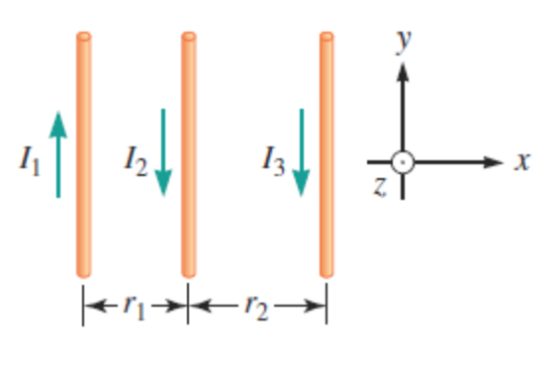

Three parallel current-carrying
wires are shown in the figure below. The currents in each wire are
I1 = 0.460 A, I2 = 0.710 A, and I3 = 0.260 A. If the wires are
separated by distances r1 = 0.185 m and r2 = 0.290 m, find the net
magnetic force per unit length on the middle wire due to the other
wires. (Express your answer in vector form.)

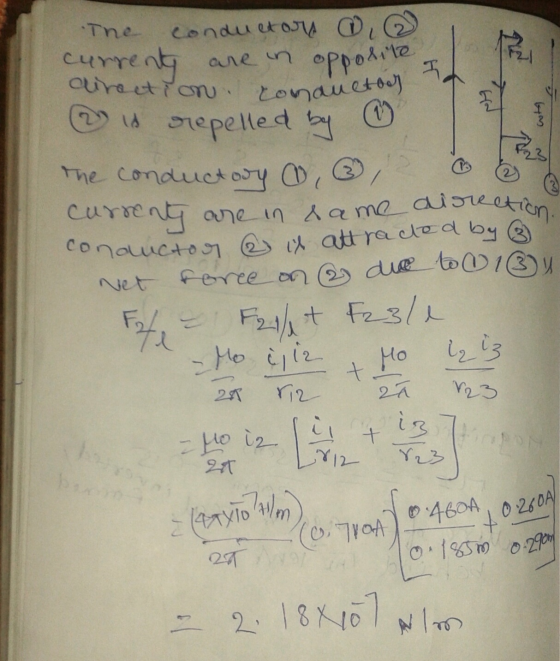

Homework Answers
Add Answer to:
Three parallel current-carrying
wires are shown in the figure below. The currents in each wire are...
The figure shows three long, parallel, current-carrying wires. The current directions are indicated for currents I1...
The figure shows three long, parallel, current-carrying wires.
The current directions are indicated for currents
I1 and I3. The three
currents have equal magnitudes. In the space provided below write
the direction of the currentI2 ( it
could be INTO the page or OUT of the page, it is your choice!).
Then, accordingly to your selection of
I2 , write the direction of the net
force acting on the wire I3 due to the
presence of the other two wires....
The figure shows three long, parallel, current-carrying wires perpendicular to the page. In the picture, the...
The figure shows three long, parallel, current-carrying wires
perpendicular to the page. In the picture, the current directions
are indicated for I1 and I3. The three currents have equal
magnitudes. The direction of the current I2 is INTO the page.
Determine the direction of the net force acting on the wire I3 due
to the presence of the other two wires. Group of answer choices
left
right
Up
down
The figure shows three long, parallel, current-carrying wires perpendicular to the...
The figure below shows two long parallel, straight wires carrying currents, I1 = 38 A and...
The figure below shows two long parallel, straight wires
carrying currents, I1 = 38 A and I2 = 70 A. The distance between
the wires is 18 m. What is the magnitude of the magnetic field (in
nT) at point A , which is at a distance of 4 m from wire #1?
The figure below shows two long parallel, straight wires carrying currents, 14 = 38 A and I2 = 70 A. The distance between the wires is 18...
Two straight parallel wires carry currents in opposite directionsas shown in the figure. One of...
Two straight parallel wires carry currents in opposite directions as shown in the figure. One of the wires carries a current of I2 = 11.5 A. Point A is the midpoint between the wires. The total distance between the wires is d = 10.2 cm. Point C is 5.75 cm to the right of the wire carrying current I2. Current I1 is adjusted so that the magnetic field at C is zero.A. Calculate the value of the current I1.B. Calculate...
In the figure below, five long parallel wires in an xy plane are separated by distance...
In the figure below, five long parallel wires in an xy plane are separated by distance d = 40.0 cm. The currents into the page are i1 = 2.00 A, i3 = 0.15 A, i4 = 3.00 A and i5 = 1.50 A; the current out of the page is i2 = 5.00 A. What is the magnitude of the net force per unit length acting on wire 3 due to the currents in the other wires?
In the figure below, five long parallel wires in an xy plane are separated by distance...
In the figure below, five long parallel wires in an xy
plane are separated by distance d = 55.0 cm. The currents
into the page are i1 = 2.70 A,
i3 = 0.450 A, i4 = 4.80 A,
and i5 = 2.70 A; the current out of the page is
i2 = 5.40 A. What is the magnitude of the net
force per unit length acting on wire 3 due to the currents in the
other wires?
The figure below shows two long parallel, straight wires carrying currents, I1 = 1 A and...
The figure below shows two long parallel, straight wires carrying currents, I1 = 1 A and I2 = 49 A. The distance between the wires is 16 m. What is the magnitude of the magnetic field in nT) at point A, which is at a distance of 2 m from wire #1? (in units of nT or nanoteslas) Tries 0/2 Submit Answer Which direction does the magnetic field point at location A (due to both wires)? Submit Answer Tries 0/2
There are two crossed wires and two wire loops, the given currents are inner loop =...
There are two crossed wires and two wire loops, the given
currents are inner loop = I1, outer loop=I2, and horizontal wire is
I3. the radius of the large loop=r1 and the radius of the small
loop=r2. the distance between the center of the concentric loops
and the horizontal wire is d2 and the distance from the center of
the loops to the vertical wire is d1. The magnetic field (B) at the
center of the concentric loops is 0....
2 Two straight parallel wires carry currents in opposite directions as shown in the figure. One...
2 Two straight parallel wires carry currents in opposite directions as shown in the figure. One of the wires carries a current of I2 11.4 A. Point A is the midpoint between the wires. The total distance between the wires is d -12.4 cm. Point Cis 4.68 cm to the right of the wire carrying current I2. Current I1 is adjusted so that the magnetic field at C is zero. Calculate the value of the current I attA Tries 0/99...
Consider two, long parallel wires (labeled a and b) carrying electric currents ia and in respectively...
Consider two, long parallel wires (labeled a and b) carrying electric currents ia and in respectively in the same directions. The wires are separated by distance d, as shown in the figure below. Interactive Figure 29.4.1: Two long, straight, parallel wires carry currents in the same direction. Figure 29.4.2 shows an end-on view with the two currents directed out of the screen (in the +z direction). Assume the following values for the two currents and the distance d: ia =...
The figure shows three long, parallel, current-carrying wires.
The current directions are indicated for currents
I1 and I3. The three
currents have equal magnitudes. In the space provided below write
the direction of the currentI2 ( it
could be INTO the page or OUT of the page, it is your choice!).
Then, accordingly to your selection of
I2 , write the direction of the net
force acting on the wire I3 due to the
presence of the other two wires....
The figure shows three long, parallel, current-carrying wires
perpendicular to the page. In the picture, the current directions
are indicated for I1 and I3. The three currents have equal
magnitudes. The direction of the current I2 is INTO the page.
Determine the direction of the net force acting on the wire I3 due
to the presence of the other two wires. Group of answer choices
left
right
Up
down
The figure shows three long, parallel, current-carrying wires perpendicular to the...
The figure below shows two long parallel, straight wires
carrying currents, I1 = 38 A and I2 = 70 A. The distance between
the wires is 18 m. What is the magnitude of the magnetic field (in
nT) at point A , which is at a distance of 4 m from wire #1?
The figure below shows two long parallel, straight wires carrying currents, 14 = 38 A and I2 = 70 A. The distance between the wires is 18...
In the figure below, five long parallel wires in an xy
plane are separated by distance d = 55.0 cm. The currents
into the page are i1 = 2.70 A,
i3 = 0.450 A, i4 = 4.80 A,
and i5 = 2.70 A; the current out of the page is
i2 = 5.40 A. What is the magnitude of the net
force per unit length acting on wire 3 due to the currents in the
other wires?
The figure below shows two long parallel, straight wires carrying currents, I1 = 1 A and I2 = 49 A. The distance between the wires is 16 m. What is the magnitude of the magnetic field in nT) at point A, which is at a distance of 2 m from wire #1? (in units of nT or nanoteslas) Tries 0/2 Submit Answer Which direction does the magnetic field point at location A (due to both wires)? Submit Answer Tries 0/2
There are two crossed wires and two wire loops, the given
currents are inner loop = I1, outer loop=I2, and horizontal wire is
I3. the radius of the large loop=r1 and the radius of the small
loop=r2. the distance between the center of the concentric loops
and the horizontal wire is d2 and the distance from the center of
the loops to the vertical wire is d1. The magnetic field (B) at the
center of the concentric loops is 0....
2 Two straight parallel wires carry currents in opposite directions as shown in the figure. One of the wires carries a current of I2 11.4 A. Point A is the midpoint between the wires. The total distance between the wires is d -12.4 cm. Point Cis 4.68 cm to the right of the wire carrying current I2. Current I1 is adjusted so that the magnetic field at C is zero. Calculate the value of the current I attA Tries 0/99...
Consider two, long parallel wires (labeled a and b) carrying electric currents ia and in respectively in the same directions. The wires are separated by distance d, as shown in the figure below. Interactive Figure 29.4.1: Two long, straight, parallel wires carry currents in the same direction. Figure 29.4.2 shows an end-on view with the two currents directed out of the screen (in the +z direction). Assume the following values for the two currents and the distance d: ia =...
