Consider three charges, q1 = 4 µC at the origin, q2 = 4 µC on the...
Consider three charges, q1 = 4 µC at the origin, q2 = 4 µC on the y-axis at y = 3 m and q3 = 2 µC on the x-axis at x = 4 m. What is the force on q3? Express you answer as a vector in terms of ˆi and ˆj.
Homework Answers

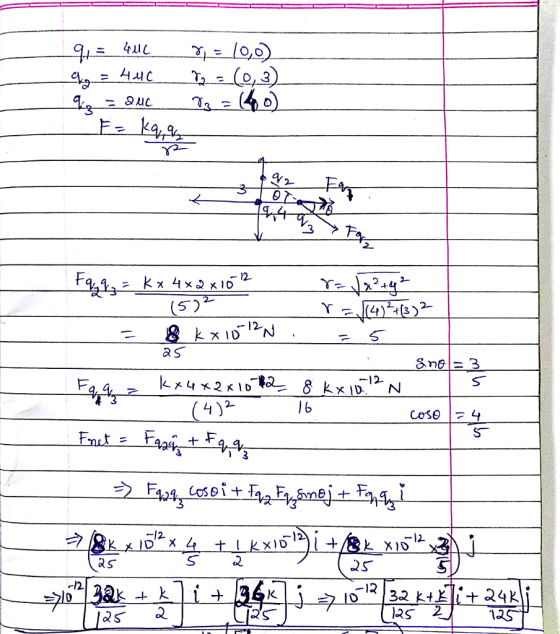

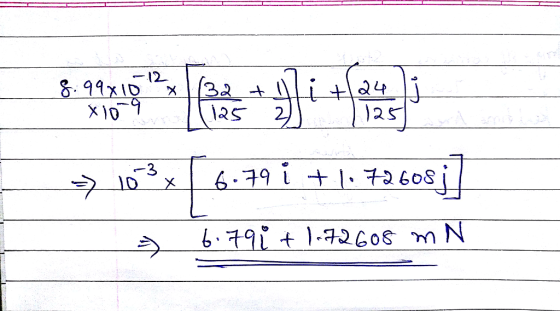

This can be solved by using electrostatic forces and resolving
components and adding them
