A circular ring of radius R is placed in a time varying magnetic field : $B(t)=B_{0}*(1+t/T)$

For the following values $R=6.7m , T=1.3s, B_{0}=4.4T,t_{2}=9.9s$

What is the electromotive force induced in the ring at $t_{2}$ ? Give positive answer in the unit of Volt

science physics

Answer 1

Answer #1

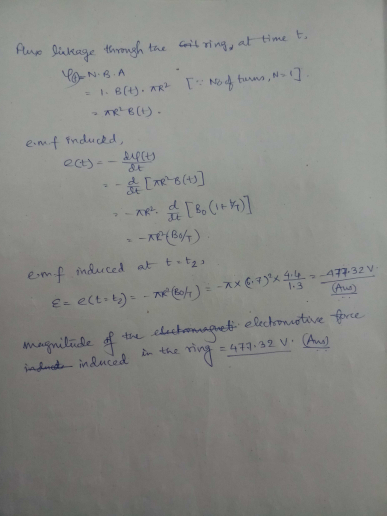

-xe(44) Aua) e lechomietive force
