if the tension string 1 is 45 N and the tension string 2 is 34 N,...

Question

Question

if

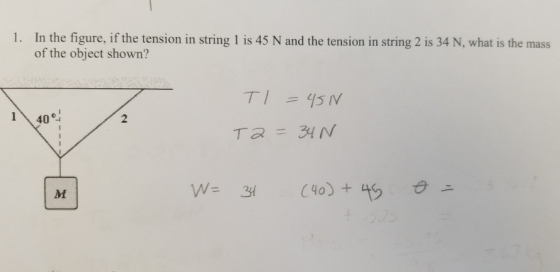

$1. In the figure, if the tension in string 1 is 45 N and the tension in string 2 is 34 N, what is the mass of the object shown? 1\40% 2$

the tension string 1 is 45 N and the tension string 2 is 34 N, what is the mass of the object

science physics

Answer 1

Answer #1

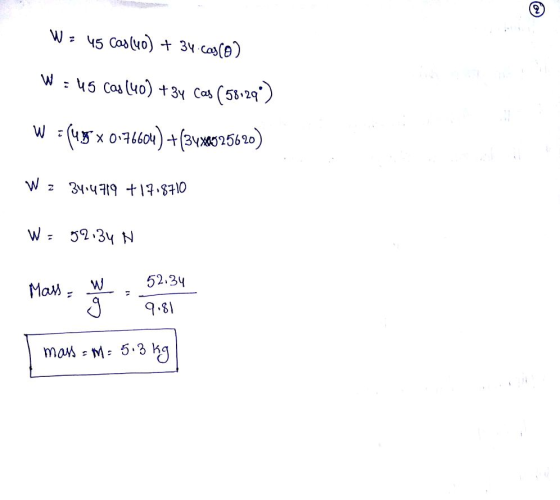

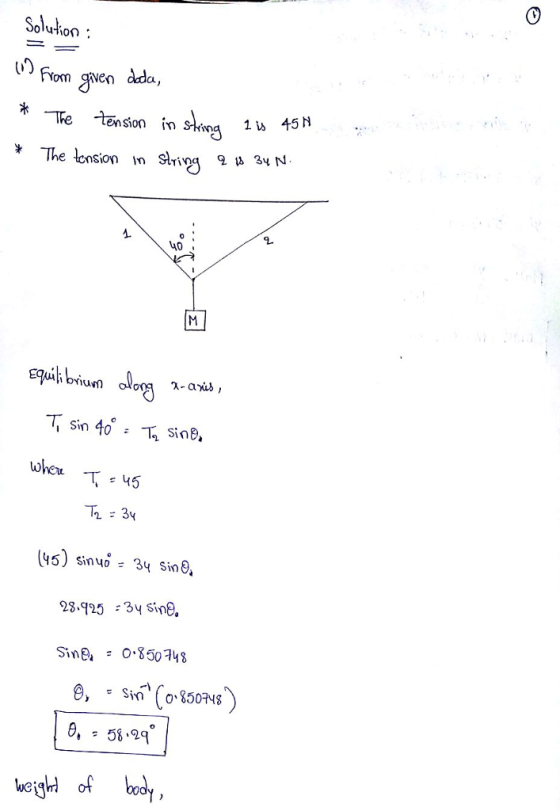

Soltion Yom Nen dcda, Te eision in ig 1 45 ion in Sk 0 40 T, sin 40 sine (4s) sin34 Sin8 28.92534 sine. SinA 0.850748 eighdof bod Мам-W-- 52-34 9.8

If you have any doubt please comment friend and if you are satisfied with my solution please give me thumb up

Answer 2

Similar Homework Help Questions

3. (bonus) In the figure, if the tension in string 1 is 170 N and the...

3. (bonus) In the figure, if the tension in string 1 is 170 N and the tension in string 2 is 120 N, what is the mass of the object shown? 40 M a. 7.38 kg b. 11.8 kg c. 18.5 kg d. 3.70 kg e. 4.54 kg

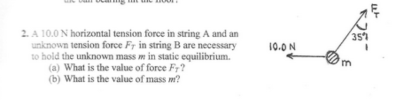

U UdlS LL LICHIUUI. 10.0 N 2. A 10.0 N horizontal tension force in string A...
