Please help!!Homework Answers
Add Answer to:
Please help!!

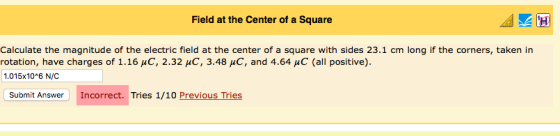

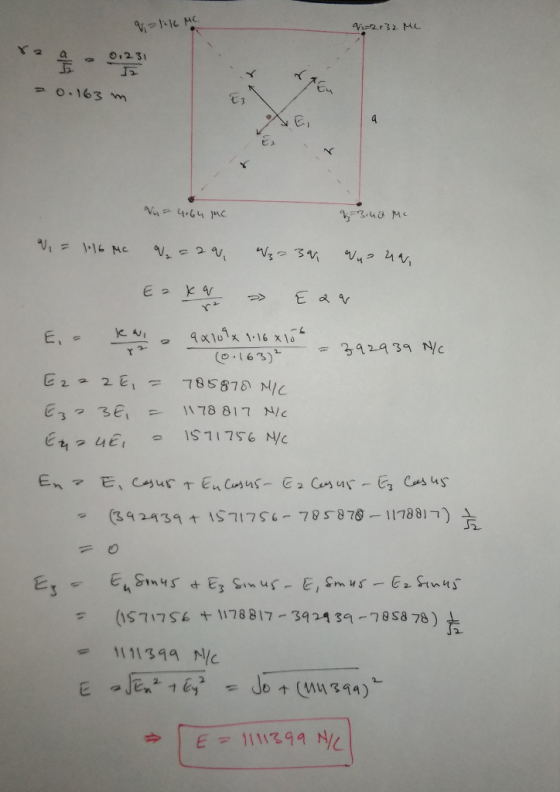

Field at the Center of a Square Calculate the magnitude of the electric field...
Electric Field at a Corner of a Square Calculate the magnitude of the electric field at...
Electric Field at a Corner of a Square Calculate the magnitude of the electric field at one corner of a square 1.14 m on a side if the other three corners are occupied by 2.80E-6 C charges. Submit Answer Tries 0/10
Calculate the electric field(magnitude and direction) at the center of a square 52.5 cm on a...
Calculate the electric field(magnitude and direction) at the center of a square 52.5 cm on a side if one corner is occupied by a - 38.4 μC charge and the other three are occupied by - 27.8 μC charges.
Calculate the magnitude of the electric field at one corner of a square 1.52 m on...
Calculate the magnitude of the electric field at one corner of a square 1.52 m on a side if the other three corners are occupied by 4.75x10-6 C charges. Express your answer to three significant figures and include the appropriate units. = | Value Units Submit Previous Answers Request Answer X Incorrect, Try Again; 2 attempts remaining Part B What is the direction of the electric field at the corner? O O O O along the line between the corner...
(A). Calculate the electric field(magnitude and direction) at the center of a square 52.5 cm on...
(A). Calculate the electric field(magnitude and direction) at the center of a square 52.5 cm on a side if one corner is occupied by a - 39.0 μC charge and the other three are occupied by - 27.3 μC charges. (B). Choose the correct answer using Part (A). 1. towards - 39.0 μC charge 2. out of - 39.0 μC charge 3. perpendicular to the diagonal passing through - 39.0 μC charge
Calculate the electric field(magnitude and direction) at the center of a square 52.5 cm on a side
Part A Calculate the electric field(magnitude and direction) at the center of a square 52.5 cm on a side if one comer is occupied by a -38.0 μC charge and the other three are occupied by -27.2μC charges.Part B out of -38.0 μC charge towards-38.0 μC charge perpendicular to the diagonal passing through -38.0 μC charge
Please help!! 18.49-Conductors and Electric Fields in Static Equilibrium Find the electric field (magnitude and direction)...
Please help!!
18.49-Conductors and Electric Fields in Static Equilibrium Find the electric field (magnitude and direction) at the location of a in the figure below, given that b - 8.90 uC and Qc -5.90 μC. Point charges located at the corners of an equilateral triangle 24.0 cm on a side. da gc Ib Magnitude IEl direction (wrt +x-axis) Submit Answer Tries 0/10 What is the force (magnitude and direction) on qa, given that qa -1.50 nc Magnitude IFI direction (wrt...
What is the magnitude of the electric field at the center of a square of side...
What is the magnitude of the electric field at the center of a square of side 70.00 cm if one corner is occupied by a charge Q1= 10.00 uC and the other three corners are occupied by three charges each of charge Q2=-30.00 uC
Electric Field Due to Two Charges what is the the electric field at a point midway...
Electric Field Due to Two Charges what is the the electric field at a point midway between a-8.46 μC and a +5.42 μC charge 3.87 cm apart? Take the direction towards the positive charge to be positive. Submit Answer Incorrect. Tries 7/10 Previous Tries
Four point charges are located at the corners of a square. Each charge has magnitude 2.80...
Four point charges are located at the corners of a square. Each charge has magnitude 2.80 nC and the square has sides of length 3.00 cm. Find the magnitude of the electric field (in N/C) at the center of the square if all of the charges are positive and three of the charges are positive and one is negative.
Four point charges are located at the corners of a square. Each charge has magnitude 4.90...
Four point charges are located at the corners of a square. Each charge has magnitude 4.90 nC and the square has sides of length 3.70 cm. Find the magnitude of the electric field (in N/C) at the center of the square if all of the charges are positive and three of the charges are positive and one is negative. a.) All the charges are positive b.) Three of the charges are positive and one is negative
Electric Field at a Corner of a Square Calculate the magnitude of the electric field at one corner of a square 1.14 m on a side if the other three corners are occupied by 2.80E-6 C charges. Submit Answer Tries 0/10
Calculate the magnitude of the electric field at one corner of a square 1.52 m on a side if the other three corners are occupied by 4.75x10-6 C charges. Express your answer to three significant figures and include the appropriate units. = | Value Units Submit Previous Answers Request Answer X Incorrect, Try Again; 2 attempts remaining Part B What is the direction of the electric field at the corner? O O O O along the line between the corner...
Please help!!
18.49-Conductors and Electric Fields in Static Equilibrium Find the electric field (magnitude and direction) at the location of a in the figure below, given that b - 8.90 uC and Qc -5.90 μC. Point charges located at the corners of an equilateral triangle 24.0 cm on a side. da gc Ib Magnitude IEl direction (wrt +x-axis) Submit Answer Tries 0/10 What is the force (magnitude and direction) on qa, given that qa -1.50 nc Magnitude IFI direction (wrt...
Electric Field Due to Two Charges what is the the electric field at a point midway between a-8.46 μC and a +5.42 μC charge 3.87 cm apart? Take the direction towards the positive charge to be positive. Submit Answer Incorrect. Tries 7/10 Previous Tries
