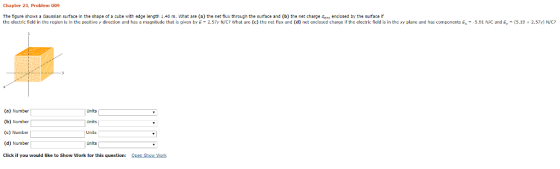

Chapter 23, Problem 009 The figure shows a Gausslan surface in the shape of a cube...
Need help solving The figure shows a Gaussian surface in the shape of a cube with...
Need help solving

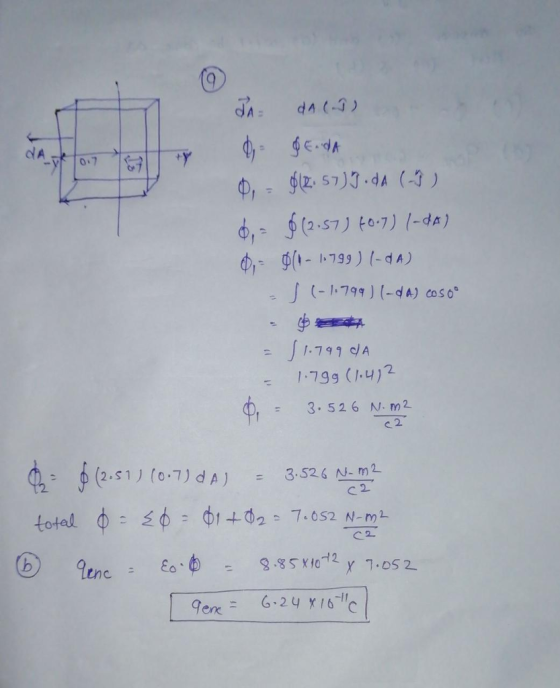

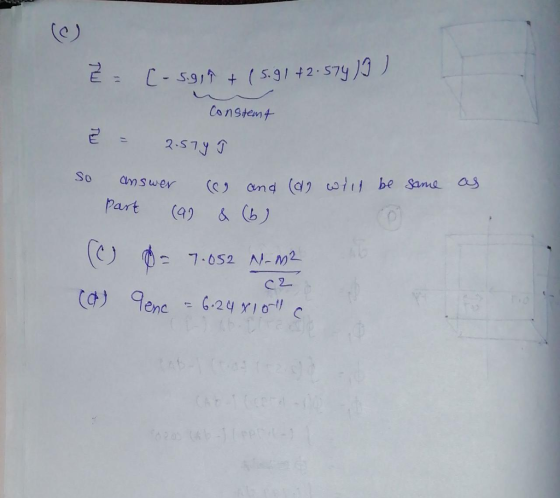

The figure shows a Gaussian surface in the shape of a cube with edge length 1.80 m. What are (a) the net flux through the surface and (b) the net charge enc enclosed by the surface if the electric field in the region is in the positive y direction and has a magnitude that is given by E = 2.67y N/C? What are (c) the net flux and (d) net enclosed charge if the electric field is...
Question 1 The figure shows a closed Gaussian surface in the shape of a cube of...
Question 1 The figure shows a closed Gaussian surface in the shape of a cube of edge length 2.80 m. It lies in a region where the electric field is given by E = (1.58x + 4.62 4.197.86 k N/C, with x in meters. What is the net charge contained by the cube? Number Units the tolerance is +/-590
The figure shows a closed Gaussian surface in the shape of a cube of edge length...
The figure shows a closed Gaussian surface in the shape of a cube of edge length 2.0 m, with one corner at X1 = 4.6 m,y1 = 4.3 m. The cube lies in a region where the electric field vector is given by E- 341-3.0 yj +2.8 N/C, with y in meters. What is the net charge contained by the cube? Number Units the tolerance is +/-590
The figure shows a closed Gaussian surface in the shape of a cube of edge length...
The figure shows a closed Gaussian surface in the shape of a cube of edge length 2.1 m, with one corner at x1 = 4.8 m,y1 = 4.7 m. The cube lies in a region where the electric field vector is given by Ě = -3.2 ì -4.0 y2 +2.4 Â N/C, with y in meters. What is the net charge contained by the cube? *1 -- Number Number 1 Units Units
10 Figure 23-34 shows a closed Gaussian surface in the shape of a cube of edge...
10 Figure 23-34 shows a closed Gaussian surface in the shape of a cube of edge length 2.00 m. It lies in a region where the nonuni- form electric field is given by E (3.00x + 4.00)i + 6.00j+ 7.00k N/C, with x in meters. What is the net charge contained by the cube? Figure 23-34 Problem 10.
Chapter 23, Problem 003 The cube in the figure has edge length 1.24 m and is...
Chapter 23, Problem 003 The cube in the figure has edge length 1.24 m and is oriented as shown in a region of uniform electric field. Find the electric flux through the right face if the electric field (a) is in the positive x direction and has magnitude 8.81 N/C, (b) is in the negative y direction and has magnitude 2.91 N/C, and (c) is in the xz plane, has x component -3.95 N/C, and has z component 4.73 N/C....
The figure below shows a closed Gaussian surface in the shape of a cube of edge...
The figure below shows a closed Gaussian surface in the shape of a
cube of edge length 2.00 m. It lies in a region where the electric
field is given by = [ (3.40x + 4.00) + 6.00 + 7.00 ] N/C, where x
is in meters. What is the net charge contained by the cube in
Coulombs?
The figure below shows a closed Gaussian surface in the shape of a cube of edge length 2.00 m. It lies in...
The figure shows a closed Gaussian surface in the shape of a cube of edge length...
The figure shows a closed Gaussian surface in the shape of a cube of edge length 2.8 m, with one corner atx-42may-4.1m. The cube liesin a region where the electric feld vector is given by E--2o i-42 y2j + 34 k NC, with y in meters. W here the electric feldvectoris given by E 201-42j 34R N/C. withyin meters. What is the net charge contained bythe ㄧˊ Number Units
Chapter 23, Problem 071 Gaussian surface in the form of a hemisphere of radius R-7.16 cm...
Chapter 23, Problem 071 Gaussian surface in the form of a hemisphere of radius R-7.16 cm lies in a uniform electric field of magnitude E- 2.7 NIC. The surface encloses no net charge. At the (flat) base of the surface, the field is perpendicular to the surface and directed into the surface. What is the flux through (a) the base and (h) the curved partion of the surface? (a) Number (b) Number Units Units SHOW HINT Question Attempts: 0 of...
Figure 23-31 shows a closed Gaussian surface in the shape of a cube of edge length...
Figure 23-31 shows a closed Gaussian surface in the shape of a
cube of edge length 2.5 m, with one corner at x1 = 5.0 m,y1 = 3.7
m. The cube lies in a region where the electric field vector is
given by = -3.4 -4.4 y2 +2.8 N/C, with y in meters. What is the net
charge (in Coulombs) contained by the cube?
Need help solving
The figure shows a Gaussian surface in the shape of a cube with edge length 1.80 m. What are (a) the net flux through the surface and (b) the net charge enc enclosed by the surface if the electric field in the region is in the positive y direction and has a magnitude that is given by E = 2.67y N/C? What are (c) the net flux and (d) net enclosed charge if the electric field is...
Question 1 The figure shows a closed Gaussian surface in the shape of a cube of edge length 2.80 m. It lies in a region where the electric field is given by E = (1.58x + 4.62 4.197.86 k N/C, with x in meters. What is the net charge contained by the cube? Number Units the tolerance is +/-590
The figure shows a closed Gaussian surface in the shape of a cube of edge length 2.0 m, with one corner at X1 = 4.6 m,y1 = 4.3 m. The cube lies in a region where the electric field vector is given by E- 341-3.0 yj +2.8 N/C, with y in meters. What is the net charge contained by the cube? Number Units the tolerance is +/-590
The figure shows a closed Gaussian surface in the shape of a cube of edge length 2.1 m, with one corner at x1 = 4.8 m,y1 = 4.7 m. The cube lies in a region where the electric field vector is given by Ě = -3.2 ì -4.0 y2 +2.4 Â N/C, with y in meters. What is the net charge contained by the cube? *1 -- Number Number 1 Units Units
10 Figure 23-34 shows a closed Gaussian surface in the shape of a cube of edge length 2.00 m. It lies in a region where the nonuni- form electric field is given by E (3.00x + 4.00)i + 6.00j+ 7.00k N/C, with x in meters. What is the net charge contained by the cube? Figure 23-34 Problem 10.
Chapter 23, Problem 003 The cube in the figure has edge length 1.24 m and is oriented as shown in a region of uniform electric field. Find the electric flux through the right face if the electric field (a) is in the positive x direction and has magnitude 8.81 N/C, (b) is in the negative y direction and has magnitude 2.91 N/C, and (c) is in the xz plane, has x component -3.95 N/C, and has z component 4.73 N/C....
The figure below shows a closed Gaussian surface in the shape of a
cube of edge length 2.00 m. It lies in a region where the electric
field is given by = [ (3.40x + 4.00) + 6.00 + 7.00 ] N/C, where x
is in meters. What is the net charge contained by the cube in
Coulombs?
The figure below shows a closed Gaussian surface in the shape of a cube of edge length 2.00 m. It lies in...
The figure shows a closed Gaussian surface in the shape of a cube of edge length 2.8 m, with one corner atx-42may-4.1m. The cube liesin a region where the electric feld vector is given by E--2o i-42 y2j + 34 k NC, with y in meters. W here the electric feldvectoris given by E 201-42j 34R N/C. withyin meters. What is the net charge contained bythe ㄧˊ Number Units
Chapter 23, Problem 071 Gaussian surface in the form of a hemisphere of radius R-7.16 cm lies in a uniform electric field of magnitude E- 2.7 NIC. The surface encloses no net charge. At the (flat) base of the surface, the field is perpendicular to the surface and directed into the surface. What is the flux through (a) the base and (h) the curved partion of the surface? (a) Number (b) Number Units Units SHOW HINT Question Attempts: 0 of...
Figure 23-31 shows a closed Gaussian surface in the shape of a
cube of edge length 2.5 m, with one corner at x1 = 5.0 m,y1 = 3.7
m. The cube lies in a region where the electric field vector is
given by = -3.4 -4.4 y2 +2.8 N/C, with y in meters. What is the net
charge (in Coulombs) contained by the cube?
