A line of charge with uniform density of 32.0 nC/m lies along the line y =...

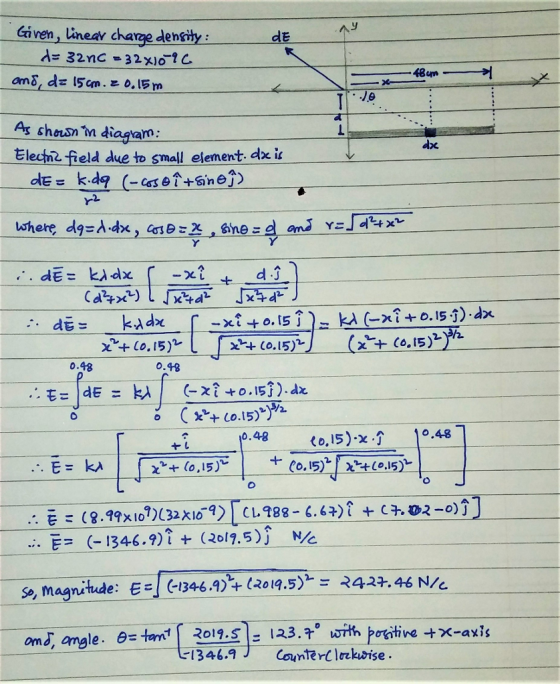

A line of charge with uniform density of 32.0 nC/m lies along the line y = -15.0 cm, between the points with coordinates x = 0 and x = 48.0 cm. Find the electric field it creates at the origin.
| Magnitude | N/C |
| Direction | ° (counterclockwise from the +x axis) |
Homework Answers
Alright Dude, If that worked for you... dont forget to give THUMBS UP.(that will work for me!)
If I missed something feel free to leave a comment.
atleast before giving downvote.
and, Thanks for using homeworklib- Smarter way to study.
Add Answer to:
A line of charge with uniform density of 32.0 nC/m lies along
the line y =...
