A line of charge with uniform density of 36.0 nC/m lies along the line y =...

A line of charge with uniform density of 36.0 nC/m lies along the line y = -15.0 cm, between the points with coordinates x = 0 and x = 32.0 cm. Find the electric field it creates at the origin.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

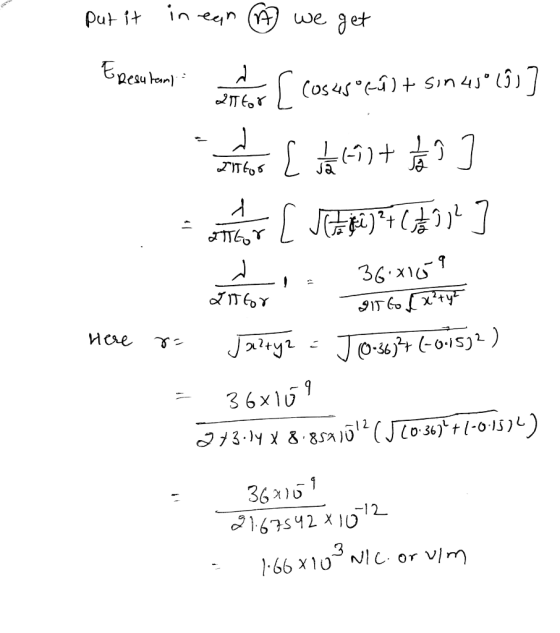

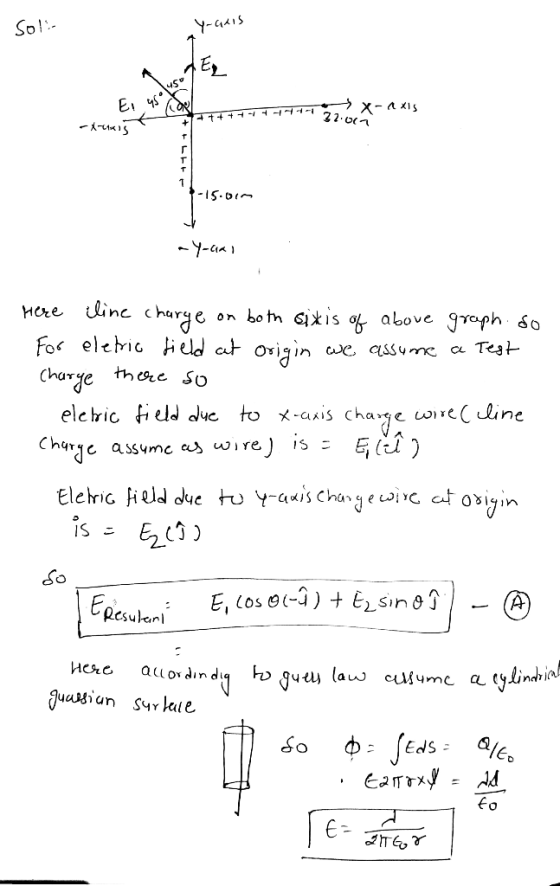

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A line of charge with uniform density of 36.0 nC/m lies along the line y =...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A line of charge with uniform density of 32.0 nC/m lies along the line y =...

    A line of charge with uniform density of 32.0 nC/m lies along the line y = -15.0 cm, between the points with coordinates x = 0 and x = 48.0 cm. Find the electric field it creates at the origin. Magnitude N/C Direction ° (counterclockwise from the +x axis)

  • A line of charge with uniform density of 38.0 nC/m lies along the line y =...

    A line of charge with uniform density of 38.0 nC/m lies along the line y = -15.0 cm, between the points with coordinates x = 0 and x = 40.0 cm. Find the electric field's direction(counterclockwise from the +x axis). Magnitude=2597.3524601974621608226617005484 is Correct

  • 2. A line of charge with uniform density of 38.0 nC/m lies along the line y...

    2. A line of charge with uniform density of 38.0 nC/m lies along the line y 12.0 cm between the points x 5.0 cm and 40.0 cm. Calculate the electric field (both the magnitude and direction) at the origin due to this charge distribution. (2436 N/C, 137.9°)

  • 2. 0/2 points | Previous Answers SerPSE9 23.P089 A line of charge with uniform density of...

    2. 0/2 points | Previous Answers SerPSE9 23.P089 A line of charge with uniform density of 28.0 nC/m lies along the line y-15.0 cm, between the points with coordinates x 0 and x40.0 cm. Find the electric field it creates at the origin. Magnitude Direction Need Help? Read It Your response differs from the correct answer by more than 100% N/C (counterclockwise from the +x axis) Submit Answer Save Progress Practice Another Version

  • 5.(10 points) A uniform line charge with a charge density +24.5 nC/m runs along the x-axis...

    5.(10 points) A uniform line charge with a charge density +24.5 nC/m runs along the x-axis from the origin to "infinity". An observer is located on the x-axis at x- -15.0 cm. What is the electric field at the location of this observer (due to the line charge)? [Include magnitude and direction in your answer.] [minor Hint: the solution to this problem does involve integration; if your solution does not, then it is not a correct solution.] Ans.

  • A charge (uniform linear density = 8.7 nC/m) lies on a string that is stretched along...

    A charge (uniform linear density = 8.7 nC/m) lies on a string that is stretched along an x axis from x = 0 to x = 2.9 m. Determine the magnitude of the electric field at x = 6.6 m on the x axis.

  • 18. A charge (uniform charge density,A-12 nC/m) lies on a string that is stretched along an...

    18. A charge (uniform charge density,A-12 nC/m) lies on a string that is stretched along an x axis from where L is the length of the string and d is the distance from L. Show that E- ke x = 0 to x the end of the string to a point P in line with the string (on the x-axis), Hence if L-9 m, determine the magnitude of the electric field at x 16 m on the x axis. (8.67...

  • A uniform line charge of linear charge density = 2.6 nC/m extends from x = 0...

    A uniform line charge of linear charge density = 2.6 nC/m extends from x = 0 to x = 5 m. (a) What is the total charge? nC (b) Find the electric field on the x axis at x = 6 m. N/C (c) Find the electric field on the x axis at x = 8 m. N/C (d) Find the electric field on the x axis at x = 250 m. N/C (e) Find the field at x =...

  • A very long, thin rod carries electric charge with the linear density 32.0 nC/m. It les...

    A very long, thin rod carries electric charge with the linear density 32.0 nC/m. It les along the x axis and moves in the x direction at a speed of 15.0 Mm/s. (a) Find the electric field the rod creates at the point (0, 22.0 cm, 0) Magnitude N/C DirectionSelect--- (b) Find the magnetic field it creates at the same point. Magnitude: Direction: --Select (c) Find the force exerted on an electron at this point, moving with a velocity of...

  • An infinite line charge of uniform linear charge density = -1.7 uC/m lies parallel to the...

    An infinite line charge of uniform linear charge density = -1.7 uC/m lies parallel to the y axis at x = 0 m. A point charge of 4.1u C is located at x = 2.0 m, y = 3.0 m. Find the x component of the electric field at x = 3.0 m, y = 2.5 m
