Homework Answers
Add Answer to:
make your answer clear, thankss.

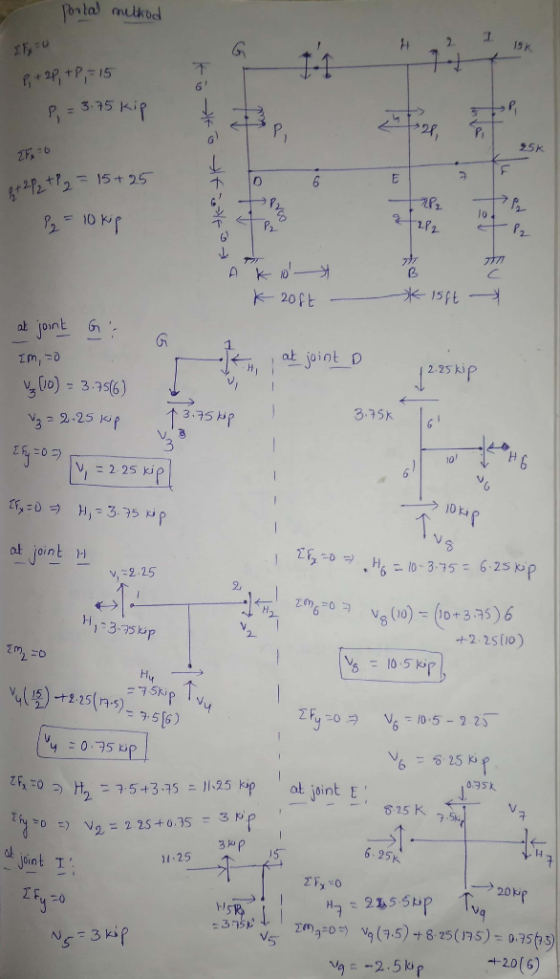

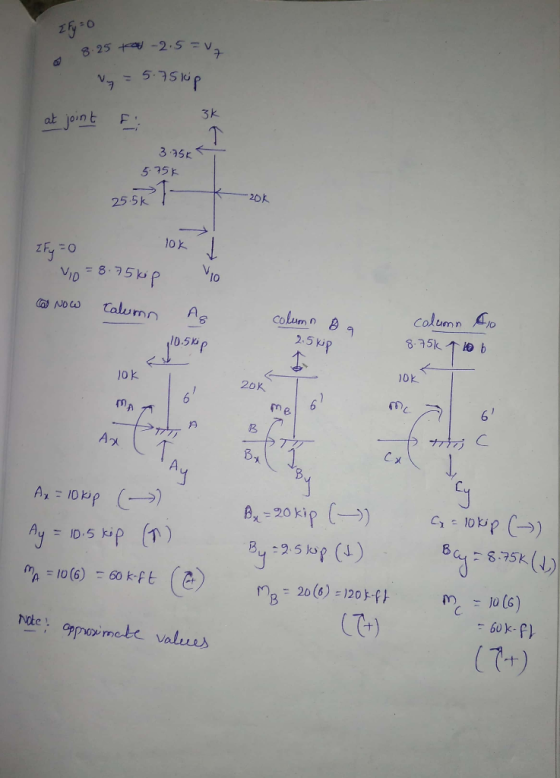

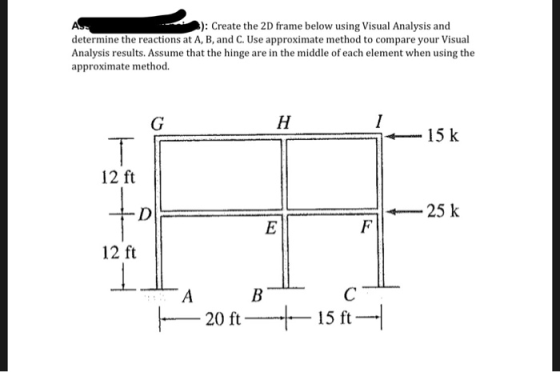

): Create the 2D frame below using Visual Analysis and determine...
Model View Result View Design View Member Graph Report View Status Educational 2.6299 K 4.2378 K...
Model View Result View Design View Member Graph Report View Status Educational 2.6299 K 4.2378 K 9,4685 K 5.6445 K EX 15.24 e EX 12.953K FX 11.808 MZ-95235 K-ft 98 K-ft MZ -1089 K-ft MZ 8 Front Find Tool Member Displacements, Detailed Member Forces, Detailed Member Stresses, Detailed Node Results Member Result Case Offset (ft) Dy (ft) Dz (ft) 0,0000 -0.0037 0,0000 COLO04L COLO04 L 0.0034 00000 1.3333 COLO04 L 2.6667 -0.0030 0.0000 COLO04 L 4,0000 -0.0025 0.0000 COLML 5...
(Approximate Method Gravity Frame) Problem 4. VERTICAL LOAD ON FRAME METHOD. Determine the approximate SUPPORT REACTIONS...
(Approximate Method Gravity Frame) Problem 4. VERTICAL LOAD ON FRAME METHOD. Determine the approximate SUPPORT REACTIONS at "B". All supports are fixed. (10 points) Mg = 1.5 kn Bx = BY = 12 ft 4 kft 2 lnt 15 ft 40 ft B 25 ft
Please make sure your handwriting is clear and readable. Thank you. :) 3. Determine the member...
Please make sure your handwriting is clear and readable. Thank
you. :)
3. Determine the member end moments and reactions for the shown frame by using the slope- deflection method 3 klf 20 k 20 ft 10 ft Fixed Fixed 25 ft 25 ft 25 ft
Assignment is designed to develop your ability to create static methods and manipulate 1D and 2D...
Assignment is designed to develop your ability to create static methods and manipulate 1D and 2D arrays in Java. Create a single Java class Matrix and inside the class create the specified static methods as described Task # Description 1 Create a matrix (known components) 2 Create a matrix (random components) 3 Create a matrix from vectors 4 Compare two matrices 5 Add two matrices 6 Subtract two matrices 7 Multiply a matrix by a scalar 8 Multiply two matrices...
a) APPLICATION OF STATIC EQUATIONS OF STRUCTURAL ANALYSIS. CALCULATE THE REACTIONS IN THE FRAME SUPPORTS [A]...
a) APPLICATION OF STATIC EQUATIONS OF STRUCTURAL
ANALYSIS.
CALCULATE THE REACTIONS IN THE FRAME SUPPORTS [A] AND [D]
SHOWN IN THE FOLLOWING FIGURE.
b) APPLY ONLY THE SEGMENT METHOD. DETERMINE THE VALUES OF THE
SHORT FORCE [V] AND THE FLEXIBLE MOMENT [M] ALONG THE FRAME (NODES
A, B, C AND D) AND PRESENT THE GRAPHICS WITH THE CORRESPONDING
VALUES.
SEND SOLUTION PROCEDURE, VALUES IN GRAPHICS AND ANSWERS FRAMED
IN BOXES.
NODE A: SIMPLE SUPPORT AND NODE D: ARTICULATED SUPPORT.
4k...
tatically determinate or indeterminate frame analysis by the stiffness method (45 marks) a) Determine the stiffine...
tatically determinate or indeterminate frame analysis by the stiffness method (45 marks) a) Determine the stiffiness matrix of the frame of problems 16.5 and 16.6 (p. 619). Indicate the degrees-of freedom in all the stiffness matrices. b) D Q4. S (10 marks) etermine all the displacement components at node 2 and all the reactions including the reactions at node 2. Show all calculations. c) (18 marks) of the frame on the compression side showing all the salient values (5 marks)...
15 marks Question 3 Consider the frame shown in Figure Q3 for which all elements have constant stiffness EL. Implement the flexibility method by removing the vertical support at A to create a static...
15 marks Question 3 Consider the frame shown in Figure Q3 for which all elements have constant stiffness EL. Implement the flexibility method by removing the vertical support at A to create a statically determinate system. The Volume Integral Table is found on page 8 of this examination paper Find the reactions at A and D considering that node C is equidistant to nodes D (a) and B [12 marks] (b) Draw the bending moment diagram for the frame. 13...
Problem 1 [Required]: For the truss shown below (A and D are pinned supports) and EA...
Problem 1 [Required]: For the truss shown below (A and D are pinned supports) and EA is constant a) Determine the degree of indeterminacy for this truss b) Calculate the reaction forces at A and D c) Verify your solution using SAP2000. Provide a print out of. i The axial force diagram i) The deflected shape iii) 3-3 Moment diagram iii) Table of joint reactions (after running analysis Display-) Show Tables-) click joint output, element output and structure output >...
Analyze the nonsway frame by the Slope-Deflection Method. •Evaluate all the reactions •Consider Special-Case Spans and...
Analyze the nonsway frame by the Slope-Deflection Method.
•Evaluate all the reactions
•Consider Special-Case Spans and Statically Determinate (CE 304)
Spans where appropriate
Slope Deflection Method - Frames Problem 1. Given: 8 k 2 k/ft 15 ft E constant Support A is a pin Support C is fixed Support D is a roller 12 ft (A) HAND CALCULATIONS Analyze the nonsway frame by the Slope-Deflection Method. Evaluate all the reactions e Consider Special-Case Spans and Statically Determinate (CE 304) Spans...
Using only bending energy what the horizontal displacement at C to the nearest 0.01in. w=9k/ft E...
Using only bending energy what the horizontal displacement at C to the nearest 0.01in. w=9k/ft E = 29,000 ksi I = 716 in B 8 ft w 10 ft EXAMPLE 9.10 Determine the horizontal displacement of point on the frame shown in Fig. 9-20. Take E = 29(10) ksi and I = 600 in" for both members 8 4k/ 10 Ft T X Fig. 9-20 SOLUTION Virtual Moments m. For convenience, the coordinates x, and x, in Fig. 9-20a will...
Model View Result View Design View Member Graph Report View Status Educational 2.6299 K 4.2378 K 9,4685 K 5.6445 K EX 15.24 e EX 12.953K FX 11.808 MZ-95235 K-ft 98 K-ft MZ -1089 K-ft MZ 8 Front Find Tool Member Displacements, Detailed Member Forces, Detailed Member Stresses, Detailed Node Results Member Result Case Offset (ft) Dy (ft) Dz (ft) 0,0000 -0.0037 0,0000 COLO04L COLO04 L 0.0034 00000 1.3333 COLO04 L 2.6667 -0.0030 0.0000 COLO04 L 4,0000 -0.0025 0.0000 COLML 5...
(Approximate Method Gravity Frame) Problem 4. VERTICAL LOAD ON FRAME METHOD. Determine the approximate SUPPORT REACTIONS at "B". All supports are fixed. (10 points) Mg = 1.5 kn Bx = BY = 12 ft 4 kft 2 lnt 15 ft 40 ft B 25 ft
Please make sure your handwriting is clear and readable. Thank
you. :)
3. Determine the member end moments and reactions for the shown frame by using the slope- deflection method 3 klf 20 k 20 ft 10 ft Fixed Fixed 25 ft 25 ft 25 ft
a) APPLICATION OF STATIC EQUATIONS OF STRUCTURAL
ANALYSIS.
CALCULATE THE REACTIONS IN THE FRAME SUPPORTS [A] AND [D]
SHOWN IN THE FOLLOWING FIGURE.
b) APPLY ONLY THE SEGMENT METHOD. DETERMINE THE VALUES OF THE
SHORT FORCE [V] AND THE FLEXIBLE MOMENT [M] ALONG THE FRAME (NODES
A, B, C AND D) AND PRESENT THE GRAPHICS WITH THE CORRESPONDING
VALUES.
SEND SOLUTION PROCEDURE, VALUES IN GRAPHICS AND ANSWERS FRAMED
IN BOXES.
NODE A: SIMPLE SUPPORT AND NODE D: ARTICULATED SUPPORT.
4k...
tatically determinate or indeterminate frame analysis by the stiffness method (45 marks) a) Determine the stiffiness matrix of the frame of problems 16.5 and 16.6 (p. 619). Indicate the degrees-of freedom in all the stiffness matrices. b) D Q4. S (10 marks) etermine all the displacement components at node 2 and all the reactions including the reactions at node 2. Show all calculations. c) (18 marks) of the frame on the compression side showing all the salient values (5 marks)...
15 marks Question 3 Consider the frame shown in Figure Q3 for which all elements have constant stiffness EL. Implement the flexibility method by removing the vertical support at A to create a statically determinate system. The Volume Integral Table is found on page 8 of this examination paper Find the reactions at A and D considering that node C is equidistant to nodes D (a) and B [12 marks] (b) Draw the bending moment diagram for the frame. 13...
Problem 1 [Required]: For the truss shown below (A and D are pinned supports) and EA is constant a) Determine the degree of indeterminacy for this truss b) Calculate the reaction forces at A and D c) Verify your solution using SAP2000. Provide a print out of. i The axial force diagram i) The deflected shape iii) 3-3 Moment diagram iii) Table of joint reactions (after running analysis Display-) Show Tables-) click joint output, element output and structure output >...
Analyze the nonsway frame by the Slope-Deflection Method.
•Evaluate all the reactions
•Consider Special-Case Spans and Statically Determinate (CE 304)
Spans where appropriate
Slope Deflection Method - Frames Problem 1. Given: 8 k 2 k/ft 15 ft E constant Support A is a pin Support C is fixed Support D is a roller 12 ft (A) HAND CALCULATIONS Analyze the nonsway frame by the Slope-Deflection Method. Evaluate all the reactions e Consider Special-Case Spans and Statically Determinate (CE 304) Spans...
Using only bending energy what the horizontal displacement at C to the nearest 0.01in. w=9k/ft E = 29,000 ksi I = 716 in B 8 ft w 10 ft EXAMPLE 9.10 Determine the horizontal displacement of point on the frame shown in Fig. 9-20. Take E = 29(10) ksi and I = 600 in" for both members 8 4k/ 10 Ft T X Fig. 9-20 SOLUTION Virtual Moments m. For convenience, the coordinates x, and x, in Fig. 9-20a will...
