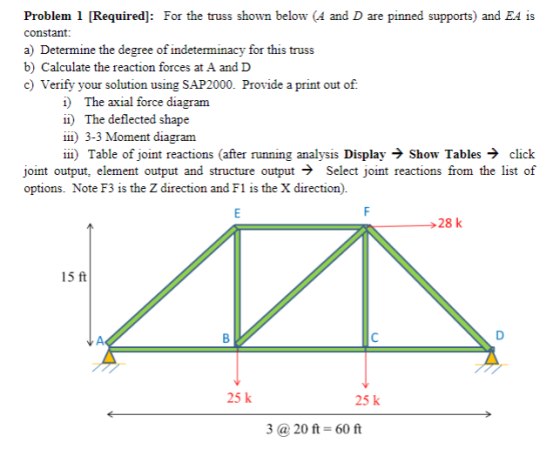

![Problem 1 [Required]: For the truss shown below (A and D are pinned supports) and EA is constant a) Determine the degree of i](http://img.homeworklib.com/questions/f0afe090-a67f-11ea-abbc-c772fc6cf4f7.png?x-oss-process=image/resize,w_560)

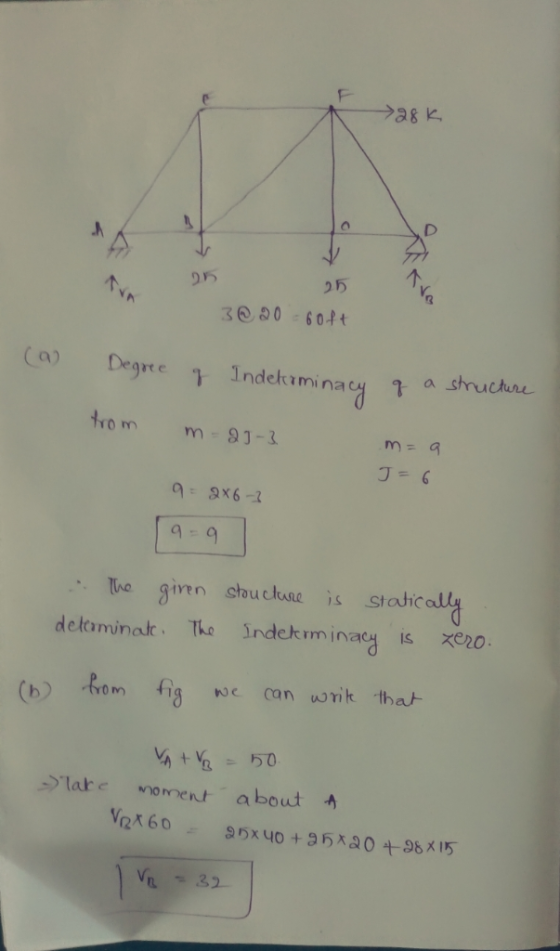

Homework Answers
Add Answer to:
Problem 1 [Required]: For the truss shown below (A and D are pinned supports) and EA...
QUESTION 3 The truss shown in the Figure 3 is having hinged supports at A and B, assuming that the EA is constant for a...
QUESTION 3 The truss shown in the Figure 3 is having hinged supports at A and B, assuming that the EA is constant for all the members. Use a flexibility method to determine the forces in each member and reactions at the supports. 80 kN 5 m 5 m 5 m 5 m Figure 3 130 marks) Total Marks [100
QUESTION 3 The truss shown in the Figure 3 is having hinged supports at A and B, assuming that the...
unsure what to do here A simple truss is shown in the diagram below. Determine the...
unsure what to do here
A simple truss is shown in the diagram below. Determine the reactions at the support and the forces in each member. Point Bis pinned, and point Cis on rollers. P-1900 lb Р 6 ft ве 8 ft 3 ft -Х What is the absolute value in lb. of the reaction in the y direction at joint B? (Type in an integet.) What is the absolute value in lb. of FABP (Type in an integer.) What...
Final Exam 2. Analyze the truss shown below: (50 Points) a. Solve for the reactions at...
Final Exam 2. Analyze the truss shown below: (50 Points) a. Solve for the reactions at supports A and D b. Determine the force developed in members FE, EB, and BC of the truss, and state if these members are in tension or compression. Use the method of sections, c. Draw a free body diagram (FBD) of: i. The entire truss, without its supports ii. The truss section after cutting it iii. Any joint that you solve. m 1 m...
5. (20 points) The truss shown below supports horizontal forces of 6 kips at Joint G,...
5. (20 points) The truss shown below supports horizontal forces of 6 kips at Joint G, 8 kips at Joint E, and 4 kips at Joint C. All truss members are made of steel (E 29,000 ksi). Each of the diagonal members (Members AD, DE, and EH) has a cross-sectional area of 1.2 in2. Each of the vertical members (Members AC, CE, EG, BD, DF and FH) has a cross-sectional area of 2.4 in Each of the horizontal members (Members...
unsure on what to do here A simple truss is shown in the diagram below. Point...
unsure on what to do here
A simple truss is shown in the diagram below. Point Bis on rollers and point kis pinned. Using the Method of Sections, determine the reactions at the supports and the forces in members AD and CE -12-12-124- P2 | Р, P1 D G 9 ft OL c O BO ola •Kx B P1 - 22 kips P2 - 25 kips P3 - 19 kips What is the upward vertical reaction in kips at point...
Homework Problem H 7.E Consider the truss shown below with the loading on joints D, K, S and U. Given: Find: For this p...
Homework Problem H 7.E Consider the truss shown below with the loading on joints D, K, S and U. Given: Find: For this problem: a) Determine the external reactions acting on the truss at supports A and H b) Identify all zero-force members in the truss. c) Determine the load carried by members BC, CJ and MN. Identify each member as either being in tension, in compression or carrying zero load. For this problem, use the following parameters: h 30...
1) Determine the reactions at the supports for the structures shown. The support at A is...
1) Determine the reactions at the supports for the structures shown. The support at A is a Roller and the support at B is a Pin. 2.0 k/ft M 10 k- 3.0 k/ft 12 ft 25 k- 25k-Pokift 15 ft B! 1 F20ft- 2) 2 3 k/ft A beam is supported at points A, C, and E, and is loaded as shown. The support at A is fixed. The supports at C and E are rollers. Hinge-B ce Dl Hinge...
Problem 1: A lateral load resisting system of a 4-story building consists a K-truss and is...
Problem 1: A lateral load resisting system of a 4-story building consists a K-truss and is shown in the figure below. Based on the ASCE 7-10, the wind load at each floor level was calculated and applied to the truss joints as shown in Figure below. 1. Determine if the truss system is determinate and Stable (support A is pin; and support B is roller) 2. Calculate the support reactions 3. Using any analysis method, calculate the forces in members...
Statics Question. Please answer fast Problem 4: For the truss loaded as shown. Determine the forces...
Statics Question. Please answer fast
Problem 4: For the truss loaded as shown. Determine the forces in members EF, EG, and FG. State whether each of these members is in tension (T) or compression (C). You may use whichever method you would like to solve. H 1200 N 4 m A с E 4 m B D F 3 m 3 m 3 m Problem 5: For the frame loaded as shown, find all reactions from the pin supports at...
,Given: The weightless truss loaded as shown in the diagram below. Calculate: 1) The reaction at...
,Given: The weightless truss
loaded as shown in the diagram below. Calculate:
1) The reaction at the supports.
2)The forces in elements CD, DI and HI.
Opera File Edit View History Bookmarks Developer Window Help 100% 642) Fri 2:01 PM Tuğba Q FINAL EXAM, SPRING 2020 Meet - zdy-zh-hvs (24) WhatsApp Montessori School / Cstudio TI Montessori School Estudio Ti Si Archivfotos, lizenzfreie Bilder, moodle.yedi tepe.edu.tr | classroom.google.com/u/0/c/ODYZOTc4MjcyMDJa/a/MTMONTEzNjCONDky/details T.C. Yeditepe Unive... PDF Flip Book Conv.. JPG PDF Çevirme - :...
QUESTION 3 The truss shown in the Figure 3 is having hinged supports at A and B, assuming that the EA is constant for all the members. Use a flexibility method to determine the forces in each member and reactions at the supports. 80 kN 5 m 5 m 5 m 5 m Figure 3 130 marks) Total Marks [100
QUESTION 3 The truss shown in the Figure 3 is having hinged supports at A and B, assuming that the...
unsure what to do here
A simple truss is shown in the diagram below. Determine the reactions at the support and the forces in each member. Point Bis pinned, and point Cis on rollers. P-1900 lb Р 6 ft ве 8 ft 3 ft -Х What is the absolute value in lb. of the reaction in the y direction at joint B? (Type in an integet.) What is the absolute value in lb. of FABP (Type in an integer.) What...
Final Exam 2. Analyze the truss shown below: (50 Points) a. Solve for the reactions at supports A and D b. Determine the force developed in members FE, EB, and BC of the truss, and state if these members are in tension or compression. Use the method of sections, c. Draw a free body diagram (FBD) of: i. The entire truss, without its supports ii. The truss section after cutting it iii. Any joint that you solve. m 1 m...
5. (20 points) The truss shown below supports horizontal forces of 6 kips at Joint G, 8 kips at Joint E, and 4 kips at Joint C. All truss members are made of steel (E 29,000 ksi). Each of the diagonal members (Members AD, DE, and EH) has a cross-sectional area of 1.2 in2. Each of the vertical members (Members AC, CE, EG, BD, DF and FH) has a cross-sectional area of 2.4 in Each of the horizontal members (Members...
unsure on what to do here
A simple truss is shown in the diagram below. Point Bis on rollers and point kis pinned. Using the Method of Sections, determine the reactions at the supports and the forces in members AD and CE -12-12-124- P2 | Р, P1 D G 9 ft OL c O BO ola •Kx B P1 - 22 kips P2 - 25 kips P3 - 19 kips What is the upward vertical reaction in kips at point...
Homework Problem H 7.E Consider the truss shown below with the loading on joints D, K, S and U. Given: Find: For this problem: a) Determine the external reactions acting on the truss at supports A and H b) Identify all zero-force members in the truss. c) Determine the load carried by members BC, CJ and MN. Identify each member as either being in tension, in compression or carrying zero load. For this problem, use the following parameters: h 30...
1) Determine the reactions at the supports for the structures shown. The support at A is a Roller and the support at B is a Pin. 2.0 k/ft M 10 k- 3.0 k/ft 12 ft 25 k- 25k-Pokift 15 ft B! 1 F20ft- 2) 2 3 k/ft A beam is supported at points A, C, and E, and is loaded as shown. The support at A is fixed. The supports at C and E are rollers. Hinge-B ce Dl Hinge...
Problem 1: A lateral load resisting system of a 4-story building consists a K-truss and is shown in the figure below. Based on the ASCE 7-10, the wind load at each floor level was calculated and applied to the truss joints as shown in Figure below. 1. Determine if the truss system is determinate and Stable (support A is pin; and support B is roller) 2. Calculate the support reactions 3. Using any analysis method, calculate the forces in members...
Statics Question. Please answer fast
Problem 4: For the truss loaded as shown. Determine the forces in members EF, EG, and FG. State whether each of these members is in tension (T) or compression (C). You may use whichever method you would like to solve. H 1200 N 4 m A с E 4 m B D F 3 m 3 m 3 m Problem 5: For the frame loaded as shown, find all reactions from the pin supports at...
,Given: The weightless truss
loaded as shown in the diagram below. Calculate:
1) The reaction at the supports.
2)The forces in elements CD, DI and HI.
Opera File Edit View History Bookmarks Developer Window Help 100% 642) Fri 2:01 PM Tuğba Q FINAL EXAM, SPRING 2020 Meet - zdy-zh-hvs (24) WhatsApp Montessori School / Cstudio TI Montessori School Estudio Ti Si Archivfotos, lizenzfreie Bilder, moodle.yedi tepe.edu.tr | classroom.google.com/u/0/c/ODYZOTc4MjcyMDJa/a/MTMONTEzNjCONDky/details T.C. Yeditepe Unive... PDF Flip Book Conv.. JPG PDF Çevirme - :...
