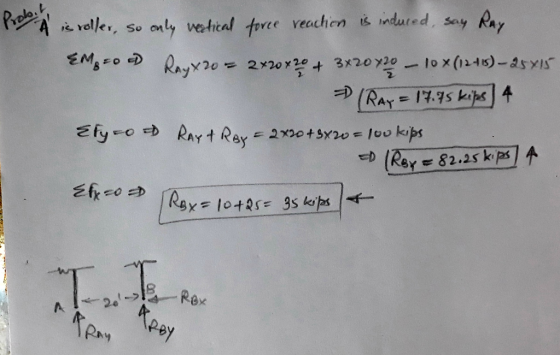

1) Determine the reactions at the supports for the structures shown. The support at A is...
3 k/ft A beam is supported at points A, C, and E, and is loaded as shown. The support at A is fixed. The supports at C and E are rollers. Joints B and D are hinges. BE Hinge /B c2 DHinge - 35 ft- - 35 ft- ft ft a. Determine the reactions at the supports A, C, and E. b. Draw the shear force diagram and the bending moment diagram from A to E. c. Determine the largest...
Question 1 (a) Abeam has a fixed support at A and roller supports at D and E as shown in Fig. Q.la below. Internal hinges are also placed at B and C. (i) Determine all the reactions (ii) Draw the shear force diagram for the beam. (iii) Draw the bending moment diagram for the beam. (20%) (25%) (25° 60 kN/m 40 kN/m 20 kN/m 150 kN 100 kN.m Hinge Fig. Q.1a
A cantilever beam supports the applied loads and moments as shown. (a) Calculate the support reactions. (b) Use the graphical method to construct the shear-force and bending moment diagrams for the beam. Also label the values of shear-force and bending=moment at all key points. 30 kN/m 25 kN 12 kN/m 80 kN.m х A В C D E F 1 m 3 m 1 m 1 m 1 m
Required Information For the beam shown, find the reactions at the supports and plot the shear-force and bending-moment diagrams. V1 = 2 KN and V2 = 4 kN. NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Vi V2 1.2 min А R2 Determine the values of the moments My, M2, and M3 In kNm. Provide values at all key points shown in the given shear-force and bending-moment diagrams....
asap
Q5: Using force method, determine the reactions of the supports for the beam shown in Figure (5). Then draw shear and bending moment diagrams for the beam. EI is constant. Use conjugate beam method to determine deflections. 6 m 50 KN 200 kN.m 9 m 3 m Fig. (5)
Q5: Using force method, determine the reactions of the
supports for the beam shown in Figure (5). Then draw shear and
bending moment diagrams for the beam. EI is constant. Use conjugate
beam method to determine deflections.
I need it in 30min or 1 h
6 m 50 KN 200 kN.m 22 А В. С 9 m to 3m
AC-CD- BC Exercise IV 20 PT a- Determine the reactions at the supports. b- Determine the force in each member of the truss c- State if the members are in tension or 3 ft compression d- If the maximum allowed in each beam is 400lb in tension and 600lb in compression, determine the maximum of admissible load P. 2 ft 2 ft Exercise V: 40 PT 1.6 kN 200 _ 400 mm + 45 The angle strut is welded to...
Question AT For the beam and loading shown in Figure Al: - a. Determine the support reactions b. Draw the shear and bending moment diagrams c. Determine the maximum absolute value of shear force and bending moment. 30 kN/m 60 kN C D K-2m-imta2m- Figure A1
Problem 2: For the beams shown below: 1-Calculate the reactions at the supports. 2- Draw the shear force) and the bending moment diagrams. Indicate all critical values. 800 N Internal hinge 200 N.m 4 m 120 N/m Beam A 8 m 100 KN Internal hinge 20 KN/mm 10m ←ㅡㅡㅡ + + 5 m ㅡㅡ 10m ㅡ ㅡ Beam B
Using force method , determine the reactions of the
supports for the beam shown in Figure ( 5 ) . Then draw shear and
bending moment diagrams for the beam El is constant Use conjugate
beam method to determine deflections ,
6 m 50 KN 200 kN. 9 m - 3 m Fig. (5) BEST WISHES
