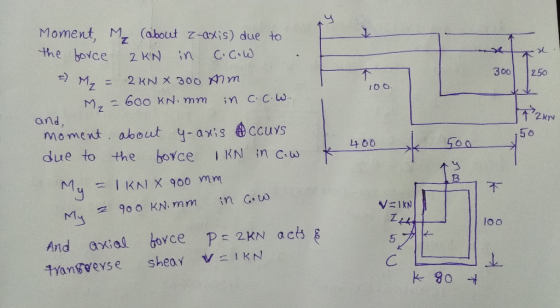

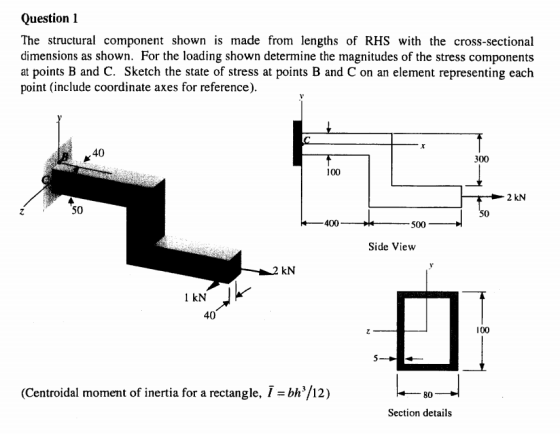

Question The structural component shown is made from lengths of RHS with the cross-sectional dimensions as...
Question 1 An end capped cylindrical pressure vessel with internal pressure p = fully supported at one end, is also subjected to a force F= 10 kN in the y direction at the other end as shown. The internal diameter of the pressure vessel is d= 160 mm and its thickness is t= 10 mm 3 MPa, assumed to be Determine the magnitudes of the stress components in x, y and z coordinates at points H and K and sketch...
4. (30%) For a beam with a T-section as shown, the cross-sectional dimensions of 12 mm. The centroid is 75 mm, h = 90 mm, t the beam are b 60 mm, h, at C and c 30 mm. At a certain section of the beam, the bending moment is M 5.4 kN m and the vertical shear force is V= 30 kN. (a) Show that the moment of inertia of the cross-section about the z axis (the neutral axis)...
The cross-sectional dimensions of the beam shown in the figure are a = 4.8 in, b = 5.8 in, d = 4.5 in., and t = 0.30 in. The internal bending moment about the z centroidal axis is Mz-4.40 kip-ft. Determine (a) the maximum tension bending stress (a positive number) in the beam. (b) the maximum compression bending stress (a negative number) in the beam. typ.) Answers (a) ƠmaxT- psi psi
The cross-sectional dimensions of the beam shown in the figure are a = 4.9 in., b = 6.4 in., d = 4.4 in., and t = 0.31 in. The internal bending moment about the z centroidal axis is My = -4.30 kip-ft. Determine (a) the maximum tension bending stress (a positive number) in the beam. (b) the maximum compression bending stress (a negative number) in the beam. Answers: (a) Omax T = (6) Omax C =
P8.012 The cross-sectional dimensions of a beam are shown. The internal bending moment about the z centroidal axis is M-+3.96 kip-ft. Assume b-7.625 in., d-6.5 in. and t-0.25 in. Determine: (a) the maximum tension bending stress ?T in the beam. (b) the maximum compression bending stress ? c in the beam. ksi ksi.
A cantilever beam supports the loads shown. The cross-sectional dimensions of the shape are also shown. Assume mm, by - 85 mm, 5 mm, 9 mm. Determine - 0.5 m, P. - 4.0 kN, Pg - 7.5 kN, Pe-2.0 kN, -85 (a) the maximum vertical shear stress. (b) the maximum compression bending stress. (c) the maximum tension bending stress. See the coordinate system for the beam in the problem figure with the origin of the x axis at the feed...
Incorrect The cross-sectional dimensions of the beam shown in the figure are a 4.4 in., b-5.4 in, d 5.0 in, and t 0.34 in. The internal bending moment about the z centroidal axis is M,--3.95 kip-ft. Determine (a) the maximum tension bending stress (a positive number) in the beam (b) the maximum compression bending stress (a negative number) in the beam. (typ.) CL CI Answers: (a) Omax T=T4355 psi (b) Ơmax C-T-2887 psi
The cross-sectional dimensions
of the beam shown in the figure are a = 4.2 in., b = 4.7 in., d =
4.2 in., and t = 0.31 in. The internal bending moment about the z
centroidal axis is Mz = -3.60 kip-ft. Determine (a) the maximum
tension bending stress (a positive number) in the beam. (b) the
maximum compression bending stress (a negative number) in the beam.
Answers: (a) σmax T = psi (b) σmax C = psi
P8.012 The...
The cross-sectional dimensions of the beam shown in the figure are r, = 107 mm and ri = 89 mm. Given M, = 19 kN.m, a = 37° , and B = 49°, what are the bending stresses at points H and K? y H a r; *Part 1 Find the area moment of inertia for the cross-section about the z axis. 1, = *1 mm4 the tolerance is +/-4% *Part 2 Find the y coordinates of points H and...
The cross-sectional dimensions of the beam shown in the figure are r, = 125 mm and r, = 81 mm. Given M. = 13 kN.m, a = 316, and B = 45, what are the bending stresses at points Hand K? H/ Part 1 Find the area moment of inertia for the cross-section about the z axis. I. y Part 2 Find the y coordinates of points Hand K. mm ya mm Click if you would like to Show Work...
