A 10 uF capacitor that had been charged to 30 V is discharged through a resistor....

Question

Question

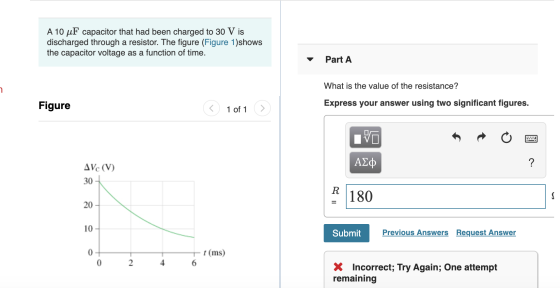

A 10 uF capacitor that had been charged to 30 V is discharged through a resistor. The figure (Figure 1)shows the capacitor vo

science physics

Answer 1

Answer #1

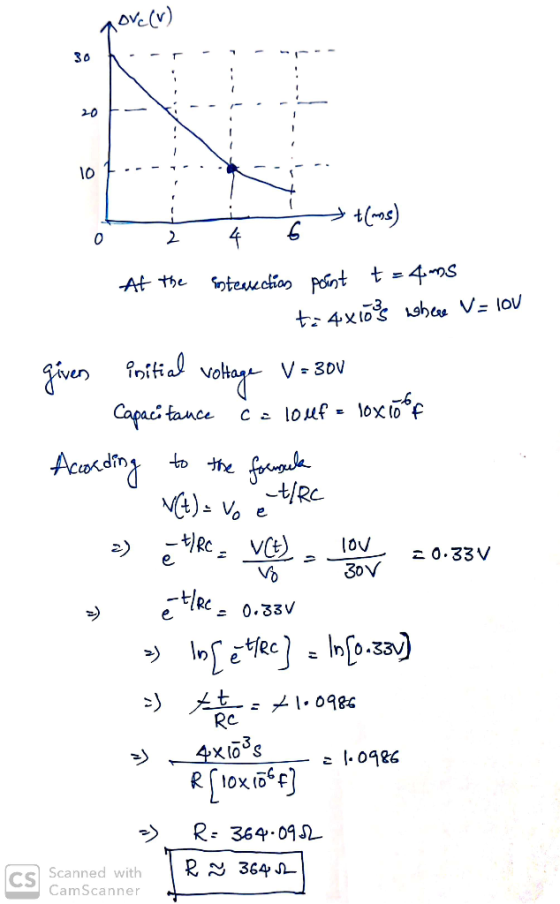

pore(r) 30 h - - - - - - E- - Y-. -- i b y tms) = lov 0 2 4 6 At the intersection point t = 4.ms 1 t= 4x10s where given initi

Answer 2
