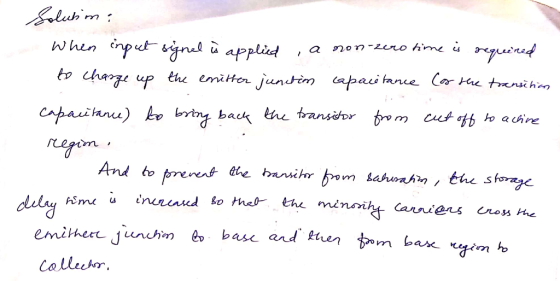

Explain how to prevent a transistor from going into cutoff or saturation when an input signal is applied?
Explain how to prevent a transistor from going into cutoff or saturation when an input signal...
Question 20 If the output of a transistor amplifier is 50 Vrms and the input is 100 mVrms, the voltage gain is 5 500 50 100 Question 21 IV CC is increased in transistor with separate biasing source V BB. the collector current will increase decrease o not change none of these correct A Moving to the next question prevents changes to this answer. Question 22 When operated between cutoff and saturation, the transistor acts like Amplifier Variable resistor Variable...
QUESTION 3 In saturation, collector-emitter voltage is O a.5 V b.equal to collector-bias voltage O c. minimum O d. maximum QUESTION 4 When operated in cutoff and saturation, the transistor acts like a a linear amplifier b. switch O c. variable capacitor Od variable resistor If a sinusoidal voltage is applied to the base of a biased on transistor and the resulting sinusoidal collector-to-emitter voltage is clipped near zero volts, the transistor is to Clipped ICO VE Clipped OVO a....
Figure 3 Transistor amplifire circuit with source Vs and load R b) For the BJT switching circuit shown in Figure 4, i) Calculate the value of Ra so that the transistor is operating in saturation when switched on if the value of Rc is 3.9 kn. ii) What will the output voltage be for the applied input signal voltage shown if Vcet IS 0.2V? 5 V Re o V 5 V B 100 OV Figure 4 BUT switching circuit with...
Explain the filtering of the human speech signal. How can we filter the noisy speech signal from the other sound sources which have high frequency components. Write a matlab script to filter this noisy speech signal from the noise. . The cutoff frequeny of the filter is 3000hz?
Draw a voltage divider BJT transistor circuit that operates with 5 stages of high stability and low gain. A) Explain how it works with high stability and low gain in two sentences. B) (Write the names and functions of the capacities in the circuit C) (When a 1kHz-10mV sinusoidal signal is applied from the input, draw the signals at the output of each stages and the input of the other stage in scale (10 drawings in total including input and...
Laboratory 2: Transistor circuit characteristics A. Objectives: 1. To study the basic characteristics of a transistor circuit. 2. To study the bias circuit of a transistor circuit. B. Apparatus: 1. DC Power supply 2. Experimental boards and corresponding components 3. Electronic calculator (prepared by students) 4. Digital camera (prepared by students for photo taking of the experimental results) 5. Laptop computer with the software PicoScope 6 and Microsoft Word installed. 6. PicoScope PC Oscilloscope and its accessories. 7. Digital multi-meter....
The following parameters were extracted from the datasheet of 2N3904, small signal npn transistor. Maximum operating temperature = 150 °C R junction to ambient = 200 °C/W R junction to case = 83.3 °C/W Ambient temperature = 25 °C a.Calculate the maximum power that the transistor can dissipate without a heat sink. (2 marks) b.The transistor is being designed to have an average power loss of 0.9 W while operating at a junction temperature of 125 °C. Find the thermal...
1. Consider the CMOS source follower (or common drain) amplifier shown below. The NMOS transistor operates in the saturation region. C, C2 are coupling capacitors. 「en C2 Rs 2ok The small-signal model for NMOS transistor is given below gnUgs The parameters are given below: (1) Please derive the complete small-signal circuit for the amplifier (10pts). (2) Apply Miller Effect to the small-signal circuit from step (1) to estimate the 3dB bandwidth of the amplifier. (Note: applying Miller Effect introduces a...
PROBLEM 4 (20 pts) IMPORTANT: Assume all transistors are in saturation. a) Find the small-signal DC gain of the amplifier circuit when the small-signal voltage ViN is applied to the gate of M1. Ignore the body effect for M1 and M2. b) Find the small-signal DC gain of the amplifier circuit when the small-signal voltage Vin is applied to the body of M1. In this case, a DC bias voltage (VB) is applied to the gate of M1. Ignore the...

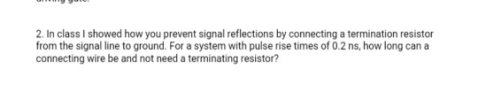

2. In class I showed how you prevent signal reflections by connecting a termination resistor from the signal line to ground. For a system with pulse rise times of 0.2 ns, how long can a connecting wire be and not need a terminating resistor?
