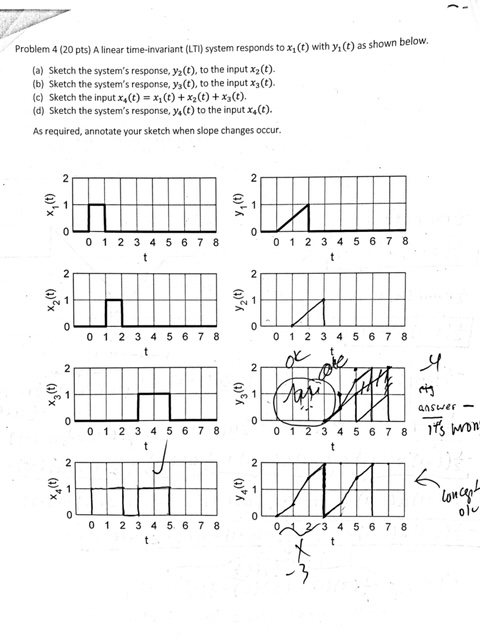

Problem 4(20 pts) A linear time-invariant (LTI) system responds to x, () with y (t) as...
Suppose that we have a linear, time invariant (LTI) system. The system's response to the unit...

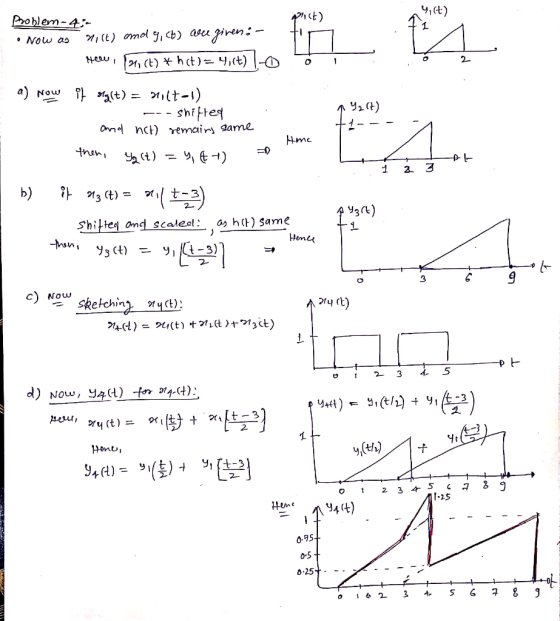

Suppose that we have a linear, time invariant (LTI) system. The system's response to the unit rectangular pulse x1(t) - rect(t) is the signal y1 (t) shown on the left below. The system's response to the triangular pulse x2(t)-A(t) is the signal y2(t) shown on the right below 5. уг (r) 0 0 2 2 (Note: the triangular pulse is the signal A(t) 1 -3 -2-1 0 1 2 3 4 a)First draw the system's response to the input signal...
Question 1: (2 marks) Find the zero-input response yz(t) for a linear time-invariant (LTI) system described...
Question 1: (2 marks) Find the zero-input response yz(t) for a linear time-invariant (LTI) system described by the following differential equation: j(t) + 5y(t) + 6y(t) = f(t) + 2x(t) with the initial conditions yz (0) = 0 and jz (0) = 10. Question 2: (4 marks) The impulse response of an LTI system is given by: h(t) = 3e?'u(t) Find the zero-state response yzs (t) of the system for each the following input signals using convolution with direct integration....
(c) If the impulse response function of a linear time invariant (LTI) system is h0)-Se u(),...
(c) If the impulse response function of a linear time invariant (LTI) system is h0)-Se u(), compute the output of this system due to an input ) which is a 4 second pulse of height 3, as shown in Fig.1 below. x(t) t(sec) 0 Fig.1 Input signal 10 marks/
Question 2 A linear time-invariant (LTI) system has its response described by the following second-order differential...
Question 2 A linear time-invariant (LTI) system has its response described by the following second-order differential equation: d'y) 3-10))-3*0)-6x0) dy_hi dx(t) where x() is the input function and y(t) is the output function. (a) Determine the transfer function H(a) of the system. (b) Determine the impulse response h(t) of the system.
Problem 5.3 (20 Points) A discrete-time, linear time-invariant system H is formed by ar- ranging three...
Problem 5.3 (20 Points) A discrete-time, linear time-invariant system H is formed by ar- ranging three individual LTI systems as shown below. LTI LII System 1 System 2 n] > >yn] ATI System 3 Figure 2: The cascaded LTI system H. The frequency response of the individual system H, is as follows: H2 : H el) = -1 + 2e- ja The impulse response of the other individual systems are as follows: Huhn = 0[n] - [n - 1] +...
3. Consider the Linear Time-Invariant (LTI) system decribed by the following differential equation: dy +504 +...
3. Consider the Linear Time-Invariant (LTI) system decribed by the following differential equation: dy +504 + 4y = u(t) dt dt where y(t) is the output of the system and u(t) is the input. This is an Initial Value Problem (IVP) with initial conditions y(0) = 0, y = 0. Also by setting u(t) = (t) an input 8(t) is given to the system, where 8(t) is the unit impulse function. a. Write a function F(s) for a function f(t)...
An LTI system, with an input g(t) and an output y(t), is represented with the following...
An LTI system, with an input g(t) and an output y(t), is represented with the following state and output matrices. Assuming a zero-state condition, identify the steady state error if the system is subject to a unit step function. [x1 [x2. ) = [] : [22] + [3] AND y = [2 -1) [x3] + [2]g 4. 0 2 1 3 5
3. Consider a linear time invariant system described by the differential equation dy(t) dt RCww +...
3. Consider a linear time invariant system described by the differential equation dy(t) dt RCww + y(t)-x(t) where yt) is the system's output, x(t) ?s the system's input, and R and C are both positive real constants. a) Determine both the magnitude and phase of the system's frequency response. b) Determine the frequency spectrum of c) Determine the spectrum of the system's output, y(r), when d) Determine the system's steady state output response x()-1+cos(t) xu)+cost)
Problem 9.5 (Superposition input) A linear time-invariant system has frequency response The input...
Problem 9.5 (Superposition input) A linear time-invariant system has frequency response The input to the system is zin] = 5 + 20 cos(0.5mn + 0.25m) + 108[n-3]. Use superposition to determine the corresponding output vin] of the LTI system for-oo < nく00.
Problem 9.5 (Superposition input) A linear time-invariant system has frequency response The input to the system is zin] = 5 + 20 cos(0.5mn + 0.25m) + 108[n-3]. Use superposition to determine the corresponding output vin] of the LTI...
Q8) Consider the following causal linear time-invariant (LTI) discrete-time filter with input x[n...
Q8) Consider the following causal linear time-invariant (LTI) discrete-time filter with input x[n] and output y[n] described by bx[n-21- ax[n-3 for n 2 0, where a and b are real-valued positive coefficients. A) Is this a finite impulse response (FIR) or infinite impulse response (IIR) filter? Why? B) What are the initial conditions and their values? Why? C) Draw the block diagram of the filter relating input x[n] and output y[n] D) Derive a formula for the transfer function in...
Suppose that we have a linear, time invariant (LTI) system. The system's response to the unit rectangular pulse x1(t) - rect(t) is the signal y1 (t) shown on the left below. The system's response to the triangular pulse x2(t)-A(t) is the signal y2(t) shown on the right below 5. уг (r) 0 0 2 2 (Note: the triangular pulse is the signal A(t) 1 -3 -2-1 0 1 2 3 4 a)First draw the system's response to the input signal...
Question 1: (2 marks) Find the zero-input response yz(t) for a linear time-invariant (LTI) system described by the following differential equation: j(t) + 5y(t) + 6y(t) = f(t) + 2x(t) with the initial conditions yz (0) = 0 and jz (0) = 10. Question 2: (4 marks) The impulse response of an LTI system is given by: h(t) = 3e?'u(t) Find the zero-state response yzs (t) of the system for each the following input signals using convolution with direct integration....
(c) If the impulse response function of a linear time invariant (LTI) system is h0)-Se u(), compute the output of this system due to an input ) which is a 4 second pulse of height 3, as shown in Fig.1 below. x(t) t(sec) 0 Fig.1 Input signal 10 marks/
Question 2 A linear time-invariant (LTI) system has its response described by the following second-order differential equation: d'y) 3-10))-3*0)-6x0) dy_hi dx(t) where x() is the input function and y(t) is the output function. (a) Determine the transfer function H(a) of the system. (b) Determine the impulse response h(t) of the system.
Problem 5.3 (20 Points) A discrete-time, linear time-invariant system H is formed by ar- ranging three individual LTI systems as shown below. LTI LII System 1 System 2 n] > >yn] ATI System 3 Figure 2: The cascaded LTI system H. The frequency response of the individual system H, is as follows: H2 : H el) = -1 + 2e- ja The impulse response of the other individual systems are as follows: Huhn = 0[n] - [n - 1] +...
3. Consider the Linear Time-Invariant (LTI) system decribed by the following differential equation: dy +504 + 4y = u(t) dt dt where y(t) is the output of the system and u(t) is the input. This is an Initial Value Problem (IVP) with initial conditions y(0) = 0, y = 0. Also by setting u(t) = (t) an input 8(t) is given to the system, where 8(t) is the unit impulse function. a. Write a function F(s) for a function f(t)...
An LTI system, with an input g(t) and an output y(t), is represented with the following state and output matrices. Assuming a zero-state condition, identify the steady state error if the system is subject to a unit step function. [x1 [x2. ) = [] : [22] + [3] AND y = [2 -1) [x3] + [2]g 4. 0 2 1 3 5
3. Consider a linear time invariant system described by the differential equation dy(t) dt RCww + y(t)-x(t) where yt) is the system's output, x(t) ?s the system's input, and R and C are both positive real constants. a) Determine both the magnitude and phase of the system's frequency response. b) Determine the frequency spectrum of c) Determine the spectrum of the system's output, y(r), when d) Determine the system's steady state output response x()-1+cos(t) xu)+cost)
Problem 9.5 (Superposition input) A linear time-invariant system has frequency response The input to the system is zin] = 5 + 20 cos(0.5mn + 0.25m) + 108[n-3]. Use superposition to determine the corresponding output vin] of the LTI system for-oo < nく00.
Problem 9.5 (Superposition input) A linear time-invariant system has frequency response The input to the system is zin] = 5 + 20 cos(0.5mn + 0.25m) + 108[n-3]. Use superposition to determine the corresponding output vin] of the LTI...
Q8) Consider the following causal linear time-invariant (LTI) discrete-time filter with input x[n] and output y[n] described by bx[n-21- ax[n-3 for n 2 0, where a and b are real-valued positive coefficients. A) Is this a finite impulse response (FIR) or infinite impulse response (IIR) filter? Why? B) What are the initial conditions and their values? Why? C) Draw the block diagram of the filter relating input x[n] and output y[n] D) Derive a formula for the transfer function in...
