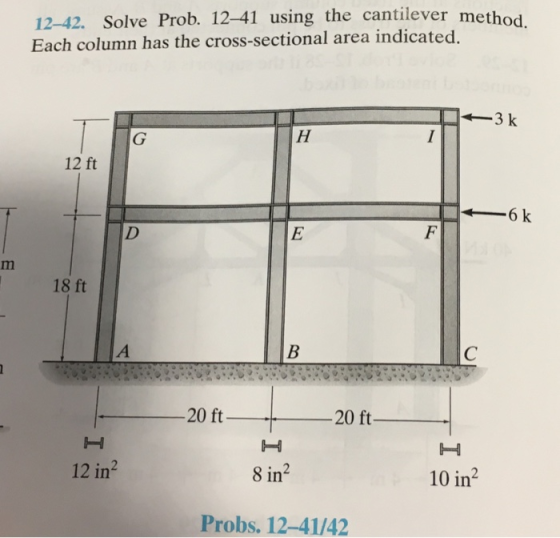

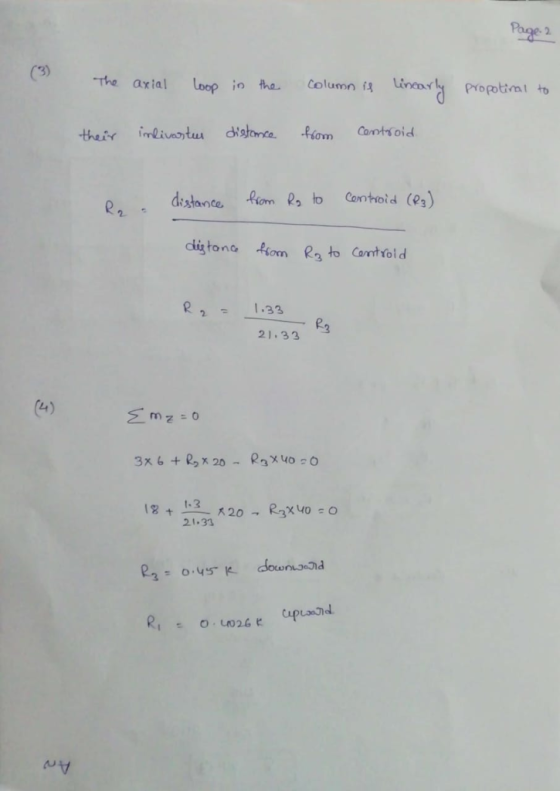

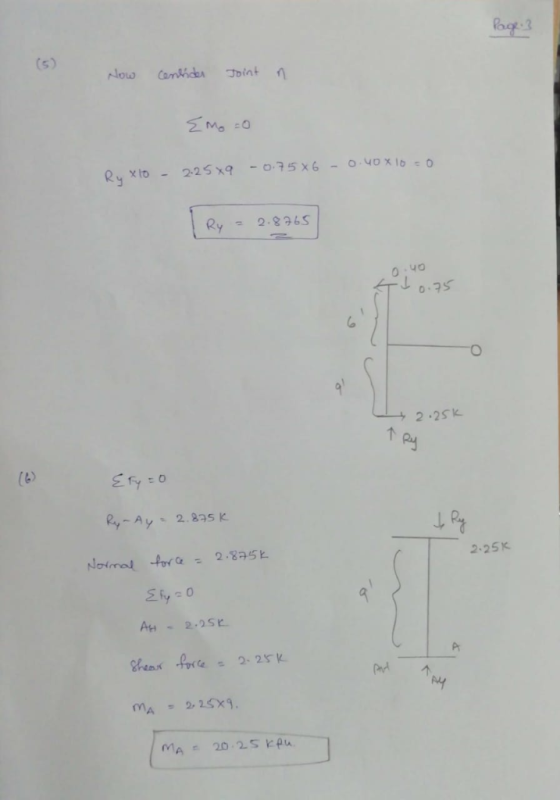

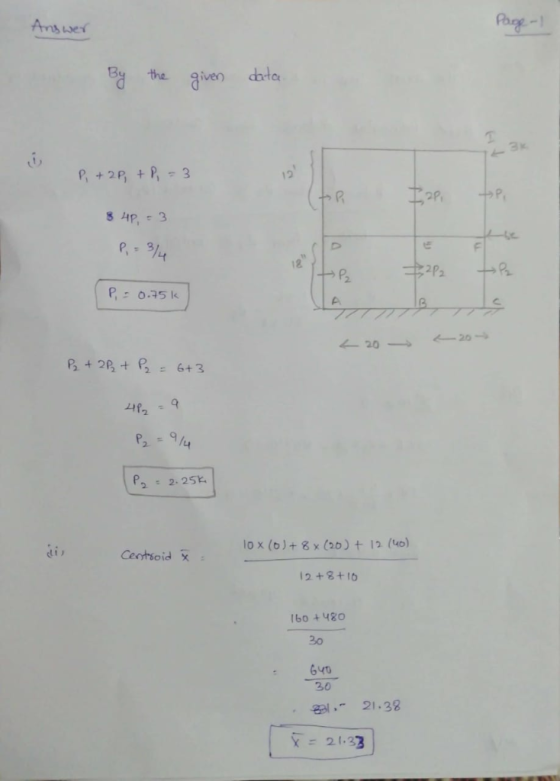

12-42. Solve Prob. 12-41 using the cantilever method Each column has the cross-sectional area indicated. 12...
1. Model the truss below in SAP2000. Give all members a cross-sectional area of 2.0 in-and...
1. Model the truss below in SAP2000. Give all members a cross-sectional area of 2.0 in-and i = 35 in*. Use the steel material (E = 29,000 ksi). Find all of the bar forces and report them in a table. Now change the cross-sectional area of all bars to A 3.0 in2. What change, if any, occurs in the bar forces of this statically determinate truss? 30 k 60k C 60 kT 20 k 18 ft 18 ft
answer please displaced? The cross-sectional area of each member is 1.75 in2 12 in Problem 4...
answer please
displaced? The cross-sectional area of each member is 1.75 in2 12 in Problem 4 (2pts) 5 in The rigid link is supported by a pin at A and two A-36 steel wires, each having an unstretched length of 12 in. and cross-sectional area of 0.0125 in2. Determine the force developed in the wires when the link supports the vertical load of 350 lb. 4 in 6 in 350 lb
326 СНАРТER 6 BENDING EXAMPLE 6.18 The reinforced concrete beam has the cross-sectional area shown in Fig. 6-39a. If it...
326 СНАРТER 6 BENDING EXAMPLE 6.18 The reinforced concrete beam has the cross-sectional area shown in Fig. 6-39a. If it is subjected to a bending moment of M = 60 kip ft determine the normal stress in each of the steel reinforcing rods and the maximum normal stress in the concrete. Take Est = 29(10) ksi and Econc = 3.6(103) ksi SOLUTION Since the beam is made of concrete, in the following analysis we will neglect its strength in supporting...
the horizontal displacement of joint 8. Each member has a cross -sectional area of 4 in2 and a Modulus of Elasticity E = 10.6 (103) Ksi. nNL 800 tb 30 5 ft the horizontal displacement of join...
the horizontal displacement of joint 8. Each member has a cross -sectional area of 4 in2 and a Modulus of Elasticity E = 10.6 (103) Ksi. nNL 800 tb 30 5 ft
the horizontal displacement of joint 8. Each member has a cross -sectional area of 4 in2 and a Modulus of Elasticity E = 10.6 (103) Ksi. nNL 800 tb 30 5 ft
3. Bar AC is rectangular in cross-section and has a cross-sectional area of 0.5 in2. The...
3. Bar AC is rectangular in cross-section and has a cross-sectional area of 0.5 in2. The stress-strain behavior of the material is shown below. Construct the (internal) axial force diagram for Bar AC. Then compute / provide the total deformation in the bar (between A and C) B 8 kip C 5 kip 5 ft a(ksi) 40 20 0.001 0.021 -e (in/in.)
A plane truss element is shown in Figure 4. All elements have cross-sectional area of A = 8 in, a...
A plane truss element is shown in Figure 4. All elements have cross-sectional area of A = 8 in, and elastic modulus of E 2 x 10 psi. Use long-hand solution. 6. 6.(a). Solve for the unknown displacements 6.(b). Solve for strains and stresses in all 3 elements. Show your work and follow the finite element method matrix formulation we have covered in lectures 4 3 20 ft 5 kip 10 kip 240 ft ft 30 ft- Figure 4
A...
An oscillating water column has an air duct of cross-sectional area 1 m2 and a water...
An oscillating water column has an air duct of cross-sectional area 1 m2 and a water duct of cross-sectional area 10 m². If the average speed of the water is 1 m/s calculate the average speed of the air. Concrete A Turbine Structure Air column Wave trough Shoreline Sea
7. A 6 ft long steel rod has a cross-sectional area of 0.08 in2. How much...
7. A 6 ft long steel rod has a cross-sectional area of 0.08 in2. How much does the rod stretch under an axi- al tensile load of 400 lb? Report the answer in inches.
A plane truss element is shown in Figure 4, All elements have cross-sectional area of A = 8 in, a...
A plane truss element is shown in Figure 4, All elements have cross-sectional area of A = 8 in, and elastic modulus of E-2 x 10° psi. Use long-hand solution 6. 6.(a). Solve for the unknown displacements. 6.(b). Solve for strains and stresses in al 3 elements. Show your work and follow the finite element method matrix formulation we have covered in lectures. 4 5 kip 10 240 ft 30 ft30 ft Figure 4.
A plane truss element is shown...
A particular wire has a resistivity of 2.1*10^-8 Ω · m and a cross-sectional area of...
A particular wire has a resistivity of 2.1*10^-8 Ω · m and a cross-sectional area of 2.9*10^-6 m2. A length of this wire is to be used as a resistor that will receive 41 W of power when connected across a 20-V battery. What length of wire is required? _________km
1. Model the truss below in SAP2000. Give all members a cross-sectional area of 2.0 in-and i = 35 in*. Use the steel material (E = 29,000 ksi). Find all of the bar forces and report them in a table. Now change the cross-sectional area of all bars to A 3.0 in2. What change, if any, occurs in the bar forces of this statically determinate truss? 30 k 60k C 60 kT 20 k 18 ft 18 ft
answer please
displaced? The cross-sectional area of each member is 1.75 in2 12 in Problem 4 (2pts) 5 in The rigid link is supported by a pin at A and two A-36 steel wires, each having an unstretched length of 12 in. and cross-sectional area of 0.0125 in2. Determine the force developed in the wires when the link supports the vertical load of 350 lb. 4 in 6 in 350 lb
326 СНАРТER 6 BENDING EXAMPLE 6.18 The reinforced concrete beam has the cross-sectional area shown in Fig. 6-39a. If it is subjected to a bending moment of M = 60 kip ft determine the normal stress in each of the steel reinforcing rods and the maximum normal stress in the concrete. Take Est = 29(10) ksi and Econc = 3.6(103) ksi SOLUTION Since the beam is made of concrete, in the following analysis we will neglect its strength in supporting...
the horizontal displacement of joint 8. Each member has a cross -sectional area of 4 in2 and a Modulus of Elasticity E = 10.6 (103) Ksi. nNL 800 tb 30 5 ft
the horizontal displacement of joint 8. Each member has a cross -sectional area of 4 in2 and a Modulus of Elasticity E = 10.6 (103) Ksi. nNL 800 tb 30 5 ft
3. Bar AC is rectangular in cross-section and has a cross-sectional area of 0.5 in2. The stress-strain behavior of the material is shown below. Construct the (internal) axial force diagram for Bar AC. Then compute / provide the total deformation in the bar (between A and C) B 8 kip C 5 kip 5 ft a(ksi) 40 20 0.001 0.021 -e (in/in.)
A plane truss element is shown in Figure 4. All elements have cross-sectional area of A = 8 in, and elastic modulus of E 2 x 10 psi. Use long-hand solution. 6. 6.(a). Solve for the unknown displacements 6.(b). Solve for strains and stresses in all 3 elements. Show your work and follow the finite element method matrix formulation we have covered in lectures 4 3 20 ft 5 kip 10 kip 240 ft ft 30 ft- Figure 4
A...
An oscillating water column has an air duct of cross-sectional area 1 m2 and a water duct of cross-sectional area 10 m². If the average speed of the water is 1 m/s calculate the average speed of the air. Concrete A Turbine Structure Air column Wave trough Shoreline Sea
7. A 6 ft long steel rod has a cross-sectional area of 0.08 in2. How much does the rod stretch under an axi- al tensile load of 400 lb? Report the answer in inches.
A plane truss element is shown in Figure 4, All elements have cross-sectional area of A = 8 in, and elastic modulus of E-2 x 10° psi. Use long-hand solution 6. 6.(a). Solve for the unknown displacements. 6.(b). Solve for strains and stresses in al 3 elements. Show your work and follow the finite element method matrix formulation we have covered in lectures. 4 5 kip 10 240 ft 30 ft30 ft Figure 4.
A plane truss element is shown...
