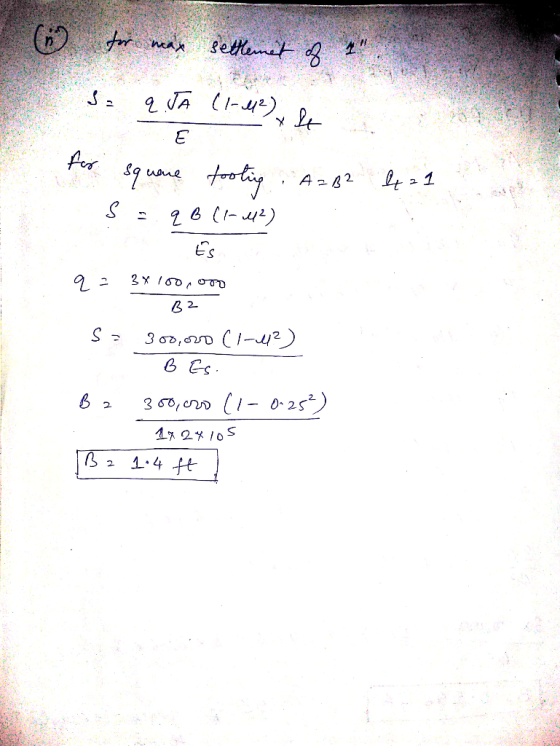

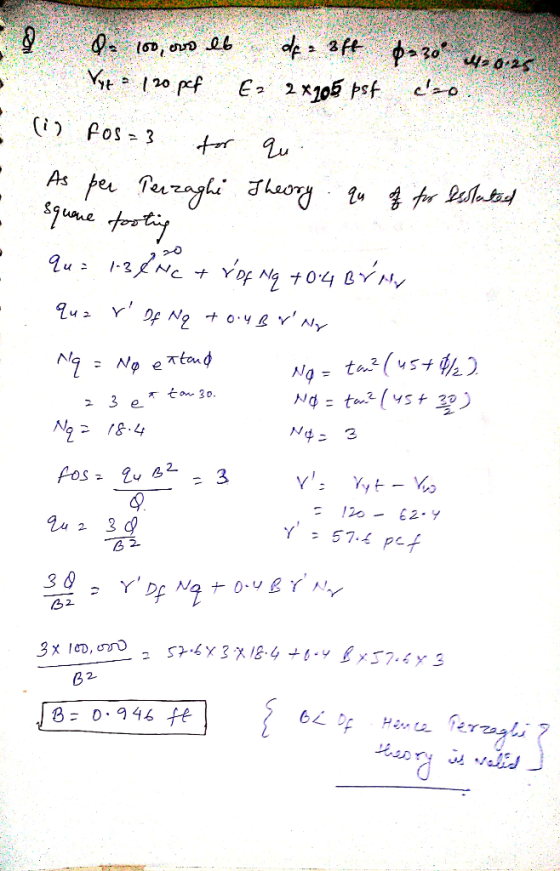

A 100,000 lb load has to be carried by a concrete square foundation placed 3 ft...
Homework Answers
Add Answer to:
A 100,000 lb load has to be carried by a concrete square
foundation placed 3 ft...
A square footing with a width of 4 ft is subjected to a concentric load of...
A square footing with a width of 4 ft is subjected to a concentric load of 200 kips. The bottom of the footing is located 6 ft below the ground surface. The ground water table is located at a depth of 8 ft below the ground surface. The given soil properties are γt of 115 pcf, γsat of 122 pcf, ϕ' of 25°, c' of 800 psf, Gs of 2.68 and wn of 15%. Determine the allowable bearing capacity using...
Geotechnical square foundation design 1. A square footing is subjected to a vertical load of 50,000...
Geotechnical square foundation design
1. A square footing is subjected to a vertical load of 50,000 lbs and a moment of 25,000 lb-ft. The depth of the foundation is 4 ft. The water table is at the base of the footing. The soil above the base of the footing has y-100 pcf and a friction angle of 30°. The soil below the base of the footing has a Ysat 120 pcf, a friction angle of 20° and c-100 psf. Find...
help please A square footing is founded at 3-ft depth below ground surface as shown in...
help please
A square footing is founded at 3-ft depth below ground surface as shown in Fig1, The factored axial load acting on the square footing is 140 kips, Determine the size of the footing (B x B) if the Factor of Safety (F.S.) is 3.0. Ground surface ЗА B-? Silty Sand Fig.1 A 68-ft long pre-stressed concrete pile with square cross section (14 inch) is driven into the soil profile shown in Fig. 2. Compute the ultimate compressive load...
HW#10 Given the following column loading and footing information, determine the size of a mat foundation...
HW#10 Given the following column loading and footing information, determine the size of a mat foundation shown below: I 15 Column Information: Column A: Live load = 40 kips, Dead load = 50 kips Column B: Live load = 80 kips, Dead load = 100 kips. Distance between two columns: 15 ft. W soil = 120 psf 24" I CA C. Footing information: Distance from column A to edge of footing: 1 ft. Allowable soil bearing capacity = 3000 psf...
An eccentrically loaded (one-way eccentricity) square foundation, given: B = 5 ft, L = 5 ft,...
An eccentrically loaded (one-way eccentricity) square foundation, given: B = 5 ft, L = 5 ft, Df = 4 ft, e = 0.5 ft, γt = 110 pcf, c’=0 and ϕ’ = 30°. Note the ground water table is at great depth below the footing. Calculate the general bearing capacity to determine the maximum allowable load that the foundation can carry using Meyerhof’s effective area method for a FS of 3.
1. For the foundation shown below: spp 60 kips (Load obtained from structural engineer) G.W.T 몰3...
1. For the foundation shown below: spp 60 kips (Load obtained from structural engineer) G.W.T 몰3ft Poorly Graded Sand (SP): 1m115 pcf (above G.W.T.) Ysat 125 pcf (below G.W.T.) Square footing, 4'x 4 imension Infoma 1-ft x 1-ft square concrete column. 1-ft thick foot" flanges conc 150 pcf Assume weight of reinforcing steel included in unit weight of concrete. Assume compacte weighs the same as in-situ soil d backfil Assume this foundation is being designed for a warehouse that had...
3. The bearing capacity of shallow foundations (i.e. footings) depends on the soil shear strength (ie....
3. The bearing capacity of shallow foundations (i.e. footings) depends on the soil shear strength (ie. ф and c). The ultimate bearing capacity (qultnei) of the soil is calculated using the following equation: Dr qult.net bearing capacity failure surface i. Frictional resistance along failure surface due to self-weight of soil below footing level footing level. Ny. No, and Ng are dimensionless bearing capacity factors that depend on the ii. Cohesive resistance along failure surface below footing level. iii. Frictional resistance...
Please solve each and explain process and equations 5. (30) Define allowable bearing capacity of a circular foundation of a radius 2R-18 ft using the Terzaghi's bearing capacity equation for a gen...
Please solve each and explain
process and equations
5. (30) Define allowable bearing capacity of a circular foundation of a radius 2R-18 ft using the Terzaghi's bearing capacity equation for a general failure, if the water table were at and below the elevation of the bottom of the foundation. A factor of safety is 2.2. Qall 6 ft SAND φ =36 0 e007 2R 16 ft> 16 ft CLAY 18 ft : 0.5 еой 0.8 Y sat 135 pcf ROCK...
What is the ultimate load that can be applied to the drilled 3-feet diameter concrete pile...
What is the ultimate load that can be applied to the drilled 3-feet diameter concrete pile in the soil conditions shown below? Qult clay 107 pcf Cu 550 psf 12 ft Sand Ysat = 1 18 pcf ф 37.5 7.5 ft Figure Not to Scale 5.75 ft
Problem 3: An SAS timber nominal 6 in X6 in) is subjected to a compressive load...
Problem 3: An SAS timber nominal 6 in X6 in) is subjected to a compressive load of 22,000 lb. as shown below. The column is supported by a 2 ft.-square concrete footing that is, in turn, supported by soil. Neglect the weight of the column and the footing. Compute: a) The bearing stress on the contact surface between the column and the footing. (5 points) b) The bearing stress at the base of the footing (PSF). (5 points) 22,000 lb...
Geotechnical square foundation design
1. A square footing is subjected to a vertical load of 50,000 lbs and a moment of 25,000 lb-ft. The depth of the foundation is 4 ft. The water table is at the base of the footing. The soil above the base of the footing has y-100 pcf and a friction angle of 30°. The soil below the base of the footing has a Ysat 120 pcf, a friction angle of 20° and c-100 psf. Find...
help please
A square footing is founded at 3-ft depth below ground surface as shown in Fig1, The factored axial load acting on the square footing is 140 kips, Determine the size of the footing (B x B) if the Factor of Safety (F.S.) is 3.0. Ground surface ЗА B-? Silty Sand Fig.1 A 68-ft long pre-stressed concrete pile with square cross section (14 inch) is driven into the soil profile shown in Fig. 2. Compute the ultimate compressive load...
HW#10 Given the following column loading and footing information, determine the size of a mat foundation shown below: I 15 Column Information: Column A: Live load = 40 kips, Dead load = 50 kips Column B: Live load = 80 kips, Dead load = 100 kips. Distance between two columns: 15 ft. W soil = 120 psf 24" I CA C. Footing information: Distance from column A to edge of footing: 1 ft. Allowable soil bearing capacity = 3000 psf...
1. For the foundation shown below: spp 60 kips (Load obtained from structural engineer) G.W.T 몰3ft Poorly Graded Sand (SP): 1m115 pcf (above G.W.T.) Ysat 125 pcf (below G.W.T.) Square footing, 4'x 4 imension Infoma 1-ft x 1-ft square concrete column. 1-ft thick foot" flanges conc 150 pcf Assume weight of reinforcing steel included in unit weight of concrete. Assume compacte weighs the same as in-situ soil d backfil Assume this foundation is being designed for a warehouse that had...
3. The bearing capacity of shallow foundations (i.e. footings) depends on the soil shear strength (ie. ф and c). The ultimate bearing capacity (qultnei) of the soil is calculated using the following equation: Dr qult.net bearing capacity failure surface i. Frictional resistance along failure surface due to self-weight of soil below footing level footing level. Ny. No, and Ng are dimensionless bearing capacity factors that depend on the ii. Cohesive resistance along failure surface below footing level. iii. Frictional resistance...
Please solve each and explain
process and equations
5. (30) Define allowable bearing capacity of a circular foundation of a radius 2R-18 ft using the Terzaghi's bearing capacity equation for a general failure, if the water table were at and below the elevation of the bottom of the foundation. A factor of safety is 2.2. Qall 6 ft SAND φ =36 0 e007 2R 16 ft> 16 ft CLAY 18 ft : 0.5 еой 0.8 Y sat 135 pcf ROCK...
What is the ultimate load that can be applied to the drilled 3-feet diameter concrete pile in the soil conditions shown below? Qult clay 107 pcf Cu 550 psf 12 ft Sand Ysat = 1 18 pcf ф 37.5 7.5 ft Figure Not to Scale 5.75 ft
Problem 3: An SAS timber nominal 6 in X6 in) is subjected to a compressive load of 22,000 lb. as shown below. The column is supported by a 2 ft.-square concrete footing that is, in turn, supported by soil. Neglect the weight of the column and the footing. Compute: a) The bearing stress on the contact surface between the column and the footing. (5 points) b) The bearing stress at the base of the footing (PSF). (5 points) 22,000 lb...
