Geotechnical square foundation design

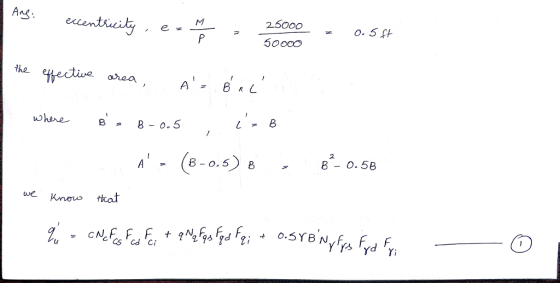

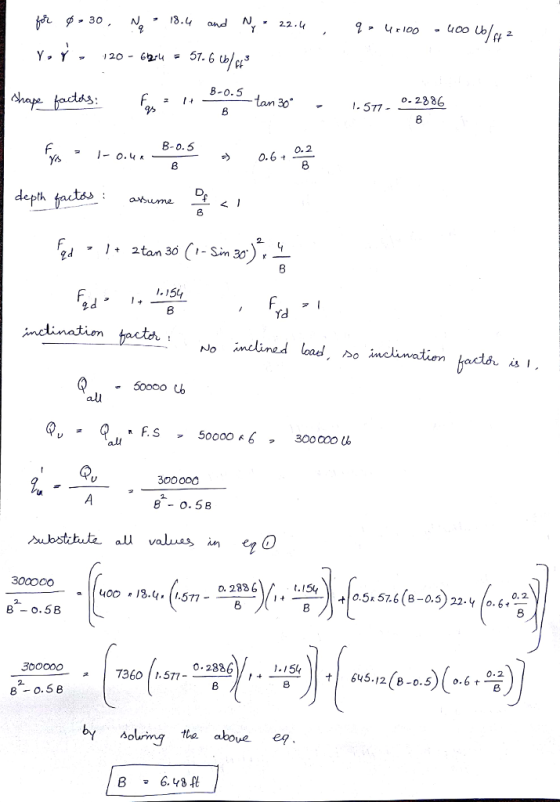

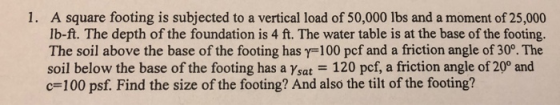

1. A square footing is subjected to a vertical load of 50,000...
A square footing with a width of 4 ft is subjected to a concentric load of...
A square footing with a width of 4 ft is subjected to a concentric load of 200 kips. The bottom of the footing is located 6 ft below the ground surface. The ground water table is located at a depth of 8 ft below the ground surface. The given soil properties are γt of 115 pcf, γsat of 122 pcf, ϕ' of 25°, c' of 800 psf, Gs of 2.68 and wn of 15%. Determine the allowable bearing capacity using...
2. Design a square spread footing for the following conditions. Service dead load is 350 kips,...
2. Design a square spread footing for the following conditions. Service dead load is 350 kips, service live load is 275 kips. Soil density is 130 lb/ftº. Allowable soil pressure is 4500 psf. Column is 18 in. square. Geotechnical analyses have determined the width to be 13 ft. fe' = 3500 psi normal weight concrete, and fy= 60 ksi. The base of the footing is placed 5 ft below the ground surface. Note: you don't need to design the bar...
HW#10 Given the following column loading and footing information, determine the size of a mat foundation...
HW#10 Given the following column loading and footing information, determine the size of a mat foundation shown below: I 15 Column Information: Column A: Live load = 40 kips, Dead load = 50 kips Column B: Live load = 80 kips, Dead load = 100 kips. Distance between two columns: 15 ft. W soil = 120 psf 24" I CA C. Footing information: Distance from column A to edge of footing: 1 ft. Allowable soil bearing capacity = 3000 psf...
1. Design a wall footing for the following conditions. Service dead load is 6 kips/ft, service...
1. Design a wall footing for the following conditions. Service dead load is 6 kips/ft, service live load is 8 kips/ft. Soil unit weight is 120 lb/ft?. Allowable soil pressure, qa is 4000 psf. The base of the footing is placed 3 ft below the ground surface. Wall is 12 in, thick. Geotechnical analyses have determined the width to be 4 ft. fe' = 3500 psi normal weight concrete, and fy = 60 ksi. Note: you don't need to design...
A 100,000 lb load has to be carried by a concrete square foundation placed 3 ft...
A 100,000 lb load has to be carried by a concrete square foundation placed 3 ft below the surface of a saturated sandy soil having the following properties: γt = 120 pcf E = 2x105 psf φ' = 30deg ν = 0.25 c' = 0 What footing width will be required for a factor of safety with respect to the ultimate bearing capacity of 3.0, and for a maximum settlement of 1". The water table is at the ground surface.
2. A 5-ft square, 2-ft deep spread footing is subjected to a concentric vertical load of...
2. A 5-ft square, 2-ft deep spread footing is subjected to a concentric vertical load of 60 k and an overturning moment of 30 ft-k. The overturning moment acts parallel to one of the sides of the footing, the top of the footing is flush with the ground surface, and the ground water table is at a depth of 20 ft below the ground surface. Compute the minimum and maximum bearing pressures, d show the distribution of bearing pressure in...
CVE 313- 1- Design a square footing for the interior column shown in the figure. The column carries 2 k 't of uniform live load and 1.5 k/t of uniform dead load (including the self weiht of t...
CVE 313- 1- Design a square footing for the interior column shown in the figure. The column carries 2 k 't of uniform live load and 1.5 k/t of uniform dead load (including the self weiht of the structure), the base of the footing is 5 ft below grade, the soil weight is 100 lb/ft', and q," 5000 psf. and concrete unit weight is 150 lb/ (25 points) NOTE: Your design should only include the following (one-way shear, two-way shear,...
1) Compute the total load, Q, in kips, using the Hansen equations, for a footing 4...
1) Compute the total load, Q, in kips, using the Hansen equations, for a footing 4 ft wide by 8 ft long founded on a stratum of sand. The vertical load is uniformly distributed; there is no horizontal load. The value of f D is 3.5 ft, the water table is at the base of the footing, and the friction angle from the triaxial test is 30º. For the sand above the base of the footing, the water content is...
A 3 m square footing carries a vertical downward load of 900 kN. The embedment depth...
A 3 m square footing carries a vertical downward load of 900 kN. The embedment depth is 1 m. The soil beneath this footing has the following properties: y = 18 kN/m”, Ysat = 20 kN/mº, c' = 5 kPa, and o' = 36º. The groundwater table is at a depth of 2 m below the ground surface. Compute factor of safety against bearing capacity failure.
Problem 1: (20 points) Given A square footing (5 ft by 5 ft) is subjected to...
Problem 1: (20 points) Given A square footing (5 ft by 5 ft) is subjected to an inclined load as shown in g. Required The factor of safety against bearing capacity failure. 30 a 40 kips 5 ft 5 ft 1.0 a 0.8 0.6 0.4 0.2 Cohesive Soil Cohesive Soil 0.8 D/B 1 Granular Soil 0.6 Granular Soil 0.4 De-o- 0.2 020 40 60 80 90 2 40 60 80 90 Inclination a of Load to Vertical inclination α. Of...
2. Design a square spread footing for the following conditions. Service dead load is 350 kips, service live load is 275 kips. Soil density is 130 lb/ftº. Allowable soil pressure is 4500 psf. Column is 18 in. square. Geotechnical analyses have determined the width to be 13 ft. fe' = 3500 psi normal weight concrete, and fy= 60 ksi. The base of the footing is placed 5 ft below the ground surface. Note: you don't need to design the bar...
HW#10 Given the following column loading and footing information, determine the size of a mat foundation shown below: I 15 Column Information: Column A: Live load = 40 kips, Dead load = 50 kips Column B: Live load = 80 kips, Dead load = 100 kips. Distance between two columns: 15 ft. W soil = 120 psf 24" I CA C. Footing information: Distance from column A to edge of footing: 1 ft. Allowable soil bearing capacity = 3000 psf...
1. Design a wall footing for the following conditions. Service dead load is 6 kips/ft, service live load is 8 kips/ft. Soil unit weight is 120 lb/ft?. Allowable soil pressure, qa is 4000 psf. The base of the footing is placed 3 ft below the ground surface. Wall is 12 in, thick. Geotechnical analyses have determined the width to be 4 ft. fe' = 3500 psi normal weight concrete, and fy = 60 ksi. Note: you don't need to design...
2. A 5-ft square, 2-ft deep spread footing is subjected to a concentric vertical load of 60 k and an overturning moment of 30 ft-k. The overturning moment acts parallel to one of the sides of the footing, the top of the footing is flush with the ground surface, and the ground water table is at a depth of 20 ft below the ground surface. Compute the minimum and maximum bearing pressures, d show the distribution of bearing pressure in...
CVE 313- 1- Design a square footing for the interior column shown in the figure. The column carries 2 k 't of uniform live load and 1.5 k/t of uniform dead load (including the self weiht of the structure), the base of the footing is 5 ft below grade, the soil weight is 100 lb/ft', and q," 5000 psf. and concrete unit weight is 150 lb/ (25 points) NOTE: Your design should only include the following (one-way shear, two-way shear,...
A 3 m square footing carries a vertical downward load of 900 kN. The embedment depth is 1 m. The soil beneath this footing has the following properties: y = 18 kN/m”, Ysat = 20 kN/mº, c' = 5 kPa, and o' = 36º. The groundwater table is at a depth of 2 m below the ground surface. Compute factor of safety against bearing capacity failure.
Problem 1: (20 points) Given A square footing (5 ft by 5 ft) is subjected to an inclined load as shown in g. Required The factor of safety against bearing capacity failure. 30 a 40 kips 5 ft 5 ft 1.0 a 0.8 0.6 0.4 0.2 Cohesive Soil Cohesive Soil 0.8 D/B 1 Granular Soil 0.6 Granular Soil 0.4 De-o- 0.2 020 40 60 80 90 2 40 60 80 90 Inclination a of Load to Vertical inclination α. Of...
