A piston cylinder device initially contains 1.2kg of saturated liquid water at 220oC. Now, heat is...

A piston cylinder device initially contains 1.2kg of saturated liquid water at 220oC. Now, heat is transferred to the water until the volume quadruples and the cylinder contains saturated vapor only. Determine (a) the final volume of the tank, (b) the final temperature (c) the final pressure, and (d) the change in internal energy of the tank. To check your work, enter the final pressure in kPa in the box below.  Also, sketch this process on a T-v diagram.

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

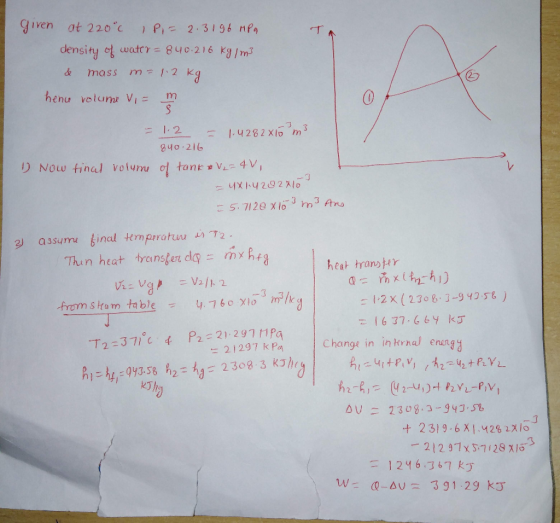

giren at 220°c IP,= 2.3196 MPa density of water = 840.216 kg / m3 & mass m= 1.2 kg henu volume Vi= m = 1.2 = 1.4282X10 m3 840
