A piston–cylinder device initially contains air at 150 kPa and 27 °C. In this state, the...
A piston–cylinder device initially contains air at 150 kPa and 27 °C.
In this state, the piston is resting on a pair of stops, and the
enclosed volume is 400 litres. The mass of the piston is such that
a 200 kPa pressure is required to move it.
The air is now heated until its volume has doubled.

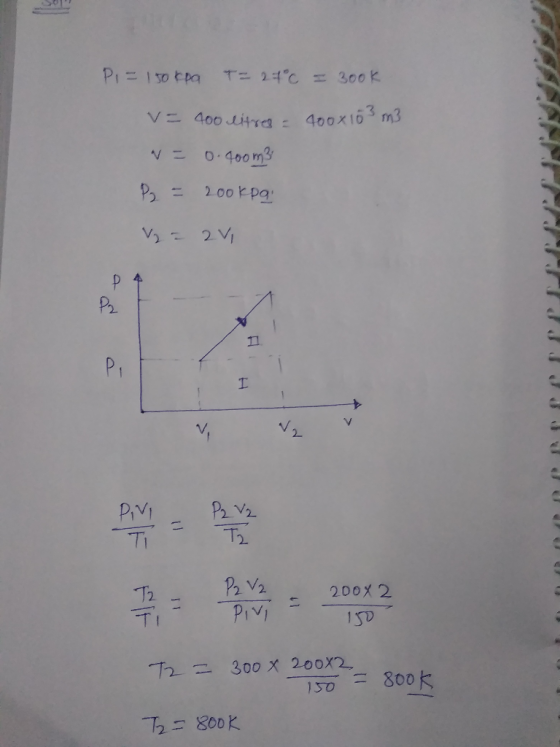

Sketch the process on a P-V diagram and determine

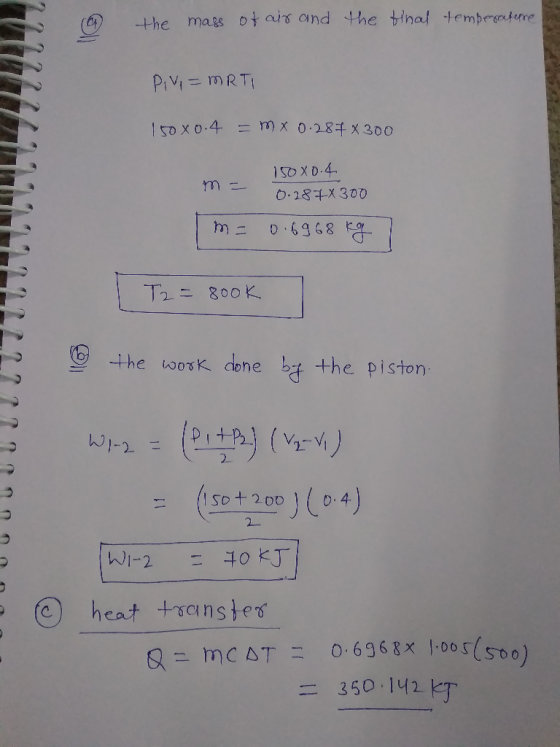

(a) the mass of air and the final temperature,
(b) the work done by the piston,
(c) the total heat transferred to the air
Homework Answers
Add Answer to:
A piston–cylinder device initially contains air at 150 kPa and
27 °C.
In this state, the...
