A piston-cylinder device initially contains steam at 200 kPa, 250°C, and 0.4 m3. At this state,...

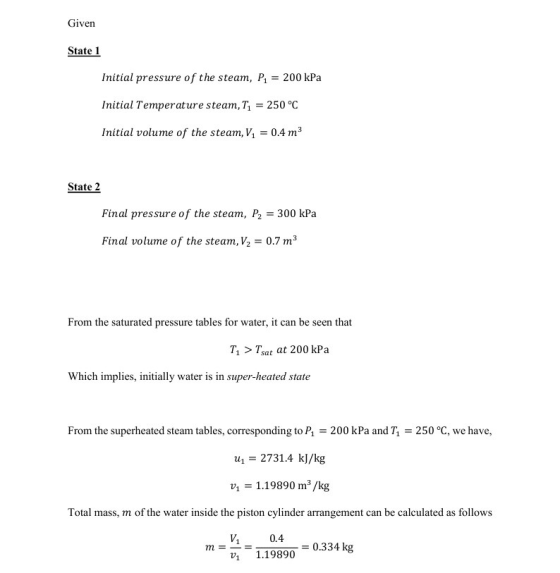

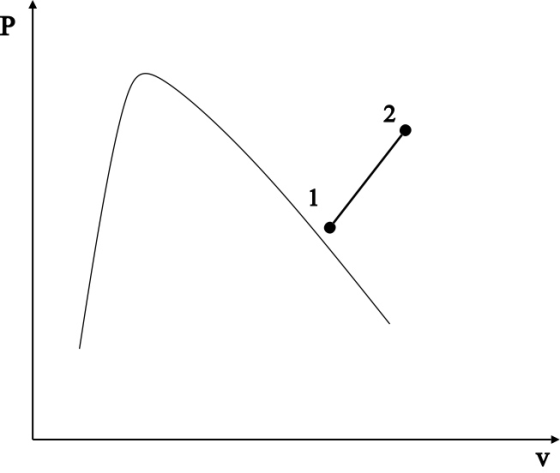

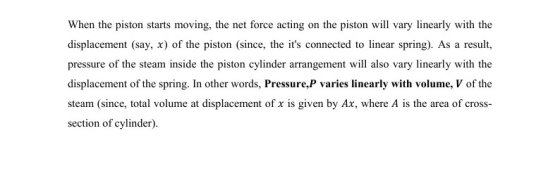

A piston-cylinder device initially contains steam at 200 kPa, 250°C, and 0.4 m3. At this state, a linear spring is touching the piston, but exerts no force on it. Heat is now slowly transferred to the steam, causing the pressure and the volume to rise to 300 kPa and 0.7 m3, respectively. Show the process on a P-v diagram with respect to saturation lines and determine the following:

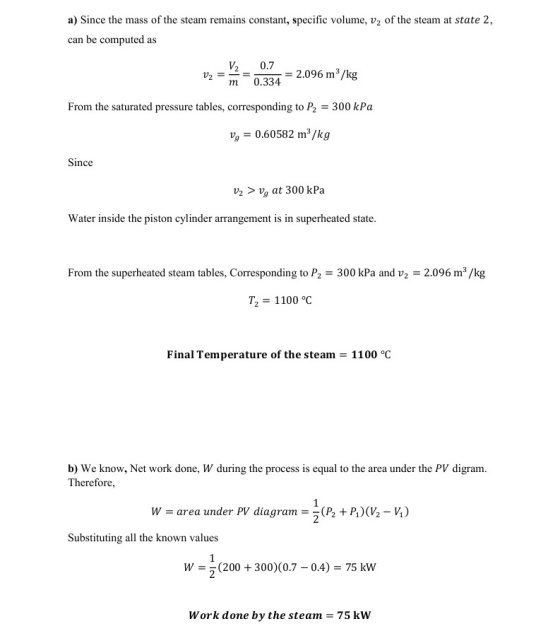

a. The final temperature
b. The work done by the steam

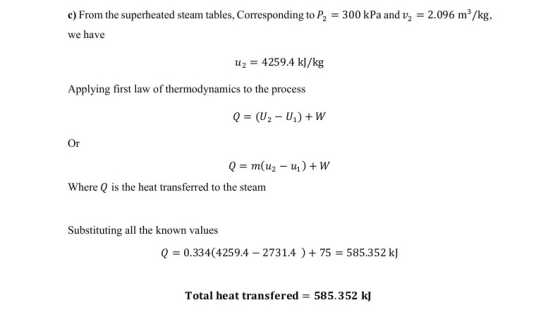

c. The total heat transferred
Homework Answers
