Homework Answers
Add Answer to:

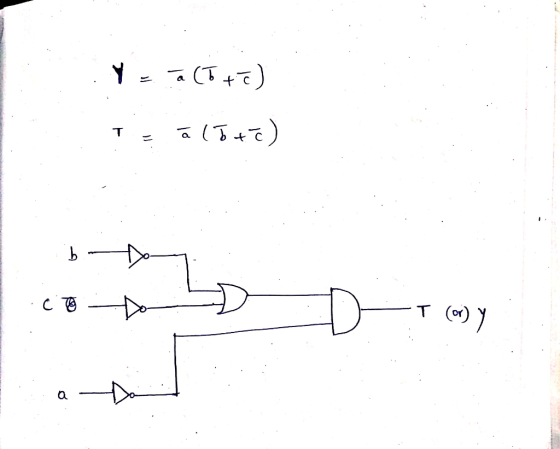

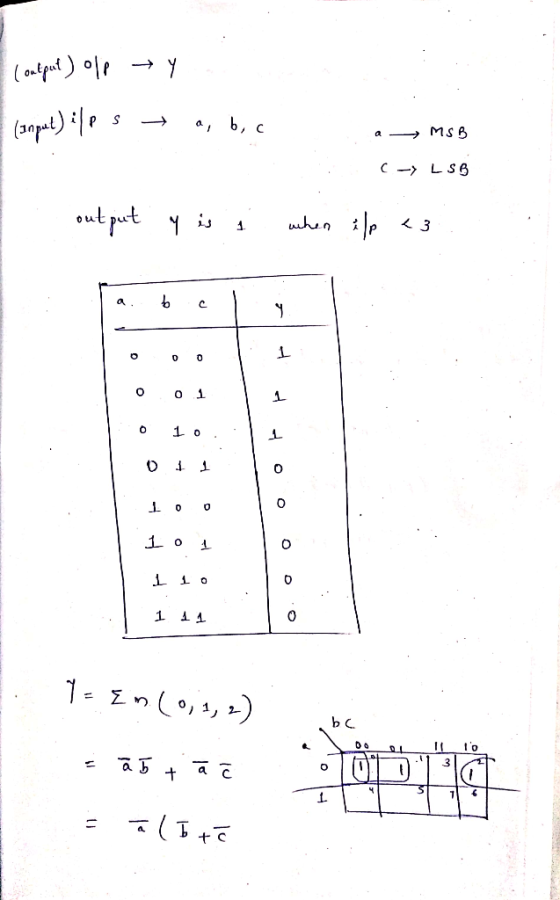

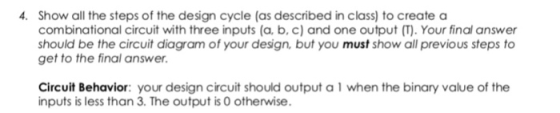

Show all the steps of the design cycle (as described in class) to create a combinational...
Used 2. (10 points) Design a sequential circuit, which has the potential of being combinational l...
please answer the following?
used 2. (10 points) Design a sequential circuit, which has the potential of being combinational lock" if the number of inputs is expanded. The circuit has four inputs, labelet as reset, codeo, codel, and code2, and one output, labeled as match. Binary bits are coming to the four inputs sequentially, one bit at a time for each clock cycle. After reset - 1 for one clock cycle, the circuit searches for the first occurrence of the...
2. Design a combinational logic circuit with three inputs x, y, and z, and three outputs...
2. Design a combinational logic circuit with three inputs x, y, and z, and three outputs A, B, and C. When the binary input value is 0, 1, 2, or 3, the binary output value is 2 greater than the input, i.e. (ABC) = (xyz) + 2. Otherwise, the binary output value is 3 less than the input, i.e. (ABC) = (xyz) – 3.
Design a combinational circuit with three inputs, x, y, z, and three outputs, A, B, C....
Design a combinational circuit with three inputs, x, y, z, and three outputs, A, B, C. When the binary input is 0, 1, 2, or 3, the binary output is one greater than the input. When the binary input is 4, 5, 6, or 7, the binary output is two less than the input.
Design a combinational circuit that adds 1 to 3-bit unsigned binary number and produces an unsigned...
Design a combinational circuit that adds 1 to 3-bit unsigned binary number and produces an unsigned binary result. Do the following: (1) determine the number of inputs/outputs, (2) write the truth table, (3) simplify the output functions by using maps and (4) draw the logic diagram by using AND OR and NOT gates. Show the truth table, the map, and the logic diagram. Do NOT use adders.
3. Design a combinational circuit with inputs a, b, c, d and outputs w, z, y, z, where the input ...
1- Please answer all the question
2- with clear handwriting
Thank you,
3. Design a combinational circuit with inputs a, b, c, d and outputs w, z, y, z, where the input and output both represent a signed numbers (2s complement). The output is 7 less than the input, if the input is positive, or zero. If the input is negative, the output is 3 greater than the input. 7. Use the Boolean functions developed in problem #3 to create...
Design a combinational circuit with three inputs, x , y, and z, and three outputs, A,...
Design a combinational circuit with three inputs, x , y, and z, and three outputs, A, B , and C . When the binary input is 0, 1, 2, or 3, the binary output is one greater than the input. When the binary input is 4, 5, 6, or 7, the binary output is two less than the input. 1) Truth table 2) Logic circuit 3) Boolean function of A using minterms ( use Boolean algebra) 4) Boolean function of...
a. Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B,C and D using CMOS...
a. Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B,C and D using CMOS transistors. When the binary input is 0, 1, 2,3, 4, 5, 6 or 7 the binary output is three greater than the input. When the binary input is 8,10,11,12,13,14 or 15 the binary output is five less than the input. b. Draw the mask layout with Ln Lp 0.6 um, Wn- 4.8 um and Wp- 9.6 um...
a. Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B,C and D using CMOS...
a. Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B,C and D using CMOS transistors. When the binary input is 0, 1, 2,3, 4, 5, 6 or 7 the binary output is three greater than the input. When the binary input is 8,10,11,12,13,14 or 15 the binary output is five less than the input. b. Draw the mask layout with Ln Lp 0.6 um, Wn- 4.8 um and Wp- 9.6 um...
Design a combinational circuit which inputs a three-bit binary number, and outputs the input number PLUS...
Design a combinational circuit which inputs a three-bit binary number, and outputs the input number PLUS two if the input is less then or equal to 3, and outputs the minus two if the input is greater than 3. This should include the truth table for the operation, the karnaugh map(s), and the resulting circuit.
Using all D flip-flops and combinational logic (AND/OR/NOT gates only) b) using all T flip-flop...
using all D flip-flops and combinational logic (AND/OR/NOT gates
only)
b) using all T flip-flops and a multiplexer of size 8:1
Problem 3: (10 pts) Design a synchronous machine (Transition Table, K-maps, Final Equations, Circuit Diagram) that counts through the following sequence in the order shown below. Note, there are no inputs or output variables, so your Q values must reflect the Hex value listed B 74 2 D9 3 0 and repeat a) using all D flip-flops and combinational...
please answer the following?
used 2. (10 points) Design a sequential circuit, which has the potential of being combinational lock" if the number of inputs is expanded. The circuit has four inputs, labelet as reset, codeo, codel, and code2, and one output, labeled as match. Binary bits are coming to the four inputs sequentially, one bit at a time for each clock cycle. After reset - 1 for one clock cycle, the circuit searches for the first occurrence of the...
2. Design a combinational logic circuit with three inputs x, y, and z, and three outputs A, B, and C. When the binary input value is 0, 1, 2, or 3, the binary output value is 2 greater than the input, i.e. (ABC) = (xyz) + 2. Otherwise, the binary output value is 3 less than the input, i.e. (ABC) = (xyz) – 3.
Design a combinational circuit that adds 1 to 3-bit unsigned binary number and produces an unsigned binary result. Do the following: (1) determine the number of inputs/outputs, (2) write the truth table, (3) simplify the output functions by using maps and (4) draw the logic diagram by using AND OR and NOT gates. Show the truth table, the map, and the logic diagram. Do NOT use adders.
1- Please answer all the question
2- with clear handwriting
Thank you,
3. Design a combinational circuit with inputs a, b, c, d and outputs w, z, y, z, where the input and output both represent a signed numbers (2s complement). The output is 7 less than the input, if the input is positive, or zero. If the input is negative, the output is 3 greater than the input. 7. Use the Boolean functions developed in problem #3 to create...
a. Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B,C and D using CMOS transistors. When the binary input is 0, 1, 2,3, 4, 5, 6 or 7 the binary output is three greater than the input. When the binary input is 8,10,11,12,13,14 or 15 the binary output is five less than the input. b. Draw the mask layout with Ln Lp 0.6 um, Wn- 4.8 um and Wp- 9.6 um...
a. Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B,C and D using CMOS transistors. When the binary input is 0, 1, 2,3, 4, 5, 6 or 7 the binary output is three greater than the input. When the binary input is 8,10,11,12,13,14 or 15 the binary output is five less than the input. b. Draw the mask layout with Ln Lp 0.6 um, Wn- 4.8 um and Wp- 9.6 um...
using all D flip-flops and combinational logic (AND/OR/NOT gates
only)
b) using all T flip-flops and a multiplexer of size 8:1
Problem 3: (10 pts) Design a synchronous machine (Transition Table, K-maps, Final Equations, Circuit Diagram) that counts through the following sequence in the order shown below. Note, there are no inputs or output variables, so your Q values must reflect the Hex value listed B 74 2 D9 3 0 and repeat a) using all D flip-flops and combinational...
