using all D flip-flops and combinational logic (AND/OR/NOT gates only)
b) using all T flip-flops and a multiplexer of size 8:1






Using all D flip-flops and combinational logic (AND/OR/NOT gates only) b) using all T flip-flop...

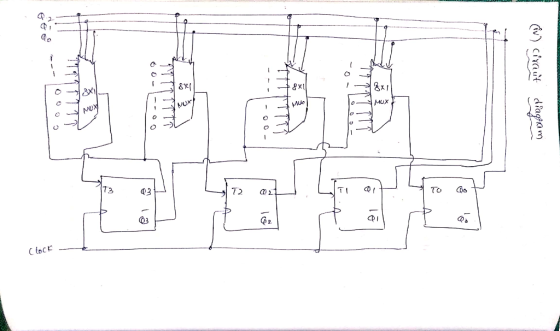

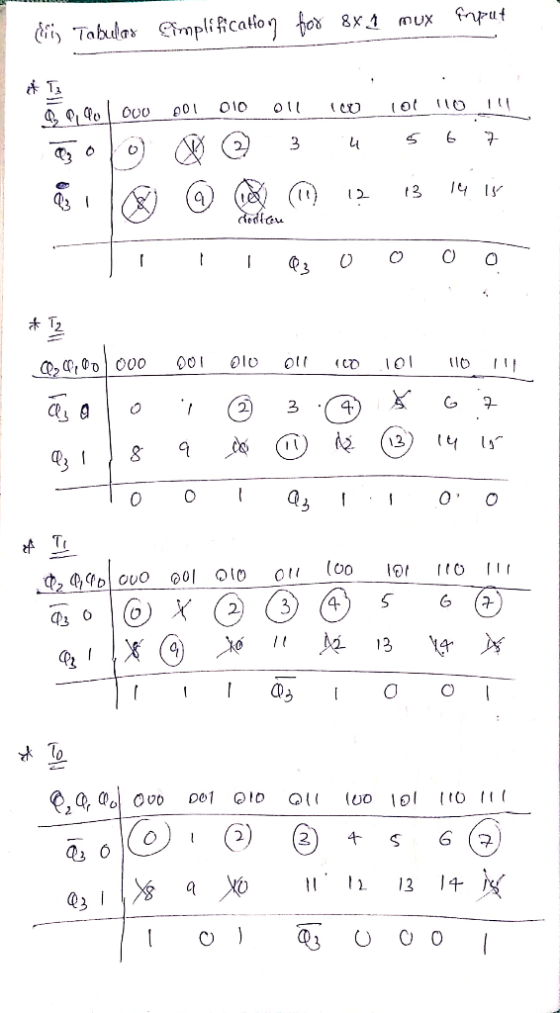

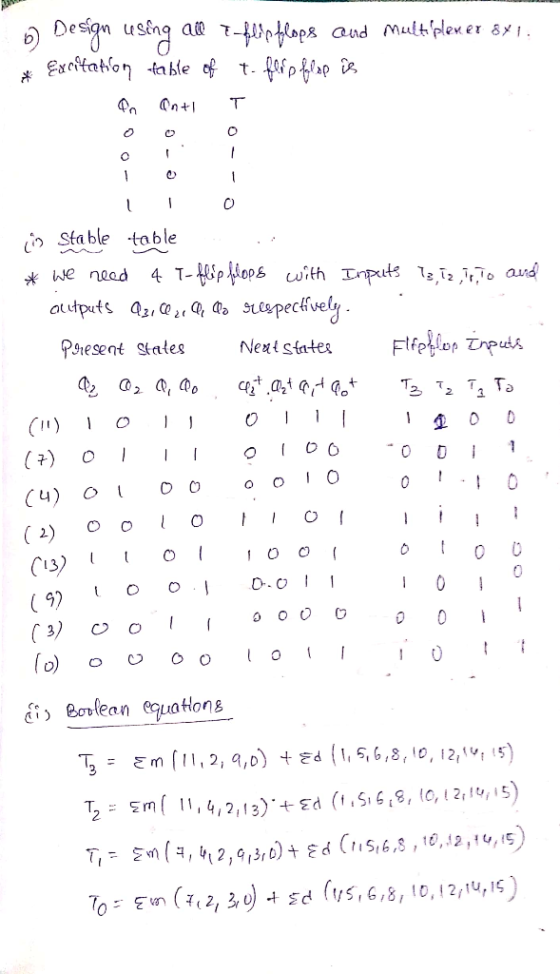

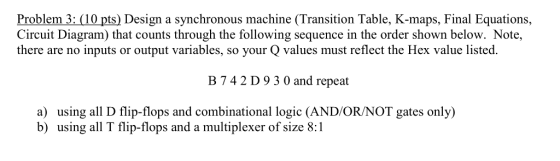

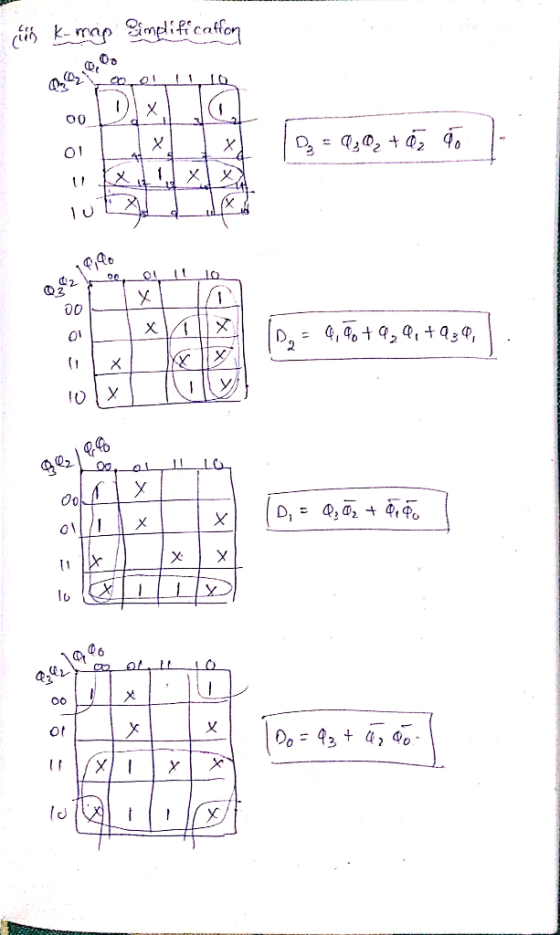

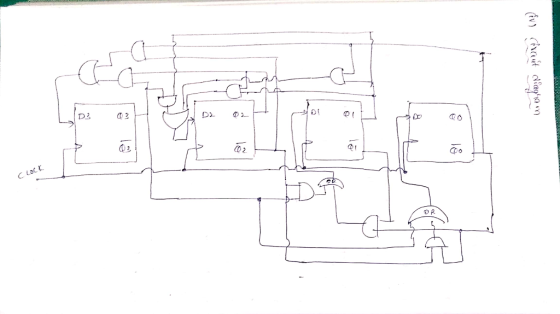

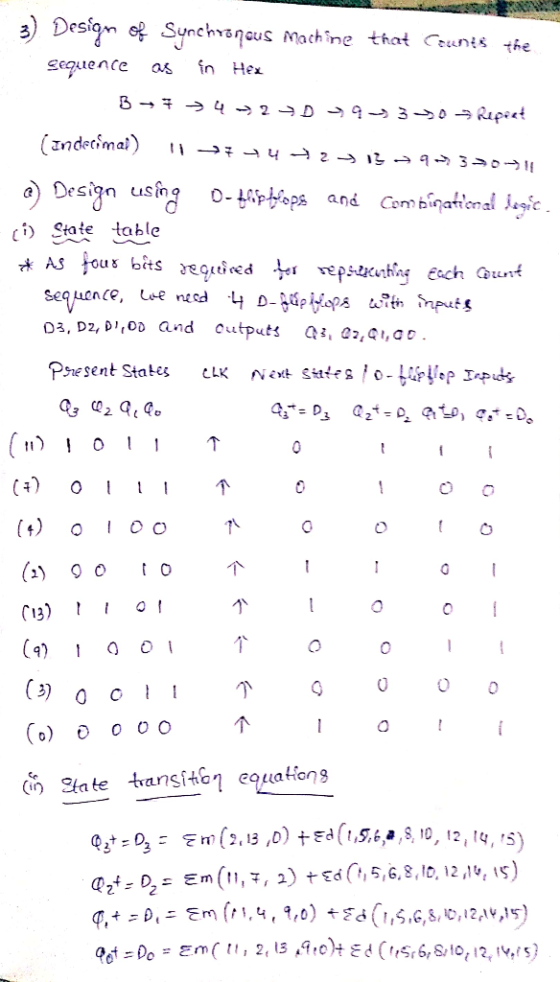

Problem 3:(10 pts) Design a synchronous machine (Transition Table, K-maps, Final Equations, Circuit Diagram) that counts through the following sequence in the order shown below. Note, there are no inputs or output variables, so your Q values must reflect the Hex value listed B 742 D 9 3 0 and repeat a) using all D flip-flops and combinational logic (AND/OR/NOT gates only) b) using all T flip-flops and a multiplexer of size 8:1
Problem 3:(10 pts) Design a synchronous machine...
I NEED HELP WITH FLIP FLOPS Flip-flop type JK Design a JK flip flop using only logic gates .Fill the truth table exercising all possible combinations of inputs for J and K Flip-flop type D Set the JK type flip flop from the previous step to work as a flip flop type D. Fill the truth table by exercising all combinations of possible entries D Flip-flop type T Set the circuit of the previous step to work as a flip...
Show how a D flip-flop can be constructed using a T flip-flop and other logic gates. Provide the circuit, characteristic table and a timing diagram to demonstrate the operation (generate your own inputs).
Design a positive-edge T flip-flop using a positive-edge-triggered D flip-flop and other logic gates.
Please show the following D flip flop using logic gates. Keep in
mind there should only be one output Q.
Clock
Required to construct counters using synchronous sequential logic. Use one hex digit to display the result. ONLY AND/OR/NOT/XOR gates and flip flops allowed.BCD counters count from 0 to 9. LOGISIM - not code 1. A 4-bit binary BCD counter with T flip flops WITH enable if possible please use Logisim to build it and answer with picture of how its made.
(a) Design an asynchronous Binary Coded Decimal (BCD) count-up counter using JK flip-flops. Draw the counter circuit clearly showing the configuration of the JK flip-flops and the necessary logic gate(s). Sketch the input and output waveforms of this counter (7 Marks) (b) The binary up/down counter for a cargo lift controller in a 7-storey building has an up-down (UID) control input and a buzzer output (B). The buzzer will sound B 1) when the lift is at level 1 or...
all witworDFFs, FFI and FFo, two 4xI multiplexers, four 2-bit registers (Ro, RI, R2, and R3; all I with p arallel outputs) and no additional logic gates, design a circuit to support the following operations based on 2-bit inputs M1 and MO M1 MO values Operation (at the rising edge of the clock) RO FF1 FFO (bits of RO stored in FF1&FFO IFF1 FFO (bits of R1 stored in FF1&FFO R2 FF1 FFO (bits of R2 stored in FFI &FFO...
PROBLEM 3 (16 PTS) ▪ With a D
flip flop and logic gates, sketch the circuit whose excitation
equation is given by:
PROBLEM 3 (16 PTS) • With a D flip flop and logic gates, sketch the circuit whose excitation equation is given by: Qit+1) + y + Q(t) + y(t) (4 pts) • Complete the timing diagram of the circuit whose VHDL description is shown below. Also, get the excitation equation for q. library ieee: elsaf (cll'event and clk...
Question 2: Combinational Logic (15 points) Implement the following Boolean function Z(A,B,C,D) = {(1,2,5,7,8,10,11,13,15) 2.1 (5 points) Write the truth table for Z. 2.2 (5 points) Implement Z using a single 16:1 multiplexer. Make sure that you mark all inputs and outputs clearly. 2.3 (5 points) Implement Z using an 8:1 multiplexer and all necessary gates. Make sure that you mark all inputs and outputs clearly.
