Problem 3:(10 pts) Design a synchronous machine (Transition Table, K-maps, Final Equations, Circu...
Using all D flip-flops and combinational logic (AND/OR/NOT gates only) b) using all T flip-flop...
using all D flip-flops and combinational logic (AND/OR/NOT gates
only)
b) using all T flip-flops and a multiplexer of size 8:1

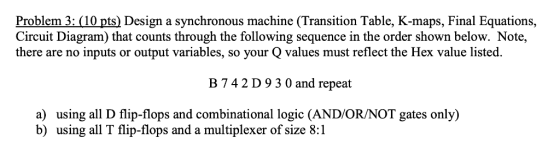

Problem 3: (10 pts) Design a synchronous machine (Transition Table, K-maps, Final Equations, Circuit Diagram) that counts through the following sequence in the order shown below. Note, there are no inputs or output variables, so your Q values must reflect the Hex value listed B 74 2 D9 3 0 and repeat a) using all D flip-flops and combinational...
design 4-bit synchronous up counter using JK flip flop. show truth table, k-maps, and circuit digram...
design 4-bit synchronous up counter using JK flip flop. show truth table, k-maps, and circuit digram using logic gates.
Design a clocked synchronous counter with output sequence:
Design a clocked synchronous counter with output sequence: 1, 3, 5,7, 9,11, 13, 15, 14, 12, 10,8, 6,4, 2, 0, 1,.. using Enabled D Flip-Flops. Show the characteristic and excitation equations of the Flip-Flops, as well as the state-transition table and the logic diagram of the counter.
Design a synchronous counter that counts up 0, 1, 2, 3, 0, 1, 2, 3, ......
Design a synchronous counter that counts up 0, 1, 2, 3, 0, 1, 2, 3, ... when an input x = 1, and down when x = 0 using (a) D flip-flops. (b) J-K flip-flops. You need to show the state definition table, the state transition diagram, the state transition table, the K-maps for the respective logic functions and the schematic of the implementation using flipflops and logic gates in (a) as well as the K-maps for the logic functions...
Redesign the Mealy Vending Machine (from the class lecture notes), to include an output for provi...
Redesign the Mealy Vending
Machine (from the class lecture notes), to include an output for
providing “Change” if more than 15 cents is received instead of
giving credit, using only D flip flops and combinational logic.
Extra Credit Problem 6: 10 pts)_Redesign the Mealy Vending Machine (from the class lecture notes), to include an output for providing "Change" if more than 15 cents is received instead of giving credit, using only D flip flops and combinational logic. Binary (1, Q0)...
Design a synchronous counter using 3 Flip Flops(D and JK FFs) (1 3 6 5) and loops endless. Show K-Maps Design.
Design a synchronous counter using 3 Flip Flops(D and JK FFs) (1 3 6 5) and loops endless. Show K-Maps Design.
14. Design a cyclic counter that produces the binary sequence 0, 2, 3,1. o..if the control signal...
14?
14. Design a cyclic counter that produces the binary sequence 0, 2, 3,1. o..if the control signal X is 0 but produces the binary sequence 0, 1,3,2.0, if the control signal X is1.Use D flip-flops. (a) Draw the state diagram; (6 points (b) Draw the input, present state-next state, excitation table: (6 points) (c) Derive the minimal SOP expressions for the D inputs of the flip-flops using K-maps. Draw the logic circuit realization of the counter, using only NAND...
Design a state machine that implements the following description: Let’s design a simple controller for an...
Design a state machine that implements the following description: Let’s design a simple controller for an elevator. The elevator can be at one of two floors: first or second. There is a button that controls the elevator (one input), and it has two values: up or down. Also, there are two lights in the elevator that indicate the current floor: blue for first, and yellow for second. At each time step, the controller checks the current floor and current input...
Design a counter that counts in the sequence assigned to you. 000, 011, 101, 111, 010,...
Design a counter that counts in the sequence assigned to you. 000, 011, 101, 111, 010, 110, (repeat) 000, ... Use D flip-flops, NAND gates, and inverters. Draw your circuit explicitly showing all connections to gate and flip-flop inputs. Explicitly means that you should draw in all wires, don’t just label the inputs and outputs. Show switches connected to the Preset and Clear inputs of the flip-flops. Use one switch for all clears and a separate switch for each preset....
Its logic design my sequence is 127605 i need help with all this pages please and thank you
Its logic design
my sequence is 127605
i need help with all this pages please and thank you
27 60 Experiment 4 Six-State Up-Down Counter 1 Objective To become familiar with the design procedures of a counter, which are applicable to the design of other synchronous sequential circuits. 2 Problem description A six-state up-down counter is to be designed. Three flip-flops with outputs Q2,Qi and Qo are required in the design. As shown in Figure 1, the counter is initialized...
using all D flip-flops and combinational logic (AND/OR/NOT gates
only)
b) using all T flip-flops and a multiplexer of size 8:1
Problem 3: (10 pts) Design a synchronous machine (Transition Table, K-maps, Final Equations, Circuit Diagram) that counts through the following sequence in the order shown below. Note, there are no inputs or output variables, so your Q values must reflect the Hex value listed B 74 2 D9 3 0 and repeat a) using all D flip-flops and combinational...
Redesign the Mealy Vending
Machine (from the class lecture notes), to include an output for
providing “Change” if more than 15 cents is received instead of
giving credit, using only D flip flops and combinational logic.
Extra Credit Problem 6: 10 pts)_Redesign the Mealy Vending Machine (from the class lecture notes), to include an output for providing "Change" if more than 15 cents is received instead of giving credit, using only D flip flops and combinational logic. Binary (1, Q0)...
14?
14. Design a cyclic counter that produces the binary sequence 0, 2, 3,1. o..if the control signal X is 0 but produces the binary sequence 0, 1,3,2.0, if the control signal X is1.Use D flip-flops. (a) Draw the state diagram; (6 points (b) Draw the input, present state-next state, excitation table: (6 points) (c) Derive the minimal SOP expressions for the D inputs of the flip-flops using K-maps. Draw the logic circuit realization of the counter, using only NAND...
Its logic design
my sequence is 127605
i need help with all this pages please and thank you
27 60 Experiment 4 Six-State Up-Down Counter 1 Objective To become familiar with the design procedures of a counter, which are applicable to the design of other synchronous sequential circuits. 2 Problem description A six-state up-down counter is to be designed. Three flip-flops with outputs Q2,Qi and Qo are required in the design. As shown in Figure 1, the counter is initialized...
