Design a counter that counts in the sequence assigned to you.
000, 011, 101, 111, 010, 110, (repeat) 000, ...

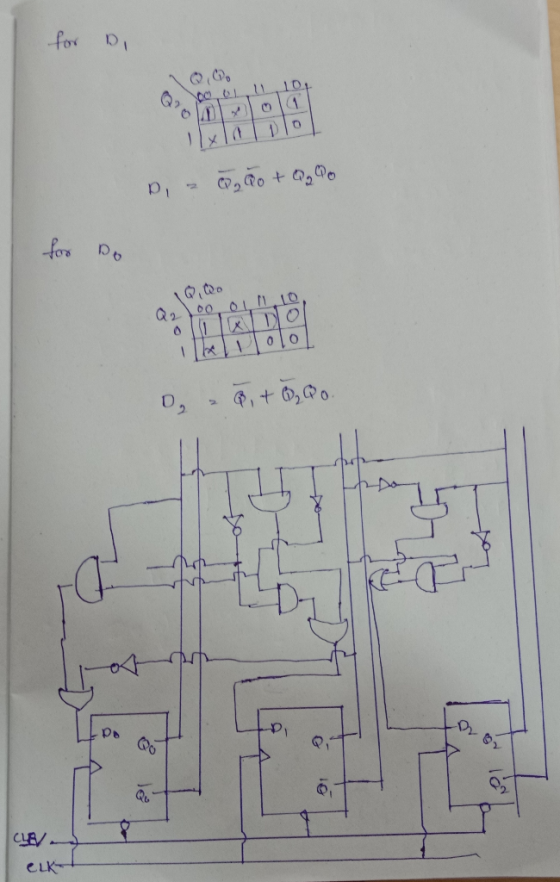

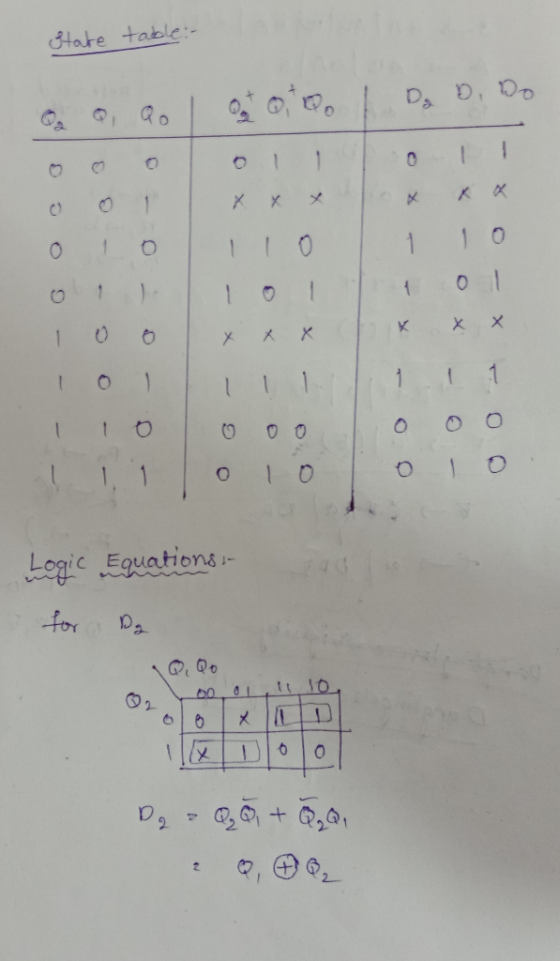

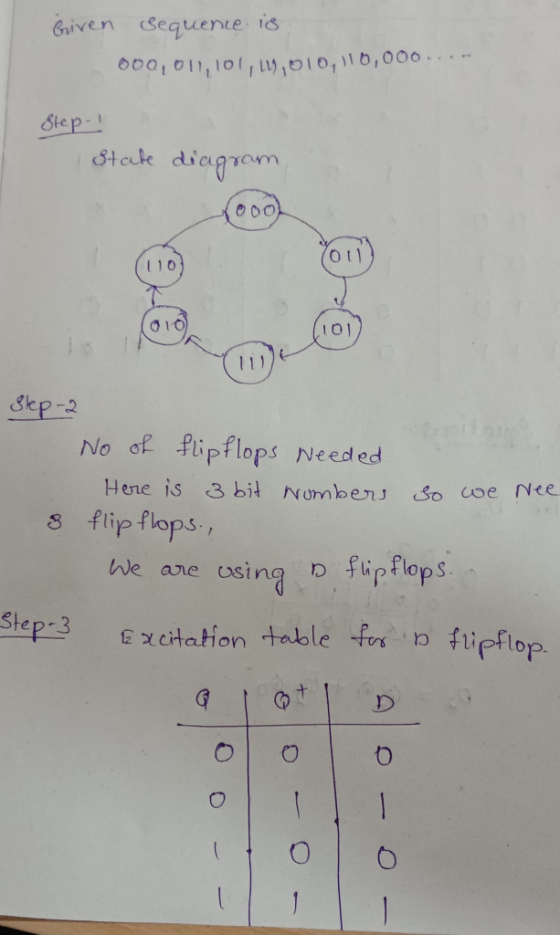

Use D flip-flops, NAND gates, and inverters. Draw your circuit explicitly showing all connections to gate and flip-flop inputs. Explicitly means that you should draw in all wires, don’t just label the inputs and outputs. Show switches connected to the Preset and Clear inputs of the flip-flops. Use one switch for all clears and a separate switch for each preset. Simulate in SimuAid or a hand drawing.
If possible please have all gates facing to the right.
Design a counter that counts in the sequence assigned to you. 000, 011, 101, 111, 010,...
Design a counter that counts in the following sequence: 010, 011, 100, 101, and repeat. Use JK flip-flops in your implementation.
14?
14. Design a cyclic counter that produces the binary sequence 0, 2, 3,1. o..if the control signal X is 0 but produces the binary sequence 0, 1,3,2.0, if the control signal X is1.Use D flip-flops. (a) Draw the state diagram; (6 points (b) Draw the input, present state-next state, excitation table: (6 points) (c) Derive the minimal SOP expressions for the D inputs of the flip-flops using K-maps. Draw the logic circuit realization of the counter, using only NAND...
all please
Design a 3-bit counter that has only one input, w. It counts down 7, 6,5,... 0, 7,.. whenever w-0, and counts up 0,1,2...7,0... when w 1 The output z-1, when the state of the counter is a prime number. Otherwise, z-0 1. List Inputs, Outputs and the count sequence. (5pts) 2. Draw the finite State machine for the counter. (10pts) 3. Draw the state transition table <extra columns for the flip flops values> (20pts) armed resource/content/1/case%20study.template.docx 4. Design...
all witworDFFs, FFI and FFo, two 4xI multiplexers, four 2-bit registers (Ro, RI, R2, and R3; all I with p arallel outputs) and no additional logic gates, design a circuit to support the following operations based on 2-bit inputs M1 and MO M1 MO values Operation (at the rising edge of the clock) RO FF1 FFO (bits of RO stored in FF1&FFO IFF1 FFO (bits of R1 stored in FF1&FFO R2 FF1 FFO (bits of R2 stored in FFI &FFO...
please help question 2
2. Design a half-adder with the constraint that you can only use NAND and NOR gates. The circuit inputs are two bits I and y and the outputs are the sum bit s and carry bit c. Draw a circuit diagram and label each input and output. 3. The digital circuit below contains a latch and two flip-flops. Use the wave forms provided to find Qa. Qb, and Qe. Assume that all three states have initial...
Design a counter with T flip-flops that goes through the following repeated sequence: 0, 1, 3, 7, 6, 4, 0, 1, 3, ... Treat unused states 010 and 101 as don’t care conditions, i.e. we don’t care what their next states are. (First create truth table and minimize using K-Map, and finally draw the final logic diagram.
Design a circuit with three inputs (A, B, C) and two outputs (F1, F2). The first output F1 is 1 when the binary input is 2, 3, 4, 7, otherwise the first output F1 is logic 0. The second output F2 is 1 when the input variables have more l's than 0's. The output is 0 otherwise. Input/ Output ABC F1 F2 000 001 010 011 100 101 a. Derive the truth-table for F1 and F2 as a function of...
Design a circuit with three inputs (A, B, C) and two outputs (F1, F2). The first output F1 is logic 1 if the number of l’s in the binary number is less than the number of O's, otherwise F1 is logic 0. The second output F2 is 1 if the binary input is 2, 4, 5, 6,7 otherwise the second output F2 is logic 0. a. Derive the truth-table for F1 and F2 as a function of the 3 inputs....
**ONLY C&D PLEASE!**
(100 points) You are asked to design a "HELLO" circuit in this question. The inputs of the circuit are three bits x, y and z. The outputs are seven bits a, b, c, d, e, f and g controlling a 7-segment display (see Fig. 2.63(a)). For the 7-segment display, a segment is turned on when the corresponding control signal is 1. The "HELLO" circuit outputs the control signals to display the letter "H", "E", "L", "L", "O"...
1) Based on the sequential circuit and answer the following questions SOV a) Write equations for J, K, T, and Z in terms of the input X and the current state given by flip flop outputs QA, QB b) Based on these equations and the properties of JK and Toggle FF's fill out the state table CURRENT NEVT STATE OUTPUT QA QB X- O X=1 X-OX=1 QAQB QAQB 0 0 STATE NEXT STATE OUTPUT c) Based on the State table...
