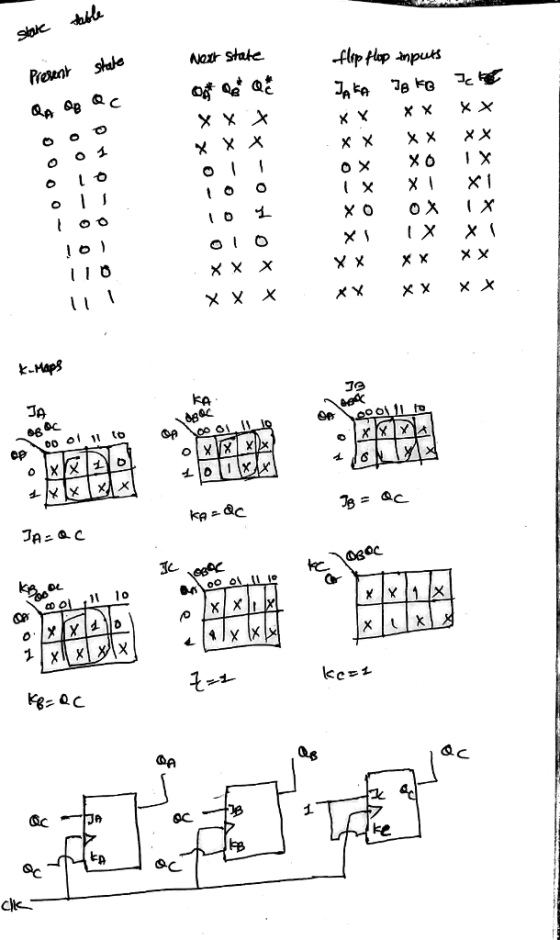

Design a counter that counts in the following sequence: 010, 011, 100, 101, and repeat. Use JK flip-flops in your implementation.

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

Use D flip-flops to design a 3-bit counter

Use D flip-flops to design a 3-bit counter which counts in the sequence: 110, 100, 101, 111, 011, 010, 001, (repeat) 110, . . . In this case, what will happen if the counter is started in state 000?
Design a counter that counts in the sequence assigned to you. 000, 011, 101, 111, 010,...

Design a counter that counts in the sequence assigned to you. 000, 011, 101, 111, 010, 110, (repeat) 000, ... Use D flip-flops, NAND gates, and inverters. Draw your circuit explicitly showing all connections to gate and flip-flop inputs. Explicitly means that you should draw in all wires, don’t just label the inputs and outputs. Show switches connected to the Preset and Clear inputs of the flip-flops. Use one switch for all clears and a separate switch for each preset....
(4 pts) Write a behavioral Verilog module to implement a counter that counts in the following seq...

Verilog! NOT VHDL Please (4 pts) Write a behavioral Verilog module to implement a counter that counts in the following sequence: 000, 010, 100, 110, 001, 011, 101, 111, (repeat) 000, etc. Use a ROM and D flip-flops. Create a test bench for your counter design and run functional simulation in ModelSim. (4 pts) Write a behavioral Verilog module to implement a counter that counts in the following sequence: 000, 010, 100, 110, 001, 011, 101, 111, (repeat) 000, etc....

A counter to display the following sequence: 4,5,3,6, flip-flops in your design. Display the outp...

a counter to display the following sequence: 4,5,3,6, flip-flops in your design. Display the output using a 7-segment display. 1. Design 2, 7, 1, 0, and then repeat. Use JK a counter to display the following sequence: 4,5,3,6, flip-flops in your design. Display the output using a 7-segment display. 1. Design 2, 7, 1, 0, and then repeat. Use JK
Design a counter circuit with sequence 0, 1, 2, …, 11 and repeat using JK flip-flops....

Design a counter circuit with sequence 0, 1, 2, …, 11 and repeat using JK flip-flops. Design the circuit with pen and paper and then simulate it using Logisim (justify the input values chosen)
Design a synchronous counter that has the following sequence: 000, 010, 101, 110 and repeat. The...

Design a synchronous counter that has the following sequence: 000, 010, 101, 110 and repeat. The undesired states 001, 011, 100 and 111 must always go to 000 on the next clock pulse.

5) Using minimum possible of JK flip-flops design a counter that counts: 0, 3, 6, 1,...

5) Using minimum possible of JK flip-flops design a counter that counts: 0, 3, 6, 1, 4, 7, 2, 0, ... (repeat). (10 Marks)
Up-Down counter with enable using JK flip-flops: Design, construct and test a 2-bit counter that counts up or down.

Up-Down counter with enable using JK flip-flops: Design, construct and test a 2-bit counter that counts up or down. An enable input E determines whether the counter is on or off. If E = 0, the counter is disabled and remains in the present count even though clock pulses are applied to the flip-flops. If E= 1, the counter in enabled and a second input, x, determines the count direction. If x= 1, the circuit counts up with the sequence...
A counter is designed to go through the sequence : 1,3,5,7,0,2,5,6, repeat, Using JK flip- flops:...

A counter is designed to go through the sequence : 1,3,5,7,0,2,5,6, repeat, Using JK flip- flops: (i) Construct the state table. (ii) Draw the circuit.

9) Using JK flip flops and in the space below, design a synchronous counter that counts...

9) Using JK flip flops and in the space below, design a synchronous counter that counts up from 0 to 5 and recycles to 0. (Positive edge triggered, PRE & CLR active low) Show all connections except the power and ground inputs to the flip flops.
