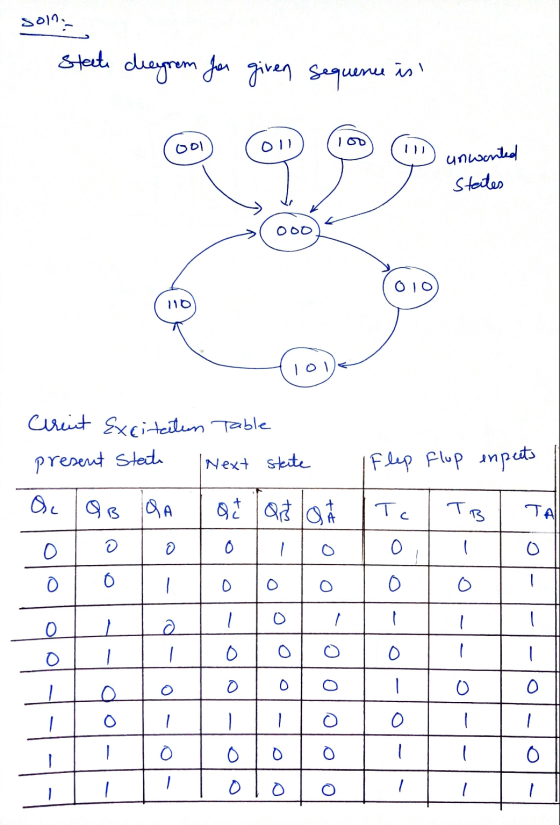

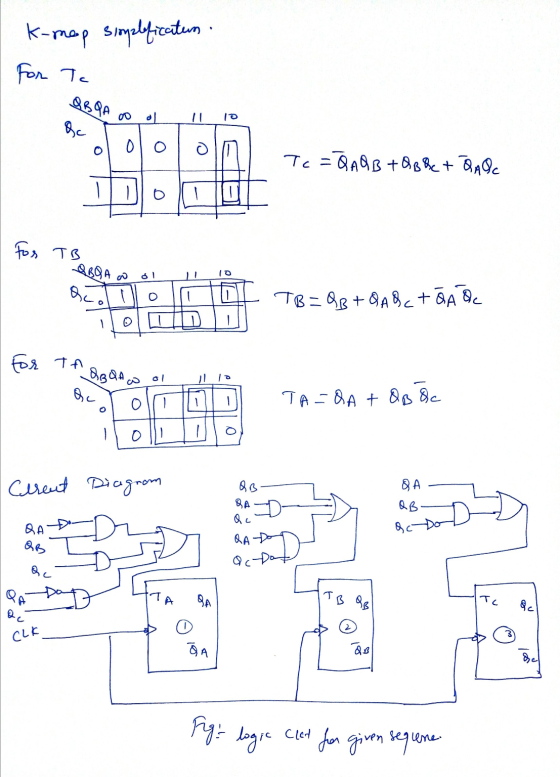

Design a synchronous counter that has the following sequence: 000, 010, 101, 110 and repeat. The undesired states 001, 011, 100 and 111 must always go to 000 on the next clock pulse.
Design a synchronous counter that has the following sequence: 000, 010, 101, 110 and repeat. The...
-Design a synchronous counter using D FFs that has the following sequence: 000, 010, CBA 101, 110, and repeat. The undesired (unused) states must always go to 000 on the next clock pulse. СВА 001 0,1,2 3,4,5 6,7,8,9 100 111
Design a Verilog model that describes the following state diagram. (Test bench and simulation are not required) 1. 01 10 1- 10 10 01 01 10 or 01) 01 Design a Verilog model that describes a synchronous 3 bit counter. The counter has a counting mode control signal (M), when M-o, the counter counts up in the binary sequence, when M- 1, the counter advances through the Gray code sequence. (Test bench and simulation are required to verify the counter...
Use D flip-flops to design a 3-bit counter which counts in the sequence: 110, 100,
101, 111, 011, 010, 001, (repeat) 110, . . .
In this case, what will happen if the counter is started in state 000?
Verilog! NOT VHDL Please
(4 pts) Write a behavioral Verilog module to implement a counter that counts in the following sequence: 000, 010, 100, 110, 001, 011, 101, 111, (repeat) 000, etc. Use a ROM and D flip-flops. Create a test bench for your counter design and run functional simulation in ModelSim.
(4 pts) Write a behavioral Verilog module to implement a counter that counts in the following sequence: 000, 010, 100, 110, 001, 011, 101, 111, (repeat) 000, etc....
Design a 8x4 ROM with the following contents. Address 000 001 010 011 100 101 110 111 ROM Data 0001 0001 0000 0000 0111 0110 1111 0101
Design a counter that counts in the following sequence: 010, 011, 100, 101, and repeat. Use JK flip-flops in your implementation.
Design a counter that counts in the sequence assigned to you. 000, 011, 101, 111, 010, 110, (repeat) 000, ... Use D flip-flops, NAND gates, and inverters. Draw your circuit explicitly showing all connections to gate and flip-flop inputs. Explicitly means that you should draw in all wires, don’t just label the inputs and outputs. Show switches connected to the Preset and Clear inputs of the flip-flops. Use one switch for all clears and a separate switch for each preset....
Can anyone solve this? i dont understand? verilog
1. (30 pts) Design a mod-6 counter. A mod-6 counter updates its output per clock rising edge according to the following sequence: 000, 001, 010, 011, 100, 101 (then repeat the pattern....). en is enable control (synchronous high active), resetn is reset control (asynchronous low active signal to reset counting sequence to 000) Complete the following Verilog code: en module mod6(clock, resetn, en, z); zI2:0] clock resetn Endmodule
C. The task is to create a complex counter that can count in binary or in Gray code, depending on the value of a mode input: "A synchronous 3-bit counter has a mode control input m. When m = 0, the counter steps through the binary sequence 000, 001,010, 011, 100, 101, 110, 111, and repeat. When m = 1, the counter advances through the Gray code sequence 000, 001,011, 010, 110, 111, 101, 100, and repeat. (USE JK FLIP...
Design a Binary Counter with the repeating sequence of 100 - 110 - 111 - 011 - 001 - 000 using T Flip-Flops. Find the input expressions of the T Flip-Flops by K-Map.
