A battery with = 8.00 V and no internal resistance supplies current to the circuit shown...
battery with E = 8.00 V and no internal resistance supplies current to the circuit shown...

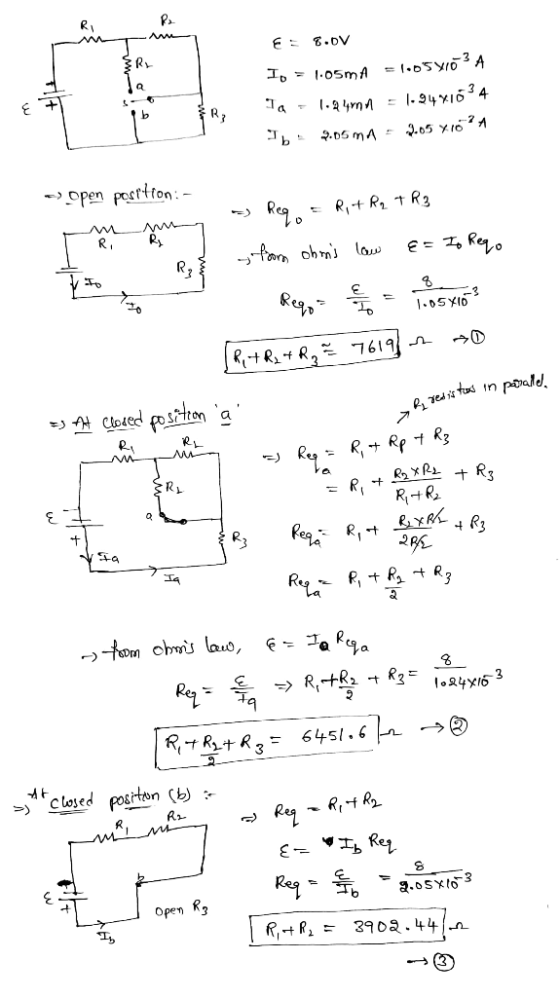

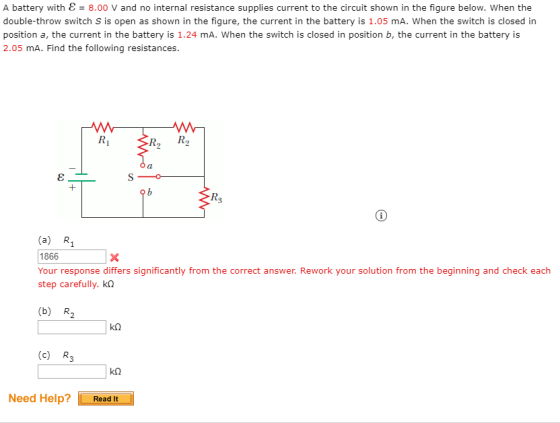

battery with E = 8.00 V and no internal resistance supplies current to the circuit shown in the figure below. When the double-throw switch S is open as shown in the figure, the current in the battery is 1.09 mA. When the switch closed in position a, the current the battery is 1.24 mA. When the switch is closed in position b, the current in the battery is 2.10 mA. Find the following resistances. ŠR, Ry (a) R1 k0 (b)...
A battery with E-3.00 V and no internal resistance supplies current to the circut shown in...
A battery with E-3.00 V and no internal resistance supplies current to the circut shown in the figure below. When the double-throw switch Sis cpen as shown in the figure, the current in the battery is 1.10 MA. When the switch is closed in position a the current in the battery is 1.22 mA. When the switch is closed in position b, the current in the battery is 2.05 mA. Find the following resistances Your response from the correct t...
& 6.00 V b 14. A battery with and no internal resistance supplies current to the...
& 6.00 V b 14. A battery with and no internal resistance supplies current to the circuit shown in Figure P18.14. When the double-throw switclh S is open as shown in the figure, the current in the battery is 1.00 mA. When the switch is closed in position a, the current in the battery is 1.20 mA. When the switch is closed in position b, the current in the battery is 2.00 mA. Find the resistances (a) R, (b) Re,...
Shown in the circuit below is a V= 10.0 V battery connected with three resistors and...
Shown in the circuit below is a V= 10.0 V battery connected with
three resistors and a switch. The resistances for each resistor are
R1= 10 ohms, R2= 100 ohms, and R3=
1.0 ohms.
B) Calculate the current through each resistor when the switch
is closed.
A) Calculate the equivalent resistance when 1) the switch is
open and 2) when the switch is closed.
E R, Ion 2 loon R
In the circuit shown in Fig. the battery provides an E = 15 V
In the circuit shown in Fig. the battery provides an E = 15 V, the inductance is L = 0.5 H, and the resistances are R1 = 12Ω and R2 = 9Ω. Initially the switch S is open, and At t = 0, suddenly the switch is closed. At that moment what is the current going through R1 in A?
In the circuit shown below, the emf of the battery is 19.0V, L = 1.20 H,...
In the circuit shown below, the emf of the battery is 19.0V, L = 1.20 H, R1 = R2 = R, and R3 = 2R, where R = 8.00 Ω. Initially, the switch is open. At t is closed 0, the switch Ri (a) What is the time constant of this circuit? 0.09 (b) Determine the current flowing through the inductor at t 3.25 ms. mA (c) How much current flows out of the battery at t 3.25 ms?
In the circuit in the figure, a battery supplies Vemf-23.0 V and R1-8.00 Ω, R2-6.00 Ω,...
In the circuit in the figure, a battery supplies Vemf-23.0 V and R1-8.00 Ω, R2-6.00 Ω, and L-4.00 H. Calculate each of the following a long time after the switch is closed: a) the magnitude of the current flowing out of the battery? 6.708 A emf Computer's answer now shown above. Tries 0/5 b) the magnitude of the current through R1 2.875 A Computer's answer now shown above. Tries 0/5 c) the magnitude of the current through R2 3.833 A...
In the circuit shown in the figure, the battery is ideal, = 12.6 V, L =...
In the circuit shown in the
figure, the battery is ideal, = 12.6 V, L = 11.3 mH, R1 = 11.1 ?,
and R2 = 20.1 ?. The switch has been open for a long time before it
is closed at t = 0. At what rate is the current in the inductor
changing (a) immediately after the switch is closed and (b) when
the current in the battery is 0.530 A? (c) What is the current (in
A) in...
The emfs in the figure below are &z = 5.00 V and E2 = 21.0 V....
The emfs in the figure below are &z = 5.00 V and E2 = 21.0 V. The resistances are R1 = 18.0 , R2 = 32.00, R3 = 45.5 2, and R4 = 59.0 9. Find the magnitude of the current in each resistor when the switch is in the following states. R2 R4 R S R3 (a) open 11 = X Enter a number. differs significantly from the correct answer. Rework your solution from the beginning and check each...
battery with E = 8.00 V and no internal resistance supplies current to the circuit shown in the figure below. When the double-throw switch S is open as shown in the figure, the current in the battery is 1.09 mA. When the switch closed in position a, the current the battery is 1.24 mA. When the switch is closed in position b, the current in the battery is 2.10 mA. Find the following resistances. ŠR, Ry (a) R1 k0 (b)...
A battery with E-3.00 V and no internal resistance supplies current to the circut shown in the figure below. When the double-throw switch Sis cpen as shown in the figure, the current in the battery is 1.10 MA. When the switch is closed in position a the current in the battery is 1.22 mA. When the switch is closed in position b, the current in the battery is 2.05 mA. Find the following resistances Your response from the correct t...
& 6.00 V b 14. A battery with and no internal resistance supplies current to the circuit shown in Figure P18.14. When the double-throw switclh S is open as shown in the figure, the current in the battery is 1.00 mA. When the switch is closed in position a, the current in the battery is 1.20 mA. When the switch is closed in position b, the current in the battery is 2.00 mA. Find the resistances (a) R, (b) Re,...
Shown in the circuit below is a V= 10.0 V battery connected with
three resistors and a switch. The resistances for each resistor are
R1= 10 ohms, R2= 100 ohms, and R3=
1.0 ohms.
B) Calculate the current through each resistor when the switch
is closed.
A) Calculate the equivalent resistance when 1) the switch is
open and 2) when the switch is closed.
E R, Ion 2 loon R
In the circuit shown below, the emf of the battery is 19.0V, L = 1.20 H, R1 = R2 = R, and R3 = 2R, where R = 8.00 Ω. Initially, the switch is open. At t is closed 0, the switch Ri (a) What is the time constant of this circuit? 0.09 (b) Determine the current flowing through the inductor at t 3.25 ms. mA (c) How much current flows out of the battery at t 3.25 ms?
In the circuit in the figure, a battery supplies Vemf-23.0 V and R1-8.00 Ω, R2-6.00 Ω, and L-4.00 H. Calculate each of the following a long time after the switch is closed: a) the magnitude of the current flowing out of the battery? 6.708 A emf Computer's answer now shown above. Tries 0/5 b) the magnitude of the current through R1 2.875 A Computer's answer now shown above. Tries 0/5 c) the magnitude of the current through R2 3.833 A...
In the circuit shown in the
figure, the battery is ideal, = 12.6 V, L = 11.3 mH, R1 = 11.1 ?,
and R2 = 20.1 ?. The switch has been open for a long time before it
is closed at t = 0. At what rate is the current in the inductor
changing (a) immediately after the switch is closed and (b) when
the current in the battery is 0.530 A? (c) What is the current (in
A) in...
The emfs in the figure below are &z = 5.00 V and E2 = 21.0 V. The resistances are R1 = 18.0 , R2 = 32.00, R3 = 45.5 2, and R4 = 59.0 9. Find the magnitude of the current in each resistor when the switch is in the following states. R2 R4 R S R3 (a) open 11 = X Enter a number. differs significantly from the correct answer. Rework your solution from the beginning and check each...
