Shown in the circuit below is a V= 10.0 V battery connected with three resistors and a switch. The resistances for each resistor are R1= 10 ohms, R2= 100 ohms, and R3= 1.0 ohms.
B) Calculate the current through each resistor when the switch is closed.
A) Calculate the equivalent resistance when 1) the switch is
open and 2) when the switch is closed.

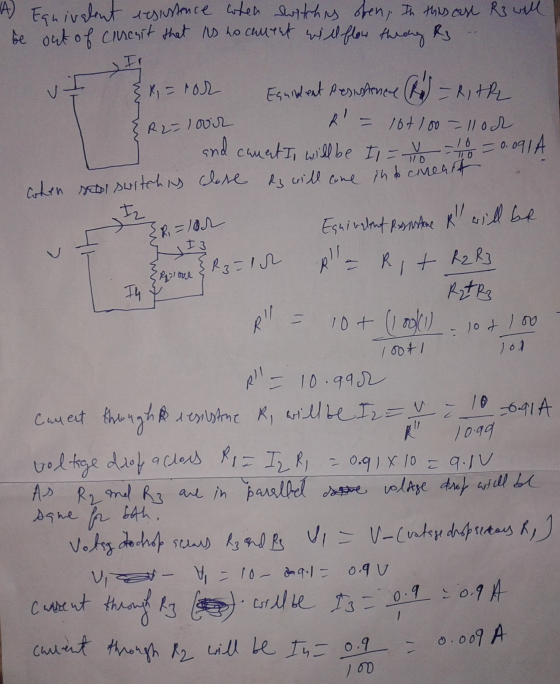

Homework Answers
Add Answer to:
Shown in the circuit below is a V= 10.0 V battery connected with
three resistors and...
2. A set of resistors are connected to a 10.0 V battery as shown in the...
2. A set of resistors are connected to a 10.0 V battery as shown in the figure below. The capacitors have values of R1 = 300 2, R2 = 150 12, R3 = 250, R4 = 100 2 and Rs = 200 22. Determine the value of the following quantities (a) when the switch is open. • the current flowing through each resistor, • the potential drop across each resistor, and • the power dissipated in each resistor. (b) when...
A circuit has three resistors. R2 and R3 are in parallel. This combination is then connected...
A circuit has three resistors. R2 and R3 are in parallel. This combination is then connected in series with resistor R1. It is known that R1=1 ohm, R2= 2 ohms, and R3= 3 ohms. Find the current through R2. The battery has 12 V. Ignore the internal resistance.
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R2? VC HA R VA ++ VB R2 R3 1.0 W 2.0W 5.0 W 6.0 W 7.5 W
Three resistors are connected to an ideal battery (no internal resistance) as shown. The values are:...
Three resistors are connected to an ideal battery (no internal resistance) as shown. The values are: EMF = 19 V R1 = 39 Ohms R2 = 70 Ohms R3 = 66 Ohms What is the total power output by the battery? Hint: You might consider the current through each individual resistor.
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...
The circuit shown in the figure below contains three resistors
(R1, R2, and R3) and three
batteries (VA, VB, and VC). The
resistor values are: R1=2 Ohms,
R2=R3=6 Ohms, and the battery voltages are
VA=25 V, VB=15 V, and VC=20 V.
When the circuit is connected, what will be the power dissipated by
R2?
a) 1.0 W
b) 2.0 W
c) 5.0 W
d) 6.0 W
e) 7.5 W
Vc R VA VB R2 { } R3
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, V8, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are Va=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R2? Vc R1 th A VE R2 {} R₃ O 1.0 W O 2.0 w O 5.0W O 6.0 W 7.5 W
Four resistors are connected in a circuit as shown below with a12 V battery.a)...
Four resistors are connected in a circuit as shown below with a
12 V battery.a) What is the equivalent resistance of R2 and
R3?b) What is the equivalent resistance of R2,
R3, and R4?c) What is the equivalent resistance of the entire circuit?d) What is the total current flowing through the circuit?e) What is the voltage and current for each resistor?ResistorVoltageCurrent100 Ohm150 Ohm300 Ohm250 Ohm
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are VA=25V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R22 Vc R + VB 30 R3 1.0 W 2.0 W 5.0 W 6.0 W O 7.5 W
A battery with a voltage of 16.0 V is connected to four resistors in the circuit...
A battery with a voltage of 16.0 V is connected to four resistors in the circuit shown above. The resistors are identical, each having a resistance of 8.00 ohms. What is the equivalent resistance of this set of four resistors? ohms Calculate the current through resistor C. A Which resistor has the most current through it, in this circuit? resistor A resistor B resistor C resistor D they all get equal currents, because the resistors are identical
A circuit is constructed with four resistors, one capacitor, one battery and a switch as shown....
A circuit is constructed with four resistors, one capacitor, one
battery and a switch as shown. The values for the resistors are:
R1
= R2
= 67 ?, R3
= 96 ? and R4
= 77 ?. The capacitance is C = 48 ?F and the battery voltage is V =
24 V.
Consider the circuit above, with R5
= 67 ? in series with the capacitor. Once again, the switch has
been open for a long time when at...
2. A set of resistors are connected to a 10.0 V battery as shown in the figure below. The capacitors have values of R1 = 300 2, R2 = 150 12, R3 = 250, R4 = 100 2 and Rs = 200 22. Determine the value of the following quantities (a) when the switch is open. • the current flowing through each resistor, • the potential drop across each resistor, and • the power dissipated in each resistor. (b) when...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R2? VC HA R VA ++ VB R2 R3 1.0 W 2.0W 5.0 W 6.0 W 7.5 W
The circuit shown in the figure below contains three resistors
(R1, R2, and R3) and three
batteries (VA, VB, and VC). The
resistor values are: R1=2 Ohms,
R2=R3=6 Ohms, and the battery voltages are
VA=25 V, VB=15 V, and VC=20 V.
When the circuit is connected, what will be the power dissipated by
R2?
a) 1.0 W
b) 2.0 W
c) 5.0 W
d) 6.0 W
e) 7.5 W
Vc R VA VB R2 { } R3
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, V8, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are Va=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R2? Vc R1 th A VE R2 {} R₃ O 1.0 W O 2.0 w O 5.0W O 6.0 W 7.5 W
Four resistors are connected in a circuit as shown below with a
12 V battery.a) What is the equivalent resistance of R2 and
R3?b) What is the equivalent resistance of R2,
R3, and R4?c) What is the equivalent resistance of the entire circuit?d) What is the total current flowing through the circuit?e) What is the voltage and current for each resistor?ResistorVoltageCurrent100 Ohm150 Ohm300 Ohm250 Ohm
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are VA=25V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R22 Vc R + VB 30 R3 1.0 W 2.0 W 5.0 W 6.0 W O 7.5 W
A battery with a voltage of 16.0 V is connected to four resistors in the circuit shown above. The resistors are identical, each having a resistance of 8.00 ohms. What is the equivalent resistance of this set of four resistors? ohms Calculate the current through resistor C. A Which resistor has the most current through it, in this circuit? resistor A resistor B resistor C resistor D they all get equal currents, because the resistors are identical
A circuit is constructed with four resistors, one capacitor, one
battery and a switch as shown. The values for the resistors are:
R1
= R2
= 67 ?, R3
= 96 ? and R4
= 77 ?. The capacitance is C = 48 ?F and the battery voltage is V =
24 V.
Consider the circuit above, with R5
= 67 ? in series with the capacitor. Once again, the switch has
been open for a long time when at...
