Four resistors are connected in a circuit as shown below with a12 V battery.a)...

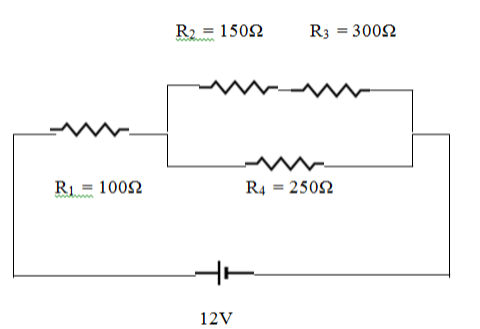

Four resistors are connected in a circuit as shown below with a 12 V battery.
a) What is the equivalent resistance of R2 and R3?
b) What is the equivalent resistance of R2, R3, and R4?
c) What is the equivalent resistance of the entire circuit?
d) What is the total current flowing through the circuit?
e) What is the voltage and current for each resistor?
| Resistor | Voltage | Current |
| 100 Ohm | ||
| 150 Ohm | ||
| 300 Ohm | ||
| 250 Ohm |
Homework Answers

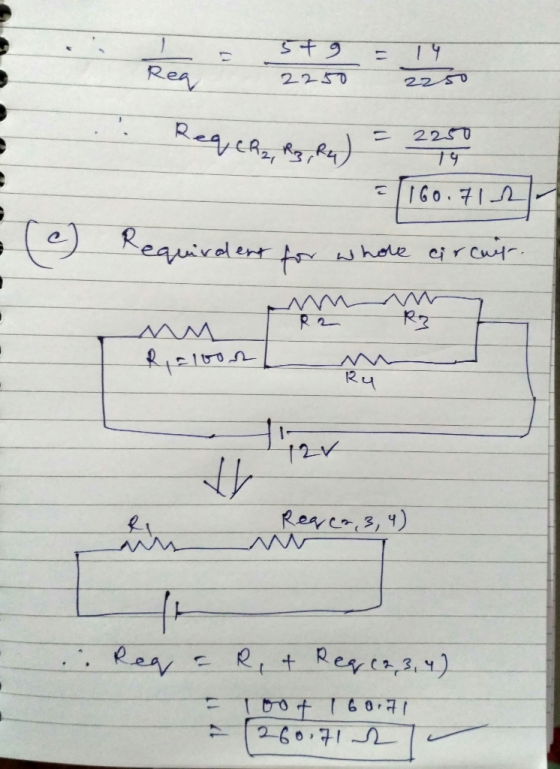

Therefore, the equivalent resistance of the entire
circuit is = 260.71
D) the total current flowing through the circuit = Voltage across the circuit / Equivalent Resistance
= 12 / 260.71
= 0.0460 A
Add Answer to:
Four resistors are connected in a circuit as shown below with a12 V battery.a)...
Consider the electric circuit shown in the figure. Assume that the voltage of the battery is...
Consider the electric circuit shown in the figure. Assume that
the voltage of the battery is V = 23.5 V, and the resistors are
R1 = R2 = R3 = R4 =
R5 = 2.00 Ω.
What is the equivalent resistance of the circuit?
What is the electric current flowing through resistor
R3?
Consider the electri = R4 = R5 = 2.00 2 circuit shown in the figure. Assume that the voltage of the battery is V = 23.5 V,...
2. A set of resistors are connected to a 10.0 V battery as shown in the...
2. A set of resistors are connected to a 10.0 V battery as shown in the figure below. The capacitors have values of R1 = 300 2, R2 = 150 12, R3 = 250, R4 = 100 2 and Rs = 200 22. Determine the value of the following quantities (a) when the switch is open. • the current flowing through each resistor, • the potential drop across each resistor, and • the power dissipated in each resistor. (b) when...
A battery with a voltage of 16.0 V is connected to four resistors in the circuit...
A battery with a voltage of 16.0 V is connected to four resistors in the circuit shown above. The resistors are identical, each having a resistance of 8.00 ohms. What is the equivalent resistance of this set of four resistors? ohms Calculate the current through resistor C. A Which resistor has the most current through it, in this circuit? resistor A resistor B resistor C resistor D they all get equal currents, because the resistors are identical
Four resistors are connected to a battery with a terminal voltage of 12 V, as shown...
Four resistors are connected to a battery with a terminal
voltage of 12 V, as shown in the figure below. (Assume
R1 = 31.0 Ω and R2 = 70.0
Ω.)
(a) How would you reduce the circuit to an equivalent single
resistor connected to the battery? Use this procedure to find the
equivalent resistance of the circuit.
Ω
(b) Find the current delivered by the battery to this equivalent
resistance.
A
(c) Determine the power delivered by the battery.
W...
A circuit is constructed with five resistors and a battery as shown. The values for the...
A circuit is constructed with five resistors and a battery as shown. The values for the resistors are: R1 = R5 = 43 A, R2 = 121 , R3 = 64, and R4 = 1300. The battery voltage is V = 12 V. R1 b 4 Ra R5 1) What is Rab, the equivalent resistance between points a and b? 76.92 Submit 2) What is Rac, the equivalent resistance between points a and c? 119.9 Submit 3) What is 15,...
Shown in the circuit below is a V= 10.0 V battery connected with three resistors and...
Shown in the circuit below is a V= 10.0 V battery connected with
three resistors and a switch. The resistances for each resistor are
R1= 10 ohms, R2= 100 ohms, and R3=
1.0 ohms.
B) Calculate the current through each resistor when the switch
is closed.
A) Calculate the equivalent resistance when 1) the switch is
open and 2) when the switch is closed.
E R, Ion 2 loon R
olumns, and Ry olums are connected to a 12 V battery as shown in the circuit...
olumns, and Ry olums are connected to a 12 V battery as shown in the circuit diagram What is the current (in Three resistors, Ryhms, R Ampere) through R? E n decimal place and don't code the init R2=62 R=32 ww R3=32 12 V Question 4 Dout of 2 points The resistors, R-6 ohms, R o ms, and R33 ohms are connected to a 12.V battery as shown in the circuit diagram What is the voltage is volts) across the...
A circuit is constructed with five resistors and one real battery as shown above right. We...
A circuit is constructed with
five resistors and one real battery as shown above right. We model.
The real battery as an ideal emf V = 12 V in series with an
internal resistance r as shown above left. The values for the
resistors are: R1 = R3 = 22 Ω, R4 = R5 = 82 Ω and R2 = 147 Ω. The
measured voltage across the terminals of the batery is Vbattery =
11.6 V.
A circuit is constructed...
Two identical resistors, R1 and R2, are connected in parallel, and this parallel combination is then...
Two identical resistors, R1 and R2, are
connected in parallel, and this parallel combination is then
connected in series with a 100 Ω resistor, R3 as shown
below
If the total resistance of the circuit is 300 Ω what must be the
resistance of R1 and R2? If the circuit is
connected to a 30V battery, what would the current through
R1? What voltage is a dropped across R3?
100 S
A circuit has three resistors. R2 and R3 are in parallel. This combination is then connected...
A circuit has three resistors. R2 and R3 are in parallel. This combination is then connected in series with resistor R1. It is known that R1=1 ohm, R2= 2 ohms, and R3= 3 ohms. Find the current through R2. The battery has 12 V. Ignore the internal resistance.
Consider the electric circuit shown in the figure. Assume that
the voltage of the battery is V = 23.5 V, and the resistors are
R1 = R2 = R3 = R4 =
R5 = 2.00 Ω.
What is the equivalent resistance of the circuit?
What is the electric current flowing through resistor
R3?
Consider the electri = R4 = R5 = 2.00 2 circuit shown in the figure. Assume that the voltage of the battery is V = 23.5 V,...
2. A set of resistors are connected to a 10.0 V battery as shown in the figure below. The capacitors have values of R1 = 300 2, R2 = 150 12, R3 = 250, R4 = 100 2 and Rs = 200 22. Determine the value of the following quantities (a) when the switch is open. • the current flowing through each resistor, • the potential drop across each resistor, and • the power dissipated in each resistor. (b) when...
A battery with a voltage of 16.0 V is connected to four resistors in the circuit shown above. The resistors are identical, each having a resistance of 8.00 ohms. What is the equivalent resistance of this set of four resistors? ohms Calculate the current through resistor C. A Which resistor has the most current through it, in this circuit? resistor A resistor B resistor C resistor D they all get equal currents, because the resistors are identical
Four resistors are connected to a battery with a terminal
voltage of 12 V, as shown in the figure below. (Assume
R1 = 31.0 Ω and R2 = 70.0
Ω.)
(a) How would you reduce the circuit to an equivalent single
resistor connected to the battery? Use this procedure to find the
equivalent resistance of the circuit.
Ω
(b) Find the current delivered by the battery to this equivalent
resistance.
A
(c) Determine the power delivered by the battery.
W...
A circuit is constructed with five resistors and a battery as shown. The values for the resistors are: R1 = R5 = 43 A, R2 = 121 , R3 = 64, and R4 = 1300. The battery voltage is V = 12 V. R1 b 4 Ra R5 1) What is Rab, the equivalent resistance between points a and b? 76.92 Submit 2) What is Rac, the equivalent resistance between points a and c? 119.9 Submit 3) What is 15,...
Shown in the circuit below is a V= 10.0 V battery connected with
three resistors and a switch. The resistances for each resistor are
R1= 10 ohms, R2= 100 ohms, and R3=
1.0 ohms.
B) Calculate the current through each resistor when the switch
is closed.
A) Calculate the equivalent resistance when 1) the switch is
open and 2) when the switch is closed.
E R, Ion 2 loon R
olumns, and Ry olums are connected to a 12 V battery as shown in the circuit diagram What is the current (in Three resistors, Ryhms, R Ampere) through R? E n decimal place and don't code the init R2=62 R=32 ww R3=32 12 V Question 4 Dout of 2 points The resistors, R-6 ohms, R o ms, and R33 ohms are connected to a 12.V battery as shown in the circuit diagram What is the voltage is volts) across the...
A circuit is constructed with
five resistors and one real battery as shown above right. We model.
The real battery as an ideal emf V = 12 V in series with an
internal resistance r as shown above left. The values for the
resistors are: R1 = R3 = 22 Ω, R4 = R5 = 82 Ω and R2 = 147 Ω. The
measured voltage across the terminals of the batery is Vbattery =
11.6 V.
A circuit is constructed...
Two identical resistors, R1 and R2, are
connected in parallel, and this parallel combination is then
connected in series with a 100 Ω resistor, R3 as shown
below
If the total resistance of the circuit is 300 Ω what must be the
resistance of R1 and R2? If the circuit is
connected to a 30V battery, what would the current through
R1? What voltage is a dropped across R3?
100 S
