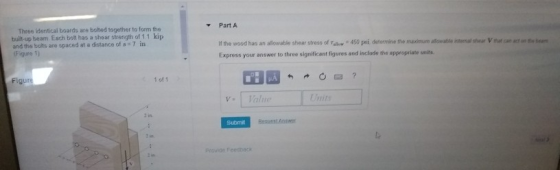

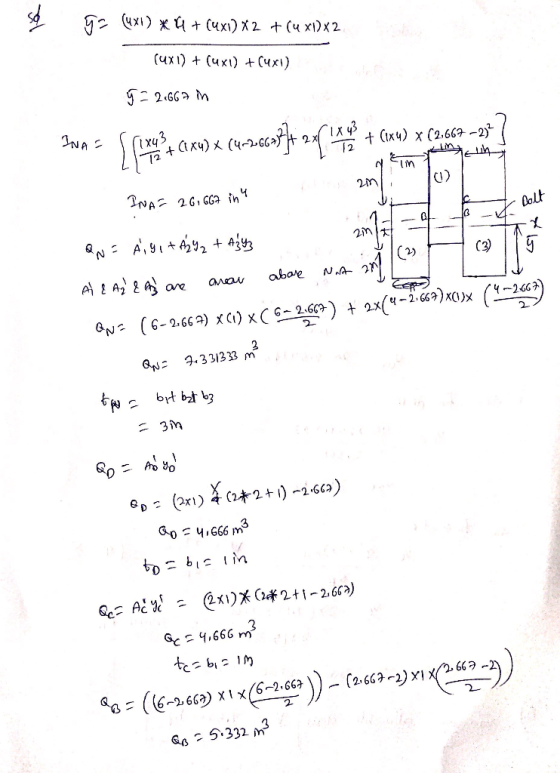

Part A Thres identical boards are bolted together to form the built-up beam. Each bolt has...
ESP 3-6: The simply supported beam is built up from three boards by nailing them together...
ESP 3-6: The simply supported beam is built up from three boards by nailing them together as shown. The wood has an allowable shear stress of Tallow=1.9 MPa, and an allowable bending stress of allow=8.4 MPa. The nails are spaced at s = 75 mm, and each has a shear strength of 1 kN. Determine the maximum allowable force P that can be applied to the beam. А. -1m- 25 mm 25 mm 200 mm 125 mm
The simply supported beam is built up from three boards by nailing them together as shown...
The simply supported beam is built up from three boards by nailing them together as shown B 1 100 mm 25 mm 25 mm- 1 200 mm 25 mm The wood has an allowable shear stress of Tallow = 1.3 MPa and an allowable bending stress of allow = 8 MPa The nails are spaced at s = 75 mm, and each has a shear strength of 1.9 kN. Part A Determine the maximum allowable force P that can be...
Part A A Review The column is built up by gluing the two identical boards together....
Part A A Review The column is built up by gluing the two identical boards together. (Figure 1) If the wood has an allowable normal stress of low = 6.5 MPa, determine the maximum allowable eccentric force P that can be applied to the column Express your answer to three significant figures and include the appropriate units. P. 108,84 KN Submit Previous Answers Request Answer X Incorrect; Try Again; 9 attempts remaining Provide Feedback Next > Figure < 1 of...
50 m Question 3. The hoards are glued together to form the built-up beam. If the...
50 m Question 3. The hoards are glued together to form the built-up beam. If the wood has an allowable shear stress of 3 MPa, and the glue seam at B can withstand a maximum shear stress of 15 MPa determine the maximum allowable internal shear V that 150 nm can be developed in the beam (25 points) 30 mm 50 mm
Please answer all parts to the question. This homework is timed with only 1 hr and...
Please answer all parts to the question. This homework is timed
with only 1 hr and 30 mins to complete. Please box all answers.
Thumbs up for correct answers. Thanks
<Quiz 2 (Chapter 7-9) (10 of 13 Item 10 > The boards are bolted together to form the built-up beam. Each bolt has a shear strength of 7 kip (Figure 1) Part A If the beam is subjected to a shear force of V 14 kip, determine the allowable maximum...
03:03 8,11 61 % a Baca Saja Anda tidak dapat menyimpan p in. in 1 in....
03:03 8,11 61 % a Baca Saja Anda tidak dapat menyimpan p in. in 1 in. Please do problem F12-10 F12-10. The boards are bolted together to form the built-up beam. If the beam is subjected to a shear force of V = 15 kip. determine the allowable maximum spacing of the bolts to the nearest in. Each bolt has a shear strength of 6 kip. 1 in.,0.5 in 0.5 in. 4 in H, 3 in. 0 1 in. 3...
Two boards are nailed together to form a beam. Each board has dimensions of 1.75 inch...
Two boards are nailed together to form a beam. Each board has dimensions of 1.75 inch X 5.75 inch wide. The beam is loaded with an internal shear force of 1000 lb. If the nails are spaced every 4 inches, what is the shear force resisted by each nail?. N A
8–25. The column is built up by gluing the two boards together. If the wood has...
8–25. The column is built up by gluing the two boards together. If the wood has an allowable normal stress of O allow =6 MPa, determine the maximum allowable eccentric force P that can be applied to the column. 150 mm 250 mm 150 mm 75 mm 50 mm 300 mm
Page 7 of 9 Q4. (30%) Composite Beam Three identical wooden beams and two identical steel plates are bolted together to form the composite shown in the sketch. Determine the largest allowable ben...
Page 7 of 9 Q4. (30%) Composite Beam Three identical wooden beams and two identical steel plates are bolted together to form the composite shown in the sketch. Determine the largest allowable bending moment, Malom, when the member is bent about the horizontal axis. Include sketch of transformed area, and list all assumptions and equations. Material/Properties Wood Steel Elastic Modulus 2,900,000 psi 29,000,000 psi Allowable Normal Stress 3,000 psi 18,000 psi 10 in 2.5 in 0.25 in a) Determine n...
Problem #2) Three boards that are glued together to form a single beam whose cross section...
Problem #2) Three boards that are glued together to form a single beam whose cross section is shown below. The moment acting about the z-axis is 1000 ft-lb and the vertical shear force is 400 lb. (20 points) a. Find the vertical centroid of the section, y. b. Find the moment of inertia of the section taken about a horizontal z-axis through the centroid. c. Determine the bending stress the wood must be able to resist assuming compression controls. d....
ESP 3-6: The simply supported beam is built up from three boards by nailing them together as shown. The wood has an allowable shear stress of Tallow=1.9 MPa, and an allowable bending stress of allow=8.4 MPa. The nails are spaced at s = 75 mm, and each has a shear strength of 1 kN. Determine the maximum allowable force P that can be applied to the beam. А. -1m- 25 mm 25 mm 200 mm 125 mm
The simply supported beam is built up from three boards by nailing them together as shown B 1 100 mm 25 mm 25 mm- 1 200 mm 25 mm The wood has an allowable shear stress of Tallow = 1.3 MPa and an allowable bending stress of allow = 8 MPa The nails are spaced at s = 75 mm, and each has a shear strength of 1.9 kN. Part A Determine the maximum allowable force P that can be...
Part A A Review The column is built up by gluing the two identical boards together. (Figure 1) If the wood has an allowable normal stress of low = 6.5 MPa, determine the maximum allowable eccentric force P that can be applied to the column Express your answer to three significant figures and include the appropriate units. P. 108,84 KN Submit Previous Answers Request Answer X Incorrect; Try Again; 9 attempts remaining Provide Feedback Next > Figure < 1 of...
50 m Question 3. The hoards are glued together to form the built-up beam. If the wood has an allowable shear stress of 3 MPa, and the glue seam at B can withstand a maximum shear stress of 15 MPa determine the maximum allowable internal shear V that 150 nm can be developed in the beam (25 points) 30 mm 50 mm
Please answer all parts to the question. This homework is timed
with only 1 hr and 30 mins to complete. Please box all answers.
Thumbs up for correct answers. Thanks
<Quiz 2 (Chapter 7-9) (10 of 13 Item 10 > The boards are bolted together to form the built-up beam. Each bolt has a shear strength of 7 kip (Figure 1) Part A If the beam is subjected to a shear force of V 14 kip, determine the allowable maximum...
03:03 8,11 61 % a Baca Saja Anda tidak dapat menyimpan p in. in 1 in. Please do problem F12-10 F12-10. The boards are bolted together to form the built-up beam. If the beam is subjected to a shear force of V = 15 kip. determine the allowable maximum spacing of the bolts to the nearest in. Each bolt has a shear strength of 6 kip. 1 in.,0.5 in 0.5 in. 4 in H, 3 in. 0 1 in. 3...
Two boards are nailed together to form a beam. Each board has dimensions of 1.75 inch X 5.75 inch wide. The beam is loaded with an internal shear force of 1000 lb. If the nails are spaced every 4 inches, what is the shear force resisted by each nail?. N A
8–25. The column is built up by gluing the two boards together. If the wood has an allowable normal stress of O allow =6 MPa, determine the maximum allowable eccentric force P that can be applied to the column. 150 mm 250 mm 150 mm 75 mm 50 mm 300 mm
Page 7 of 9 Q4. (30%) Composite Beam Three identical wooden beams and two identical steel plates are bolted together to form the composite shown in the sketch. Determine the largest allowable bending moment, Malom, when the member is bent about the horizontal axis. Include sketch of transformed area, and list all assumptions and equations. Material/Properties Wood Steel Elastic Modulus 2,900,000 psi 29,000,000 psi Allowable Normal Stress 3,000 psi 18,000 psi 10 in 2.5 in 0.25 in a) Determine n...
Problem #2) Three boards that are glued together to form a single beam whose cross section is shown below. The moment acting about the z-axis is 1000 ft-lb and the vertical shear force is 400 lb. (20 points) a. Find the vertical centroid of the section, y. b. Find the moment of inertia of the section taken about a horizontal z-axis through the centroid. c. Determine the bending stress the wood must be able to resist assuming compression controls. d....
